Carbon Filters

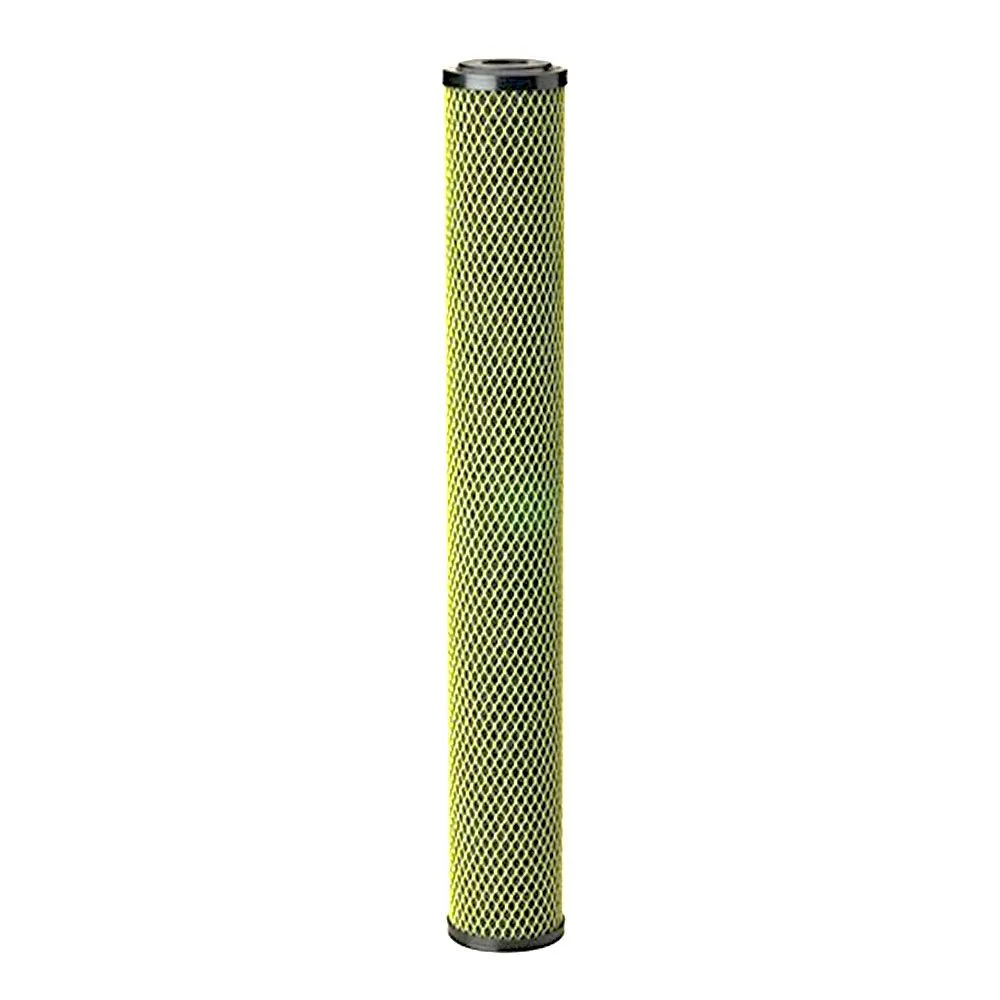

20″ Pentek 255669-43 Activated Carbon / Electroplating 7 Mic Cartridge

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 255669-43

CATEGORY: Carbon Filters

Description

The 20″Pentek 255669-43 (ELPC-20) Carbon/Electroplate Cartridge is a premium activated carbon filter cartridge specifically designed for electroplating solutions. They represent the best technology available in cartridge filtration for use in a wide range of electroplating applications. The unique technology used to manufacture this product ensures that there is no bleeding of carbon fines into the plating bath. In addition, the carbon that is used is an ultra-clean, highly purified carbon to ensure that sulfur is not leached into the plating bath. The fibrous physical structure created by our proprietary Fibredyne technology produces a unique block with true depth filtration capability which allows for maximum treatment with minimal pressure drop through the cartridge.

Features:

7-micron nominal rating with superior dirt-holding ability.
Cellulose-free construction
Resistant to chemical breakdown in both acidic and alkaline solutions up to 180ºF (82ºC)
Integrated post-filtration layer to ensure that no carbon fines are bled into the plating bath
Endcap gaskets are permanently molded on to the endcaps to ease filter cartridge change-out

Specifications:

Filter Media: Bonded PAC
Endcaps: Polypropylene
Netting: Polypropylene
Gaskets: Santoprene
Temperature Rating: 40-180ºF (4.4-82.2ºC)

ELPC cartridges are also available in 10″and 30″

Specifications

Product Details
Gaskets	Santoprene
Initial Pressure Drop	3.4 psi @ 2 gpm PSI Differential
Max Temp (°F)	180 °F
Micron Rating (Nominal)	7 µm
Min Temp (°F)	40 °F
Netting	Polypropylene
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	2-3/4″
End Cap Type	Double Open Ended (DOE)
Filter Type	Carbon Block
Flow Rate	2 GPM
Media Type	Bonded Powdered Activated Carbon (PAC)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	2.75
Product Length	20.125
Product Width	2.75
Product Weight (lbs)	1.25

Product Details
Gaskets	Santoprene
Initial Pressure Drop	3.4 psi @ 2 gpm PSI Differential
Max Temp (°F)	180 °F
Micron Rating (Nominal)	7 µm
Min Temp (°F)	40 °F
Netting	Polypropylene
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6 Months
Contaminants Reduced	Sediment/Dirt/Rust Chlorine/Taste/Odor
Diameter	2-3/4″
End Cap Type	Double Open Ended (DOE)
Filter Type	Carbon Block
Flow Rate	2 GPM
Media Type	Bonded Powdered Activated Carbon (PAC)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	21 in.
Shipping Width	11.75 in.
Shipping Height	14.5 in.
Product Weight & Dimensions
Product Height	14.5
Product Length	21
Product Width	11.75
Product Weight (lbs)	20.983

Product Information

SKU255669-43
CategoryCarbon Filters

20″ Pentek 255669-43 Activated Carbon / Electroplating 7 Mic Cartridge

Specifications

Product Information

Related products

Brightwell Aquatics Carbonit-P, 20.4 kg. / 45 lbs.

Puregen (QGA-25002) 12″ PROQ GAC Filter

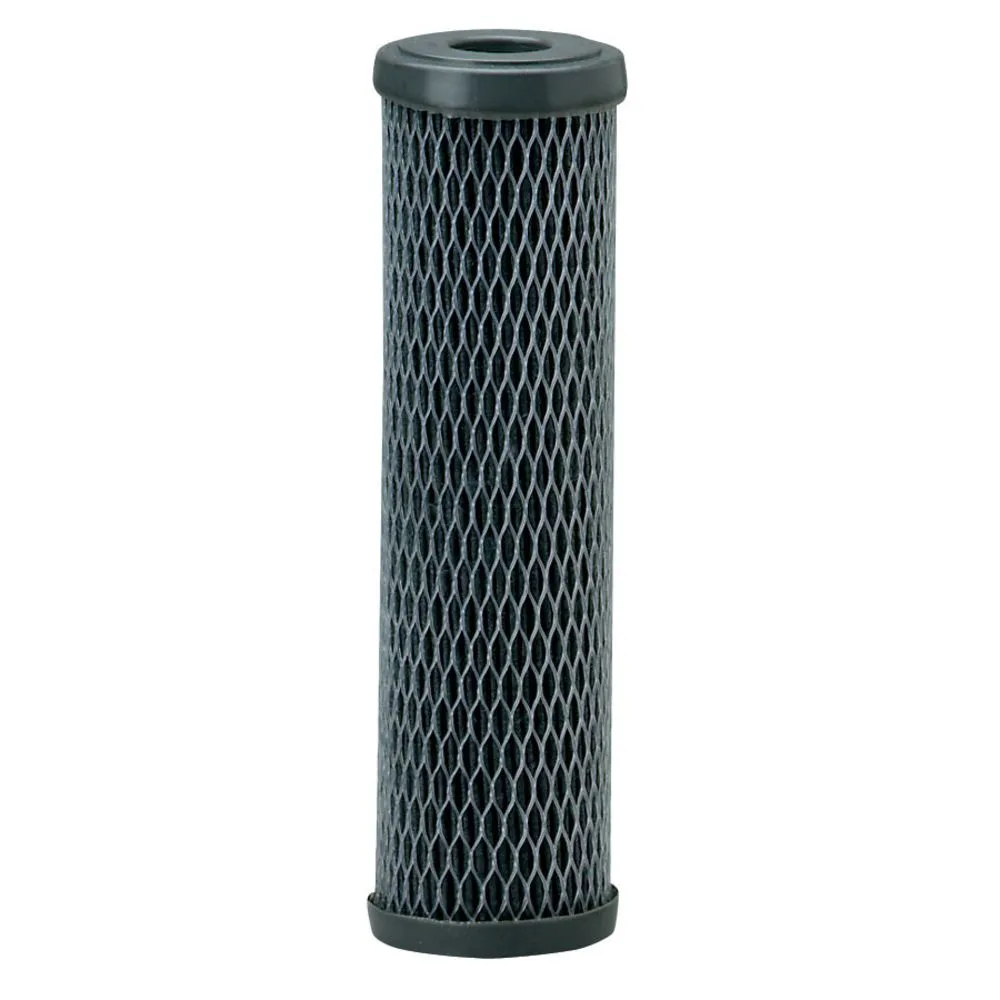

Pentek – GAC-20 – 20″ x 2.5″ Granular Activated Carbon Filter
