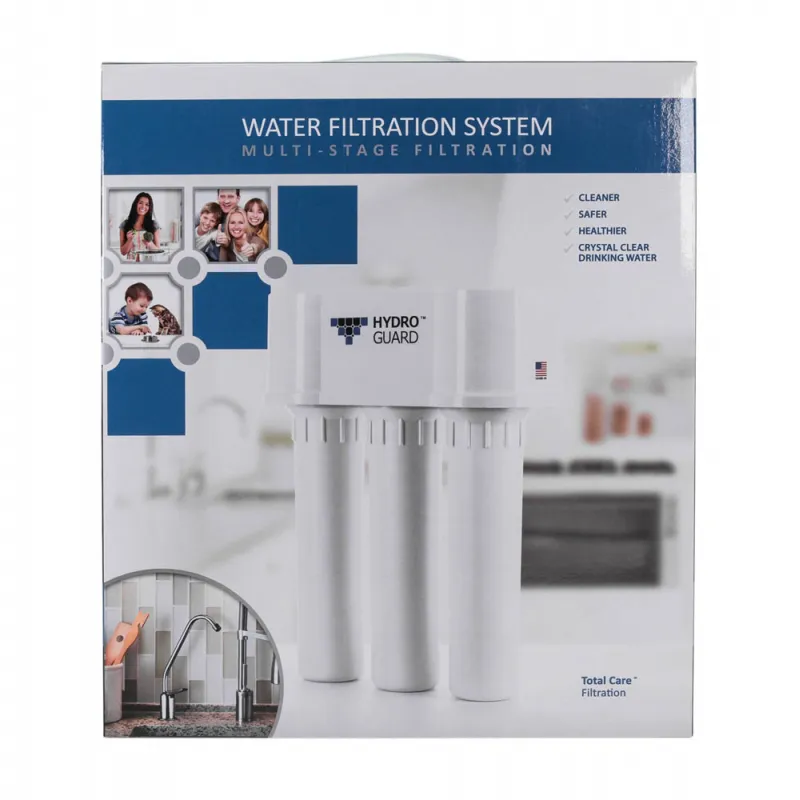

3-Stage Undercounter Drinking Water Purification System, Carbon Block

3-Stage Premium Undercounter Drinking Water System with faucet – Carbon Block with Polishing Post-Filter

Are you sick of wasting money on bottled water? Make your own! This compact undercounter water purification helps you create delicious water for drinking and cooking. The Hydro Guard Total Care Water System is a top quality, high performance water filtration system designed to provide great tasting water and address a broad range of contaminants. The HDG-U3000-MCB incorporates Microban® antimicrobial technology, which inhibits the growth of bacteria which can cause odors and the fouling of the filter surface. Any of the filters in the “HDG” line can be used in this system. Installation is easy and system contains the majority of the material needed for installation. A 1/4″ hole in countertop or sink surround is needed to install the faucet. The hole for the existing soap dispenser can be used for faucet installation.

CARTRIDGE 1
The HDG-SED5 pre-filter is a high performance sediment filter design to give you high dirt-holding capacity, reduce sediment and rust particles, and extend the life of the downstream carbon block filter

CARTRIDGE 2
The HDG-MCB carbon filtter uses advanced carbon block technology to reduce contaminants in the water and is rated at .5 Microns

CARTRIDGE 3
The HDG-CB5P coconut shell carbon filtter is a final “polishing” filter that improves taste and renders a pleasant, fresh taste

FEATURES:

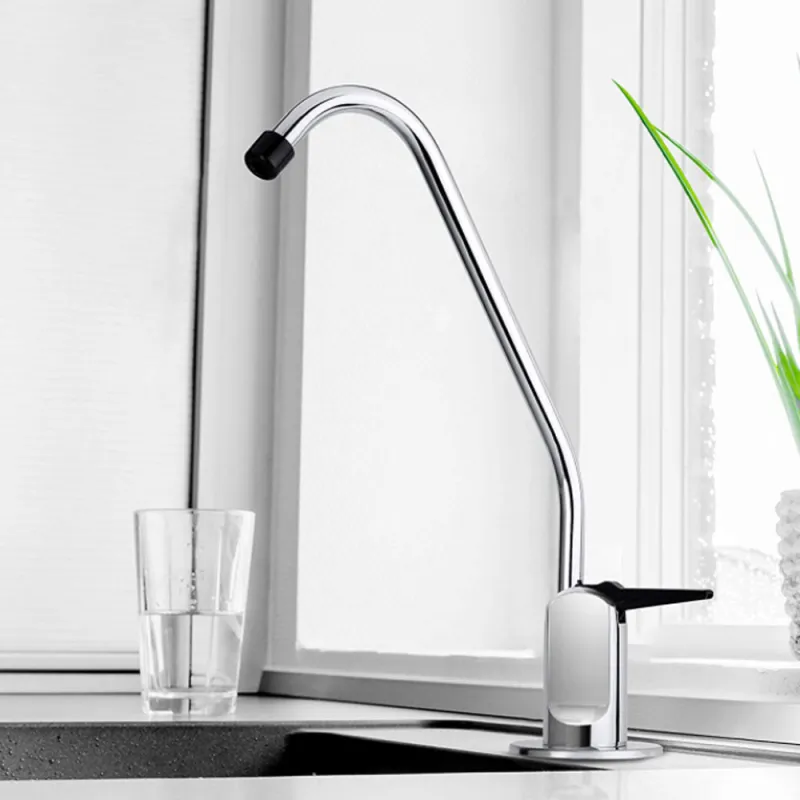

• Includes lead-free chrome faucet
• Includes 3/8″ X 3/8″ X 1/4″ compression feedwater tee adaptor with integral shutoff valve and filter change wrench
• 1/4″ Connection Tubing (2 sections) for inlet to system and outlet to faucet – 5 feet each
• Includes HDG-SED5, 5 micron sediment pre-filter to reduce sediment, rust, particulate
• Includes HDG-MCB (Microban Carbon Block) activated carbon filter
• Includes HDG-CB5P coconut shell polishing post-filter
• Includes SHOK BLOK protection valve which limits water presure and reduces water hammer
• Includes FLOWLOK leak protection system that senses leaks and automatically shuts off the incoming water feed
• Reduces chlorine taste and odor, VOCs, Pesticides, Herbicides, and particulates to .5 microns
• 3-Year Limited Warranty

SPECIFICATIONS:

• Rated Capacity – 800 gallons
• Micron rating – .5
• Flow rate – .75GPM @ 60 psi
• Replacement Filters – HDG-SED5, HDG-MCB, HDG-CB5P
• Max Pressure: 100 psi
• Min Pressure: 30 psi
• Max Temp: 100 F
• Min Temp: 34 F
• Height – 14.75″
• Width – 10.75″
• Depth – 4.56″
