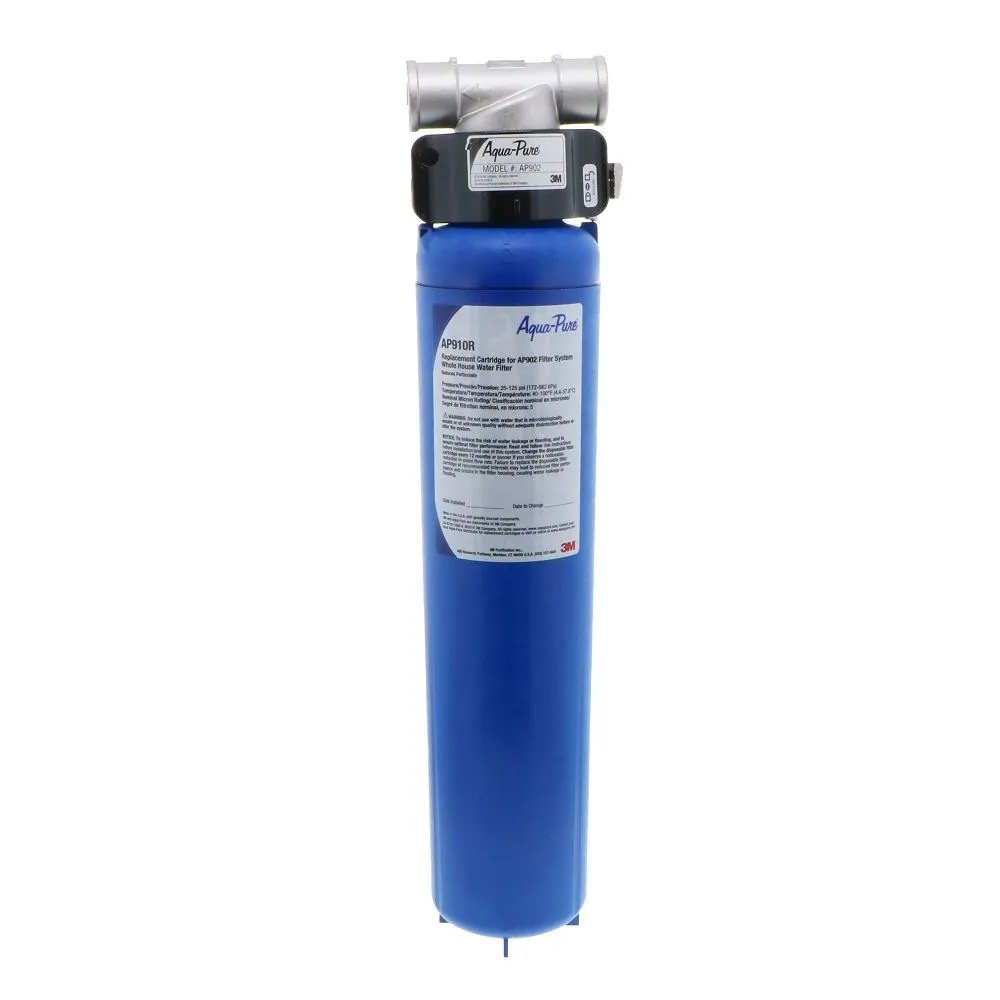

3M Aqua-Pure AP902 High Flow SQC Sediment Filter System

• Reduces sediment for up to 100,000 gallons, while providing unrestricted flow with 1″ NPT connections
• 304 stainless steel head allows for “sweat in place” installation and is a non-corrosive material.
• Sanitary Quick Change (SQC) design, an industry first for this application, allows for fast and easy cartridge change-outs without the need of a filter wrench.
• Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out.
• Filter cartridge:
• Incorporates a non-woven blended pleat media.
• Requires no pre-activation.
• Has o-ring seal type.
• 25 year limited warranty on stainless steel head.
• Manufactured from FDA CFR-21 compliant materials.

Specifications:

• System includes:
• Head assembly w/ integral mounting bracket
• Single cartridge filter
• Filter rating: 5 Mic Nominal
• Flow rate: 20 GPM
• Capacity: 100,000 gallons (approx. 1 year)
• Inlet/Outlet connections: 1″ NPT
• Max operating pressure: 125 PSI @ 100 F
• Dimensions: 25 1/6″ Height x 4 1/2″ Diameter (additional 3″ recommended for cartridge removal)
• Weight: 7 lbs. (3.2kg)
• Warranty: 25 Year limited
• Replacement cartridge: AP910R (5621001)
