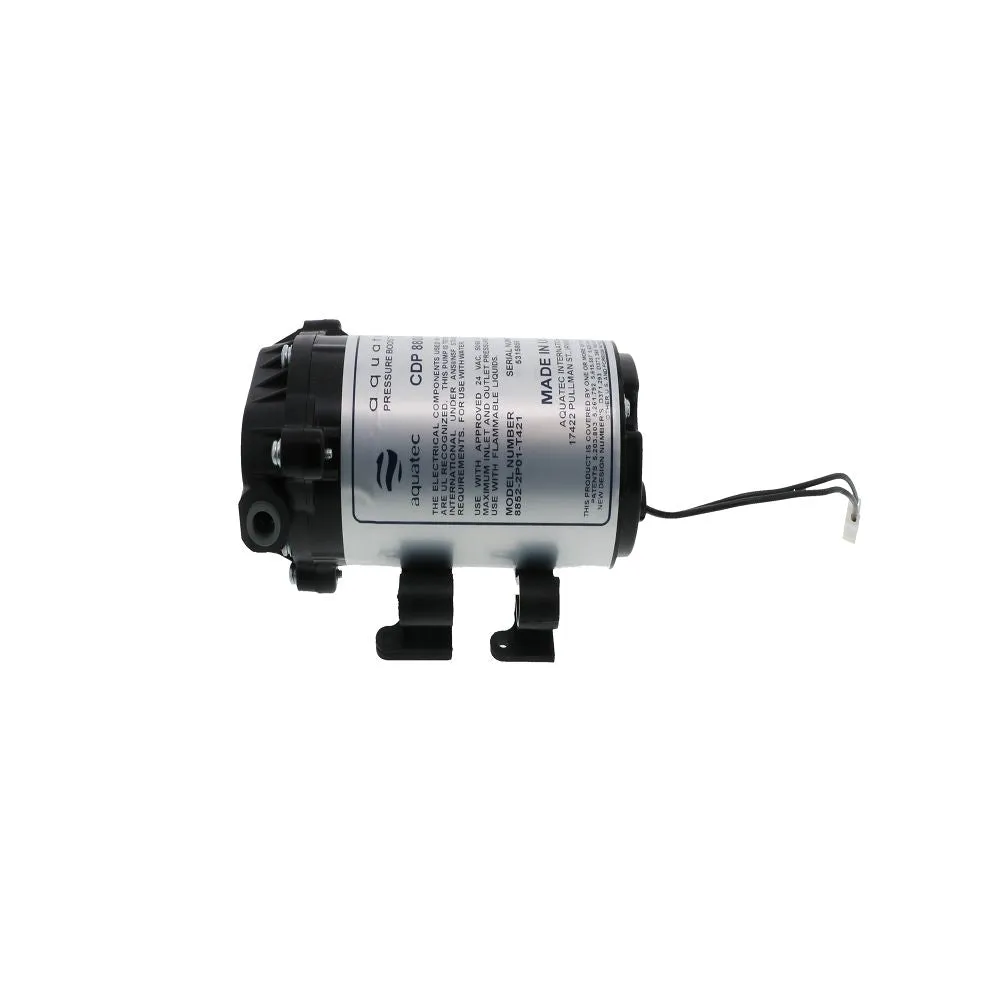

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-T421 160 PSI Bypass, 3/8 JG, 24 VAC

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 8852-2P01-T421

CATEGORY: Water Pumps

Description

Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8852-2P01-T421 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:

Outstanding toughness, durability
EMI/RFI electronic noise suppression
Expels trapped air and eliminates “air locks”
Pumphead can be mounted up or down
Improved venting system removes moisture
Corrosion resistant exterior
Connections: 3/8″ QC
Designed for 15,000+ operating hours
Outlet pressures up to 125 PSI
Extremely quiet operation, less than 52 DBA
Runs dry without damage
Self-priming, 60 inch lift
Low voltage (24V) for maximum safety

Recommend Accessories:

8800 Series Transformer 120V/24VAC (US) – (required) connects pump to electrical outlet to provide power
Tank Pressure shut-off switch w/ wire harness – shuts off booster pump when RO tank is full
Electronic Shut-off Solenoid (ESO) Valve w/ QC fittings – connects to tank pressure shut-off switch to close off the feed water source when RO tank is full
Wire harness assembly – required when using electronic shut-off valve

Specifications

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8″ OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	6.1

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8″ OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	10.9

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8″ OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	24.5 in.
Shipping Width	17.5 in.
Shipping Height	9.25 in.
Product Weight & Dimensions
Product Height	8.75
Product Length	24.5
Product Width	8.75
Product Weight (lbs)	64

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8″ OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	23.5 in.
Shipping Width	17 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	35.4

Product Information

SKU8852-2P01-T421
CategoryWater Pumps

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-T421 160 PSI Bypass, 3/8 JG, 24 VAC
