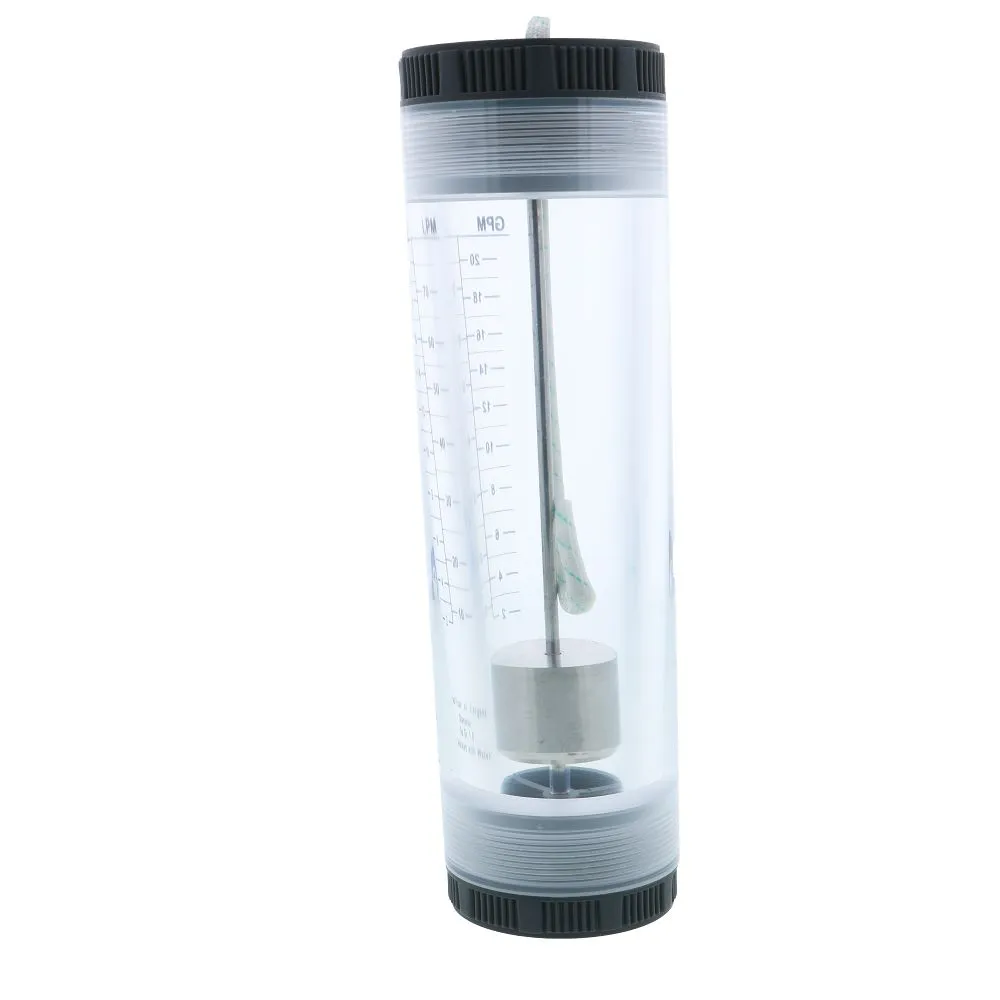

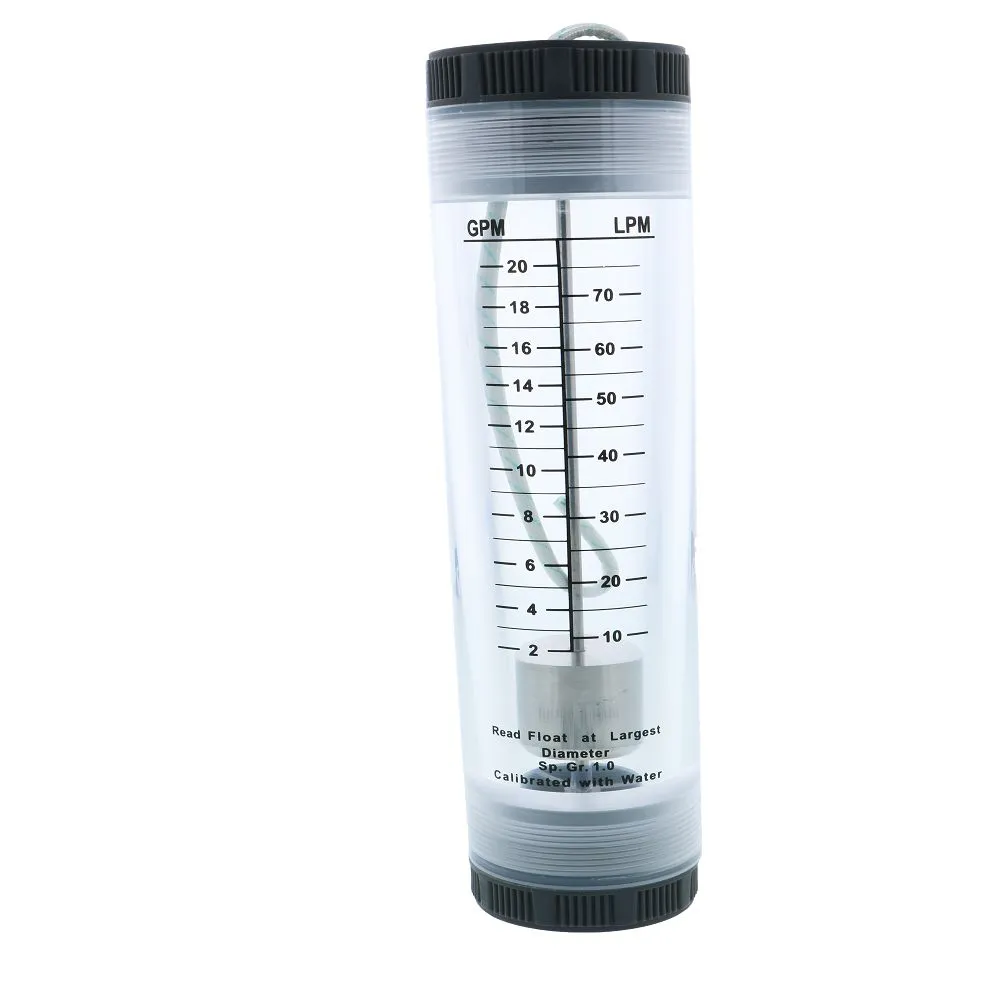

Axeon 204271 Inline Flow Meter 1-20 GPM, 1″ FNPT

The Axeon 204271 is an inline flow meter. This meter features an easy to read scale, stainless steel float, and 100% tested for accuracy. The 204271 is very durable because the main body is constructed from Acrylic, the o-rings are silicone, and the female connectors are polypropylene. The meters connections are 1″ FNPT and the meter reads from 1 to 20 GPM.
Features:

• Acrylic Body
• Individually Packaged
• 100% Tested for Accuracy
• Calibrations in GPM and LPM
• Solid One Piece Injection Molded
• Permanent Screen Printed Scales
• Stainless Steel Float and Internals

Specifications:

• Body: Acrylic
• O–Rings: Silicone
• Connections: Polypropylene
• Guide: 316L Stainless Steel
• Float: 316L Stainless Steel
• Maximum Pressure: 150 psi
• Temperature Rating: 120°F
• Accuracy: ± 4%
