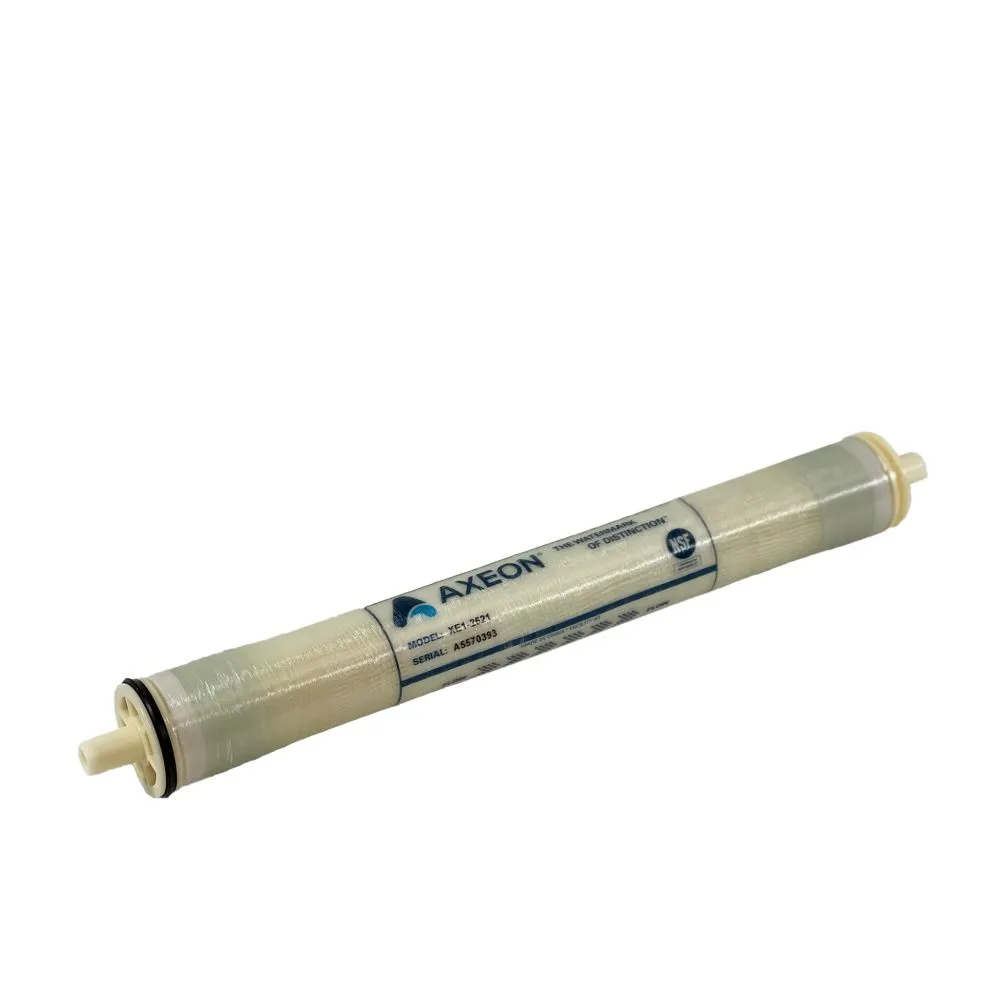

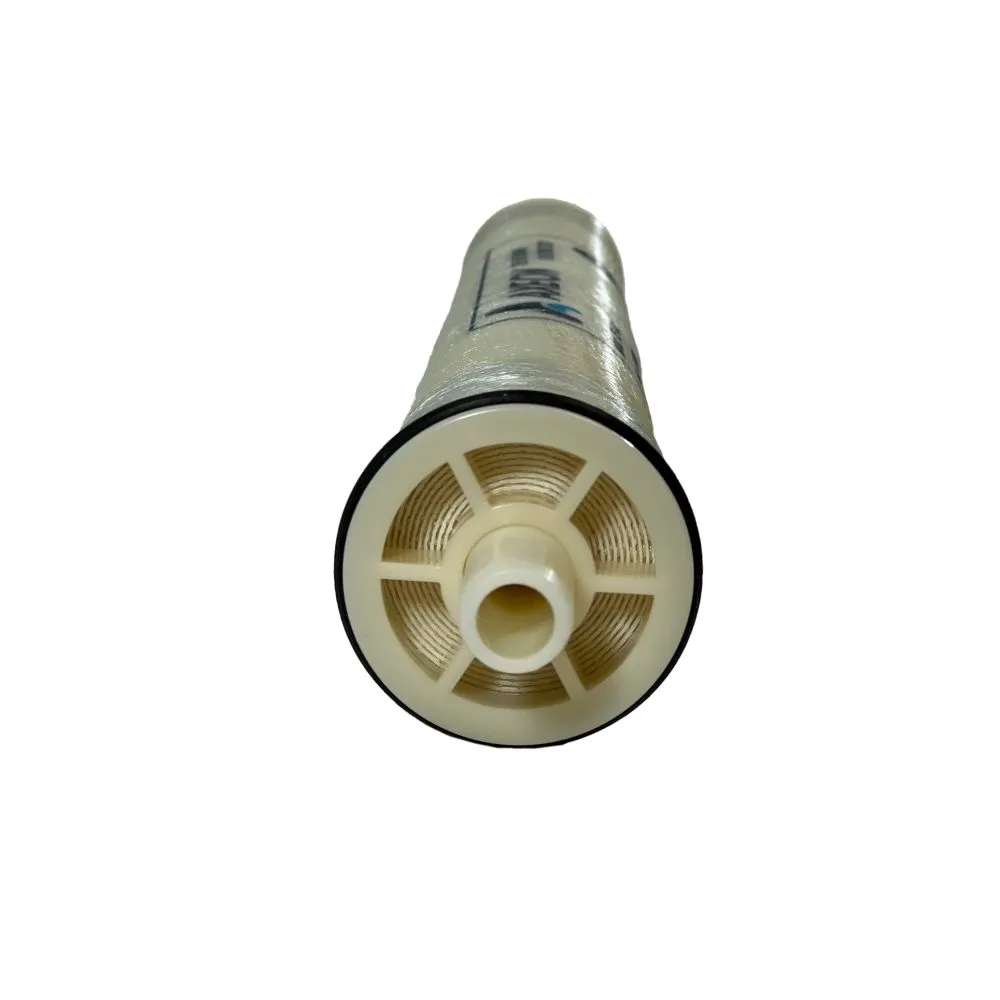

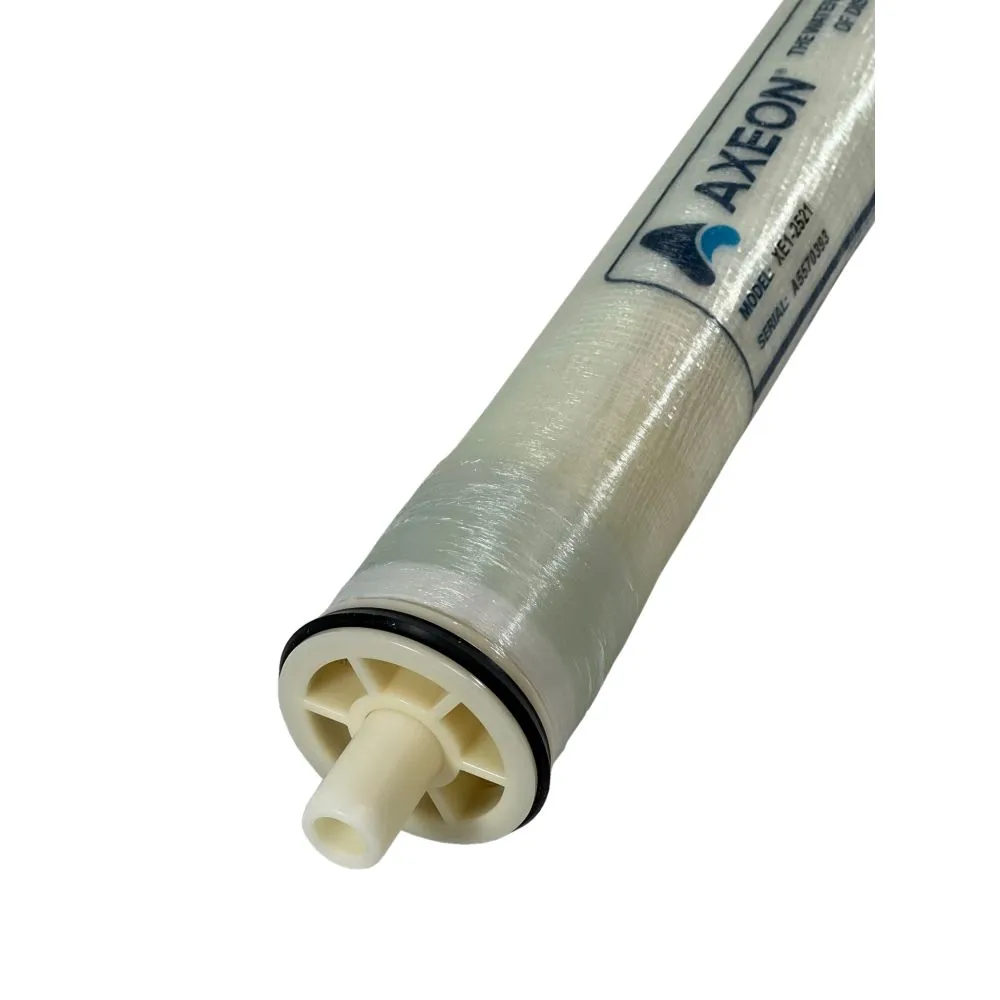

AXEON RO membranes are dry packed
Compatible with:
| Desal Membranes | AK2540TF, 1206802, AK2540FF, 1206800 |
| Filmtec Membranes | XLE-2540 |
| Product Details | |
|---|---|
|
Application |
Brackish Water |
|
Average Nacl Rejection |
99.2% |
|
Chlorine Tolerance |
0 ppm |
|
Cleaning Ph Range |
1-13 |
|
Direction |
Outside – In |
|
Feed Water Temperature |
77°F |
|
Inlet Pressure |
100 PSI |
|
Inner/Outer Wraps |
Fiberglass |
|
Material Of Construction |
Polyamide Thin-Film |
|
Max Feed Silt Density Index |
5 Silt Density Index |
|
Max Pressure Drop |
10 PSI Differential |
|
Max Pressure (Psi) |
600 psi |
|
Max Temp (°F) |
113°F |
|
Membrane Type |
Spiral Wound |
|
Minimum Salt Rejection Cl- (%) |
96% |
|
Permeate Flow Rate |
300 gpd |
|
Permeate Tube Diameter |
3/4″ |
|
Ph Range |
2-11 |
|
Recovery Rate |
15% |
|
Diameter |
2.4″ |
| Shipping Dimensions | |
|
Shipping Length |
22.5 in. |
|
Shipping Width |
3 in. |
|
Shipping Height |
3 in. |
| Product Weight & Dimensions | |
|
Product Length |
21″ |
|
Product Width |
2.5″ |
|
Product Weight (lbs) |
3 |
