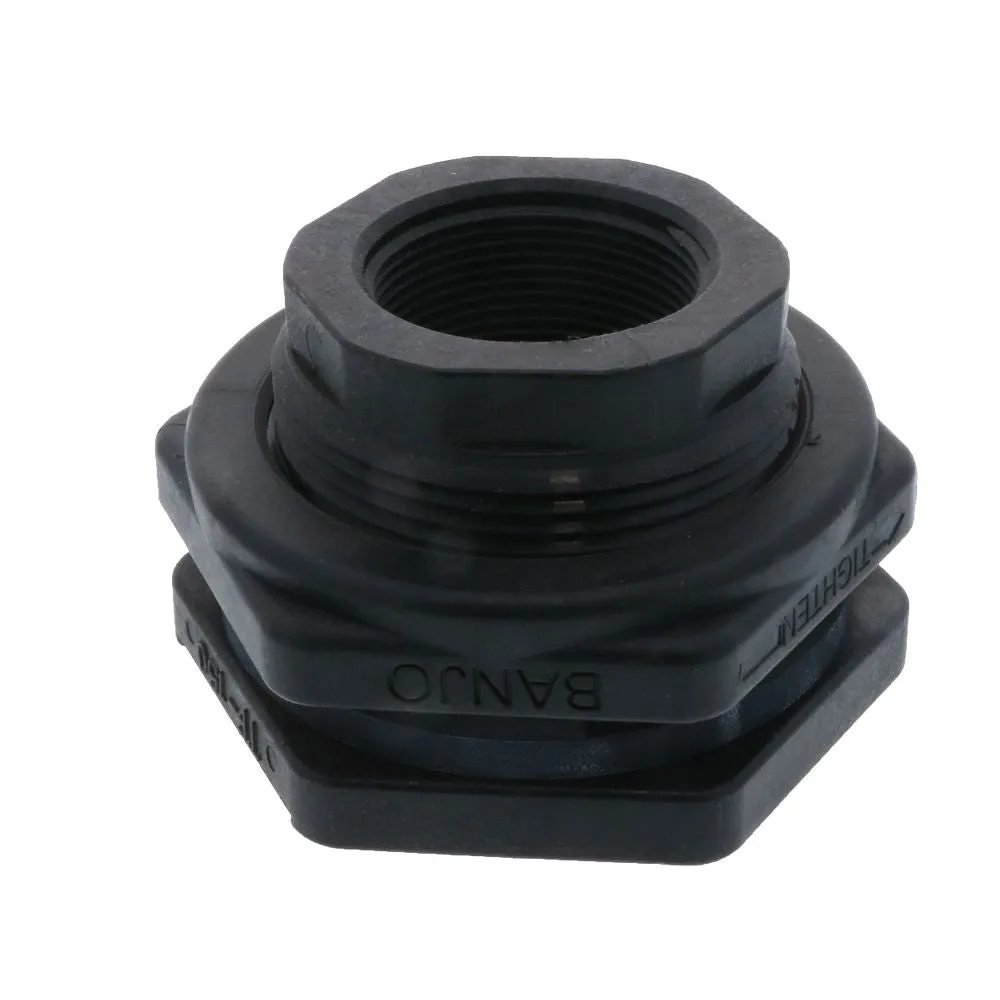

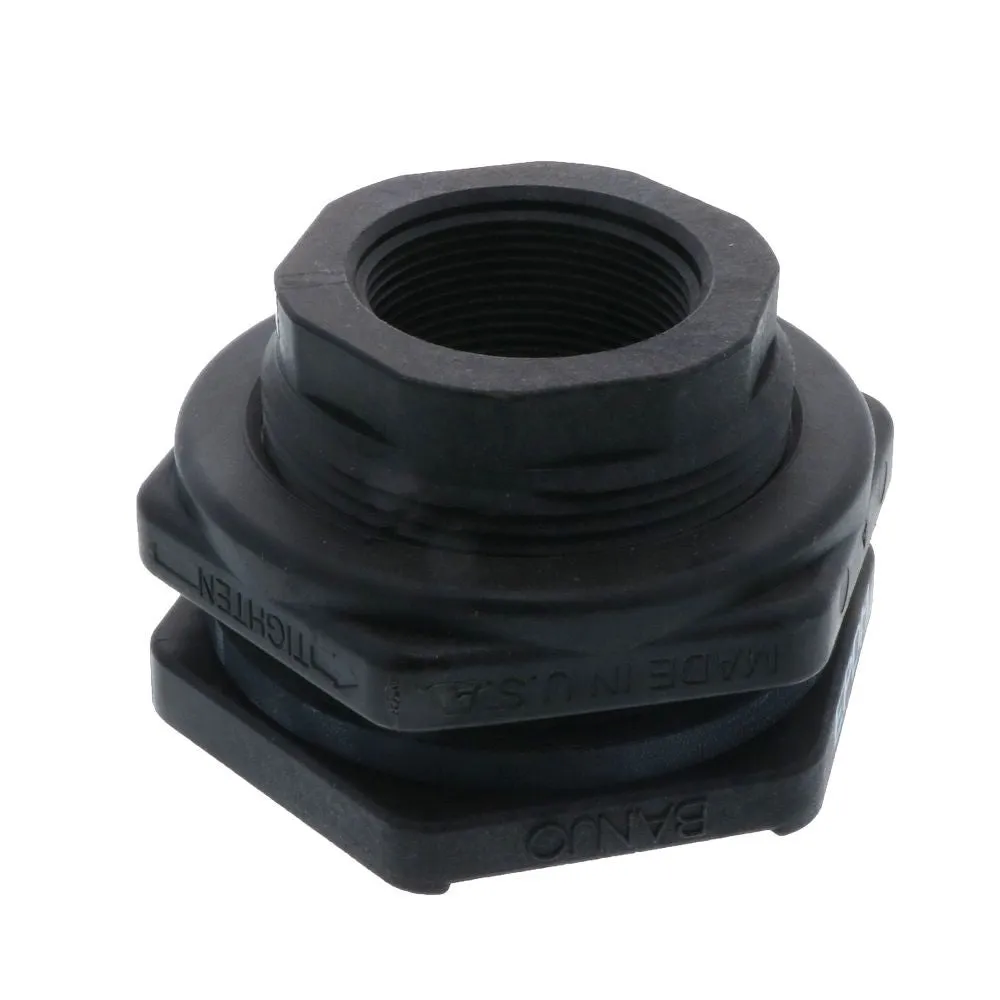

Banjo 1″ Polypropylene Bulkhead Tank Fitting with EPDM Gaskets

Original price was: $7.95.Current price is: $2.38.
🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: BHTF100-PP
CATEGORY: Fittings & Connectors
Description
The Banjo 3/4″ Polypropylene Bulkhead Tank Fitting with EPDM gaskets and constructed of glass reinforced polypropylene which has superior chemical and corrosion resistance, rigidity, light weight, and stress cracking resistance. This bulkhead fitting includes a double sided female NPT thread. The 3/4″ Polypropylene Bulkhead Tank Fittings with EPDM gaskets can be used with our atmospheric vertical storage tanks.

Specifications:

  • Thread Size: 1″
  • Required Hole Size: 2-1/4″
  • Temperature Range: 0 – 150º F
  • Connection: FNPT
  • Gasket Material: EPDM
  • Color: Black

Specifications

Product Details

Body Material

Polypropylene

Max Pressure (Psi)

150

Max Temp (°F)

150

Min Pressure (Psi)

0

Min Temp (°F)

0

Color / Finish

BLACK

Origin

U.S.A.

Type

Bulkhead
Product Weight & Dimensions

Product Weight (lbs)

0.25

Product Information

Related products

Fittings & Connectors

Hydronix 1/4″ Quick Connect Tank Top

Original price was: $4.99.Current price is: $1.50.
Fittings & Connectors

John Guest ProLock Female Connector NPS – 1 CTS x 1 NPS (Brass Nut)

Original price was: $21.28.Current price is: $6.38.
Fittings & Connectors

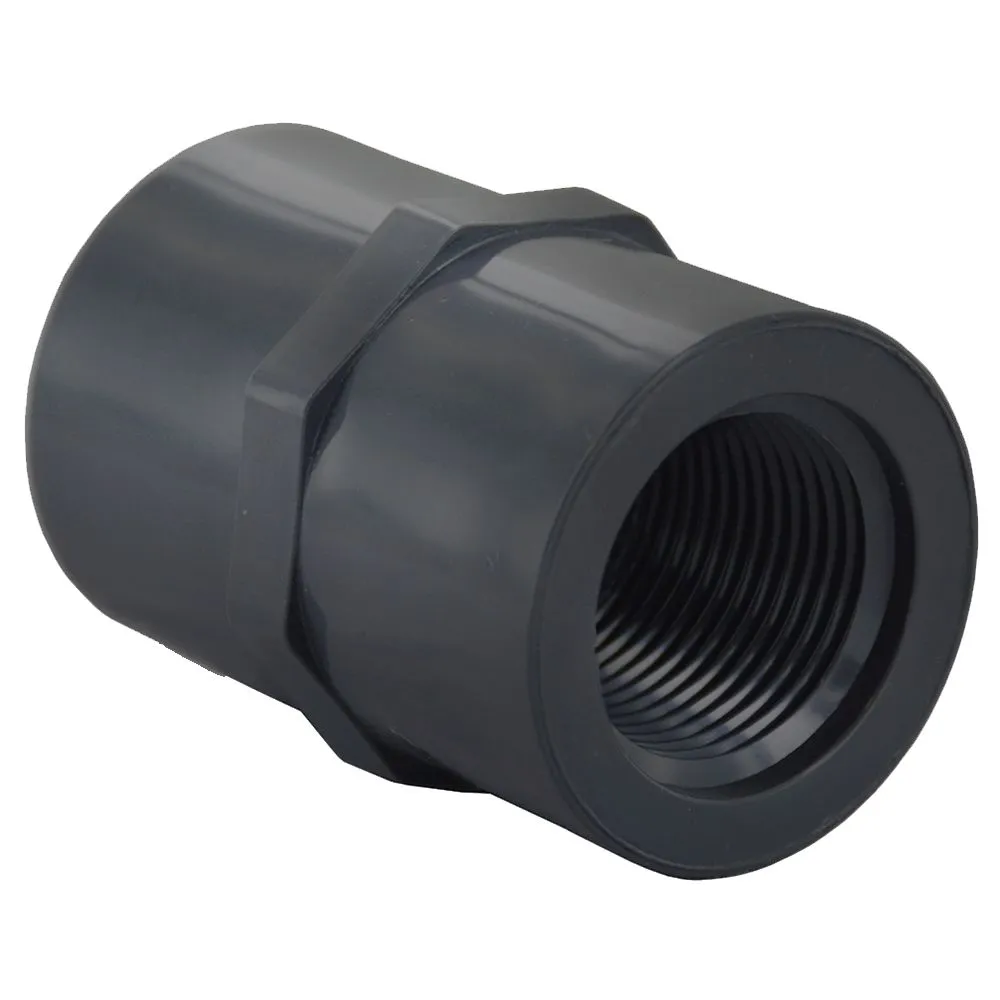

Schedule 80 PVC Coupling 3/4″ FIP
