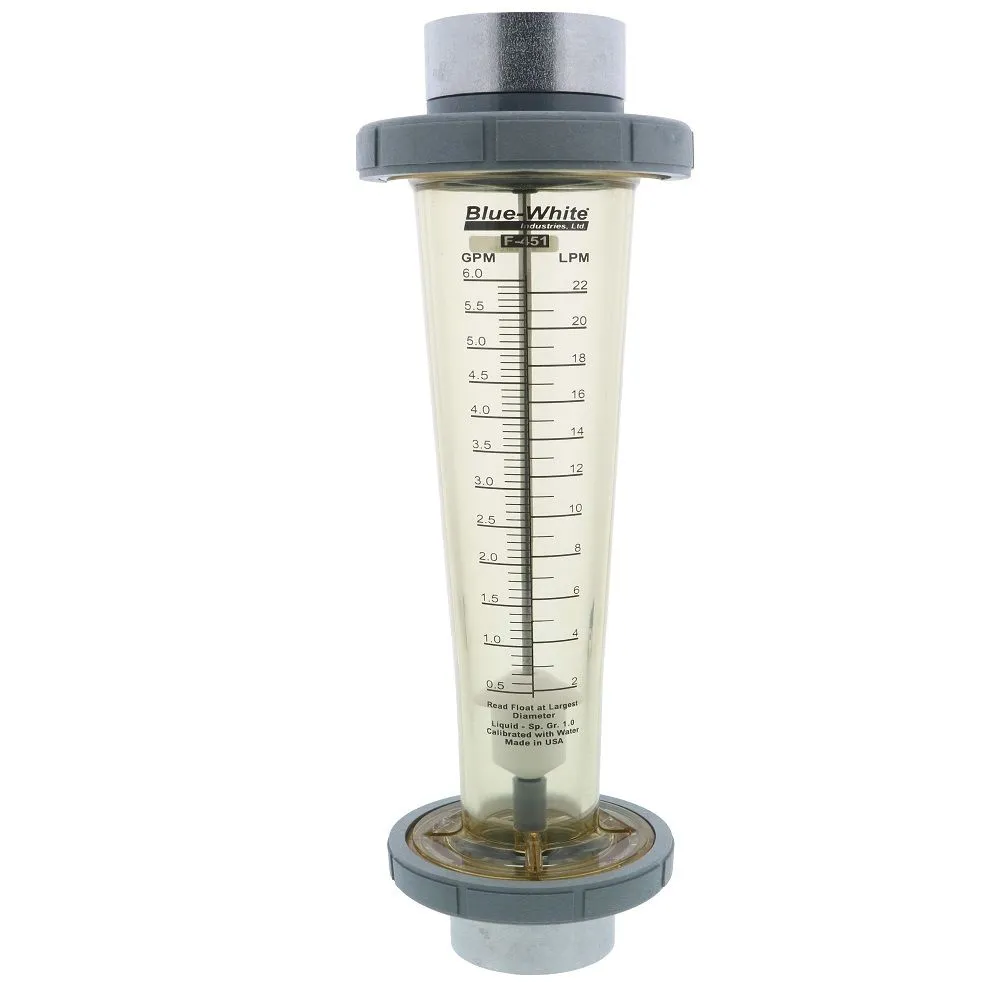

Inline Flow Meters
| Flow Rate | Connection | Blue White | Neo-Pure |
|---|---|---|---|
| 0.1-1.0 GPM | 1/2″ FPT | F-40375LN-8 | FMS1-011-08 |
| 0.2-2.0 GPM | 1/2″ FPT | F-40376LN-8 | FMS1-022-08 |
| 0.5-5.0 GPM | 1/2″ FPT | F-40500LN-8 | FMS1-055-08 |
| 2.0-20 GPM | 3/4″ FPT | F-41000LN-12 | FMS1-220-16 |
| 2.0-20 GPM | 1″ FPT | F-41000LN-16 | FMS1-220-16 |
| 2.0-20 GPM | 1″ FPT | F-451002LHN | FMS1-220-16 |
| 3.0-30 GPM | 1″ FPT | F-451003LHN | FMS1-530-16 |

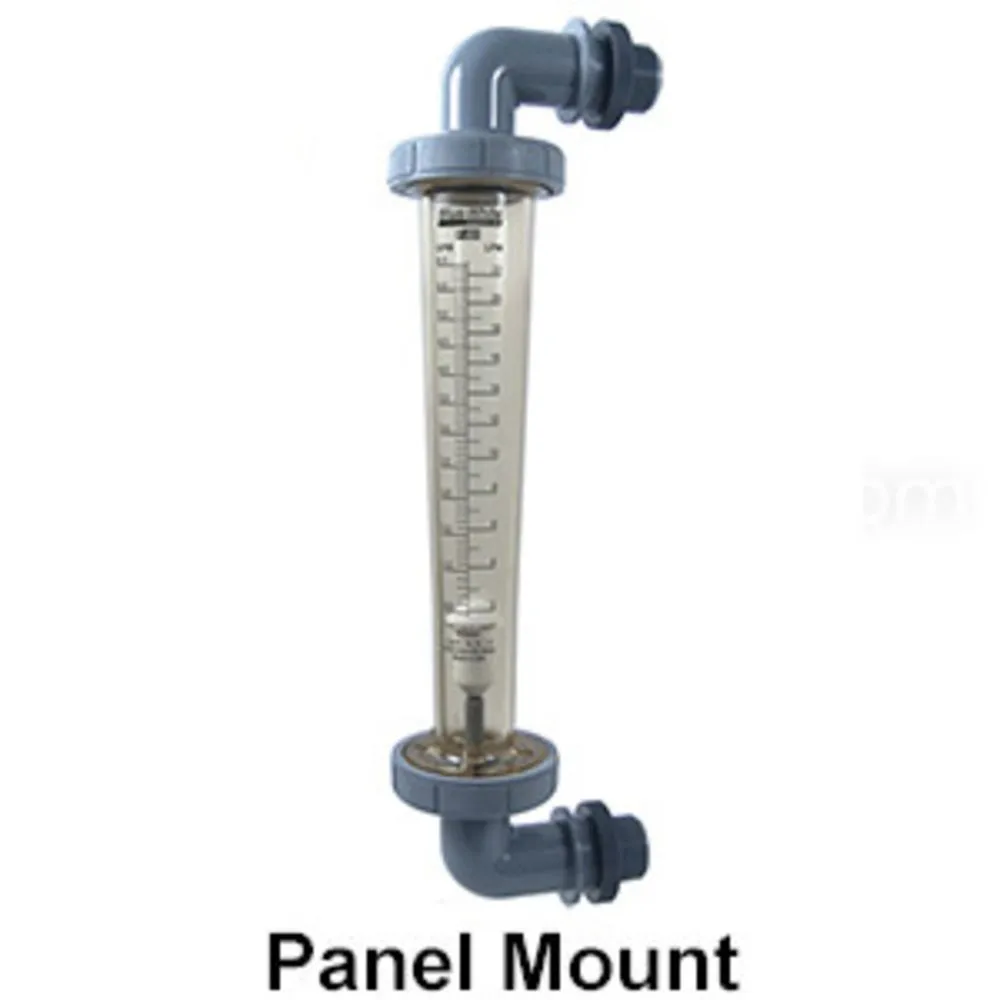

Panel Mounted Flow Meters
| Flow Rate | Connection | Blue White | Neo-Pure |
|---|---|---|---|
| 0.2-20 GPM | 1″ MPT | F-55200L* | FMP0-216-16* |
| 0.2-2.0 GPM | 3/8″ MPT | F-55376L | FMP0-022-06 |
| 0.5-5.0 GPM | 1/2″ MPT | F-55500L | FMP0-055-08 |
| 0.1-10 GPM | 3/4″ MPT | F-55750L | FMP0-210-12 |
Adjustable Panel Mounted Flow Meters
| Flow Rate | Connection | Blue White | Neo-Pure |
|---|---|---|---|
| 0.2-20 GPM | 1″ MPT | F-55200LA** | FMP1-216-16** |
| 0.1-1.0 GPM | 3/8″ MPT | F-55375LA*** | FMP1-011-04*** |
| 0.2-2.0 GPM | 3/8″ MPT | F-55376LA | FMP1-022-06 |
| 0.5-5.0 GPM | 1/2″ MPT | F-55500LA | FMP1-055-08 |
| 0.1-10 GPM | 3/4″ MPT | F-55750LA | FMP1-210-12 |
Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.
Blue White:
F-55200L* – 8 inch
F-55200LA** – 8 inch
F-55375LA*** – 6.5 inch
Neo-Pure:
FMP0-216-16* – 6.5 inch
FMP1-216-16** – 6.5 inch
FMP1-011-04*** – 5 inch
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
22 in. |
|
Shipping Width |
10 in. |
|
Shipping Height |
9 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
5.65 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
2.75 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Float |
Teflon 316 Stainless Steel |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
Measurement Range |
4 to 80 SCFM |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
1.2 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Float |
Teflon 316 Stainless Steel |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
Measurement Range |
4 to 80 SCFM |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
2.75 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Float |
Teflon 316 Stainless Steel |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
Measurement Range |
4 to 80 SCFM |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
3.1 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Float |
Teflon 316 Stainless Steel |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
Measurement Range |
4 to 80 SCFM |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
3.15 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
2.85 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
26 in. |
|
Shipping Width |
6 in. |
|
Shipping Height |
6 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
3.15 |
| Product Details | |
|---|---|
|
Accuracy |
±3 % |
|
Body Material |
Polysulfone |
|
Max Pressure (Psi) |
150 |
|
Max Temp (°F) |
212 |
|
O-Rings |
Viton |
|
Flow Rate |
.5-40 GPM |
|
Port Size |
1″ FNPT 1″ MNPT 1-1/2″ MNPT 1-1/2″ FNPT |
| Shipping Dimensions | |
|
Shipping Length |
20 in. |
|
Shipping Width |
8 in. |
|
Shipping Height |
4 in. |
| Product Weight & Dimensions | |
|
Product Weight (lbs) |
2.9 |
