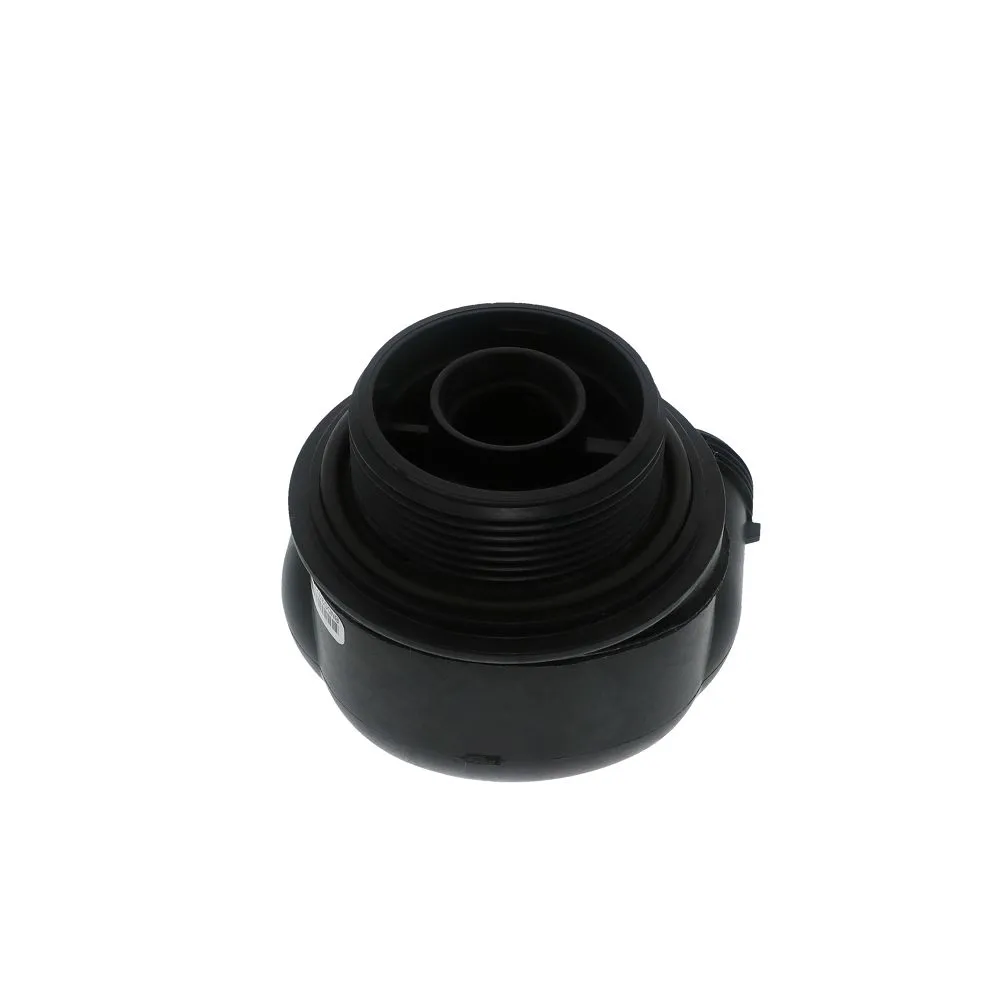

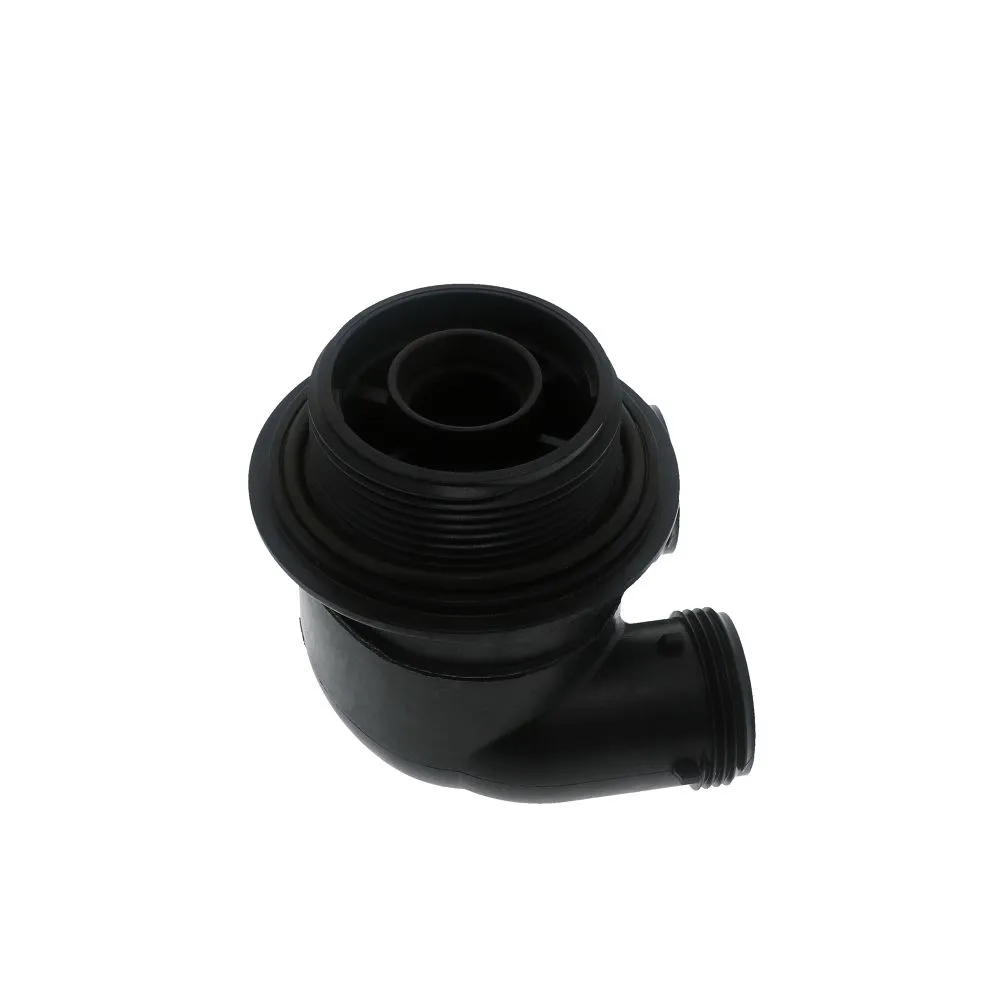

C-Series C1190 In/Out Head w/ Vent Trap

The C1190 is ideal for simple in-out filters such as pH neutralizers, carbon filters, etc. It is molded out of a durable thermoplastic resin. It can be used for Up flow or Down flow service. The C1190 requires a C-Series fitting kit for a proper plumbing connection. The vent port can be drilled out to accept an air relief valve and the 1″ head is fully ported to provide maximum flow rates. The parallel inlet and outlet ports easily adapt to standard plumbing or Clack’s all plastic, four-way bypass valve.
Features:

• Drillable, pre-tapped 1/4″ FIPT vent port
• Fits a standard 2-1/2″ NPSM tank thread
• Features a 1-1/20″ (1.050″) distributor opening
