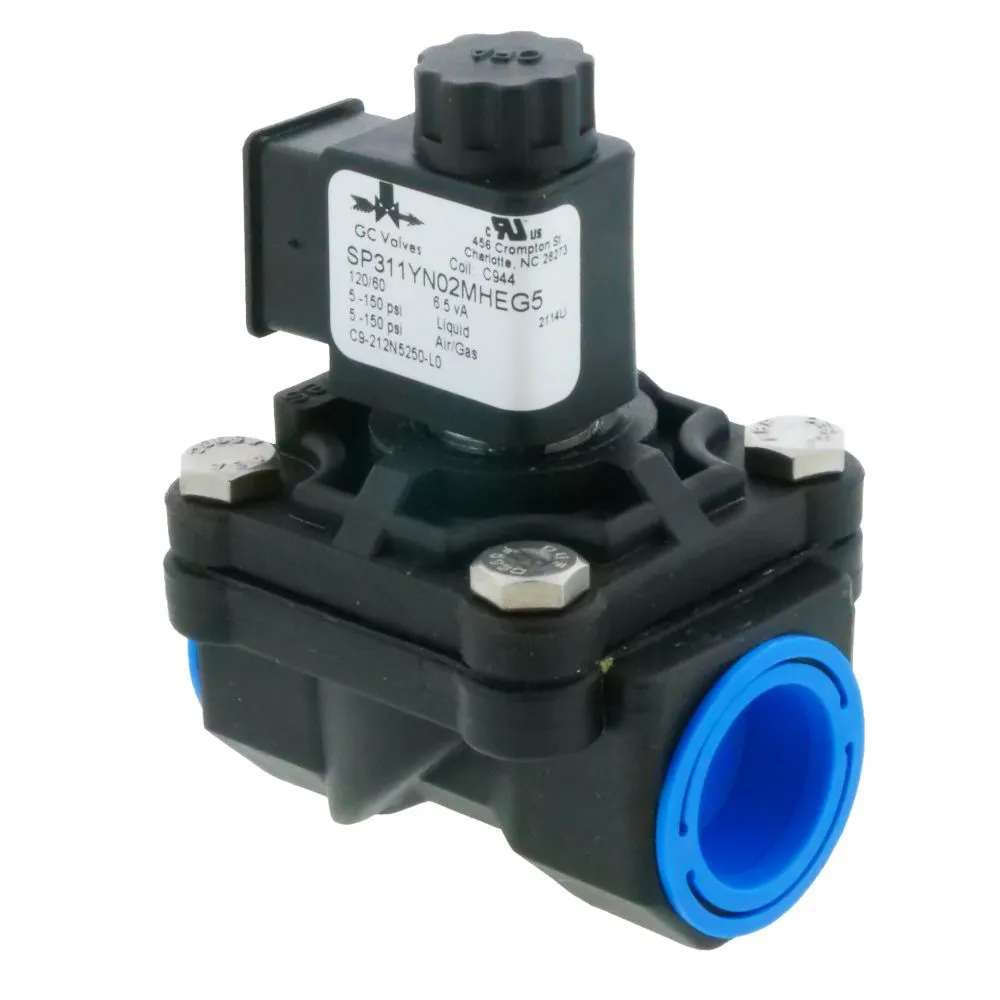

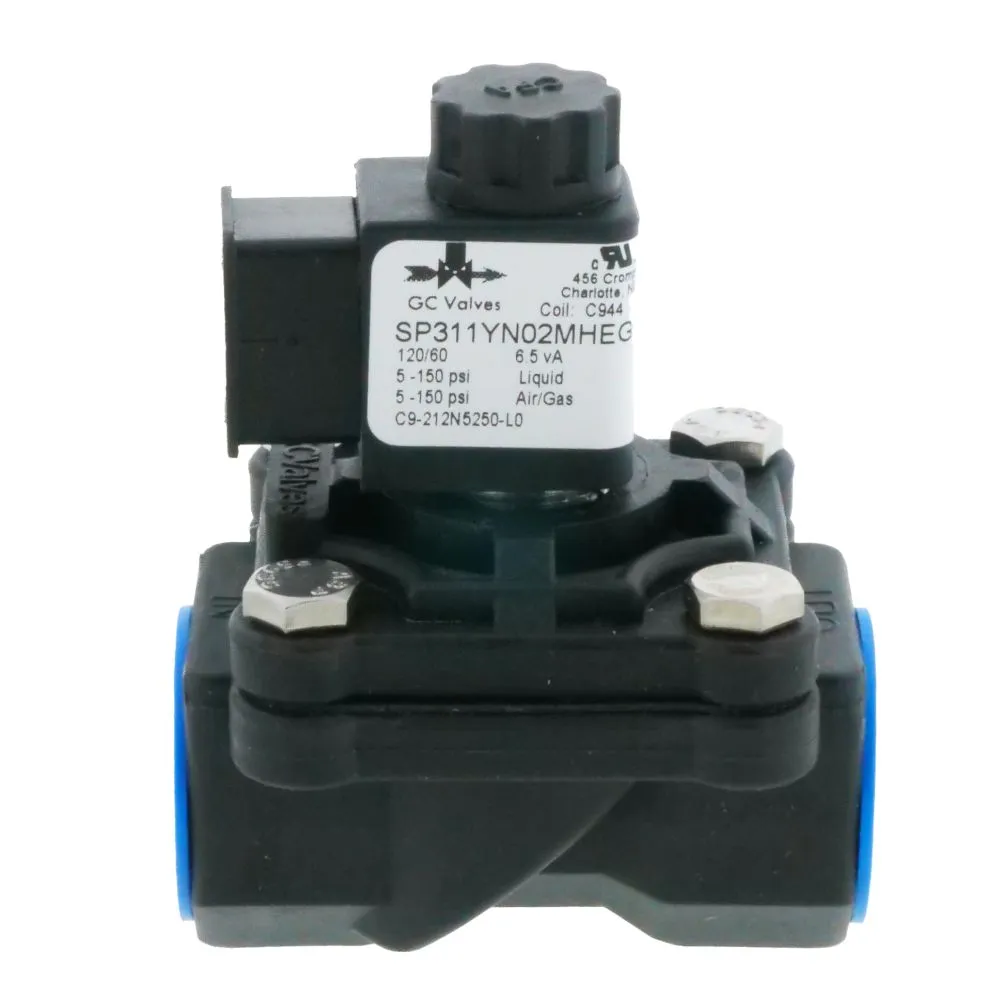

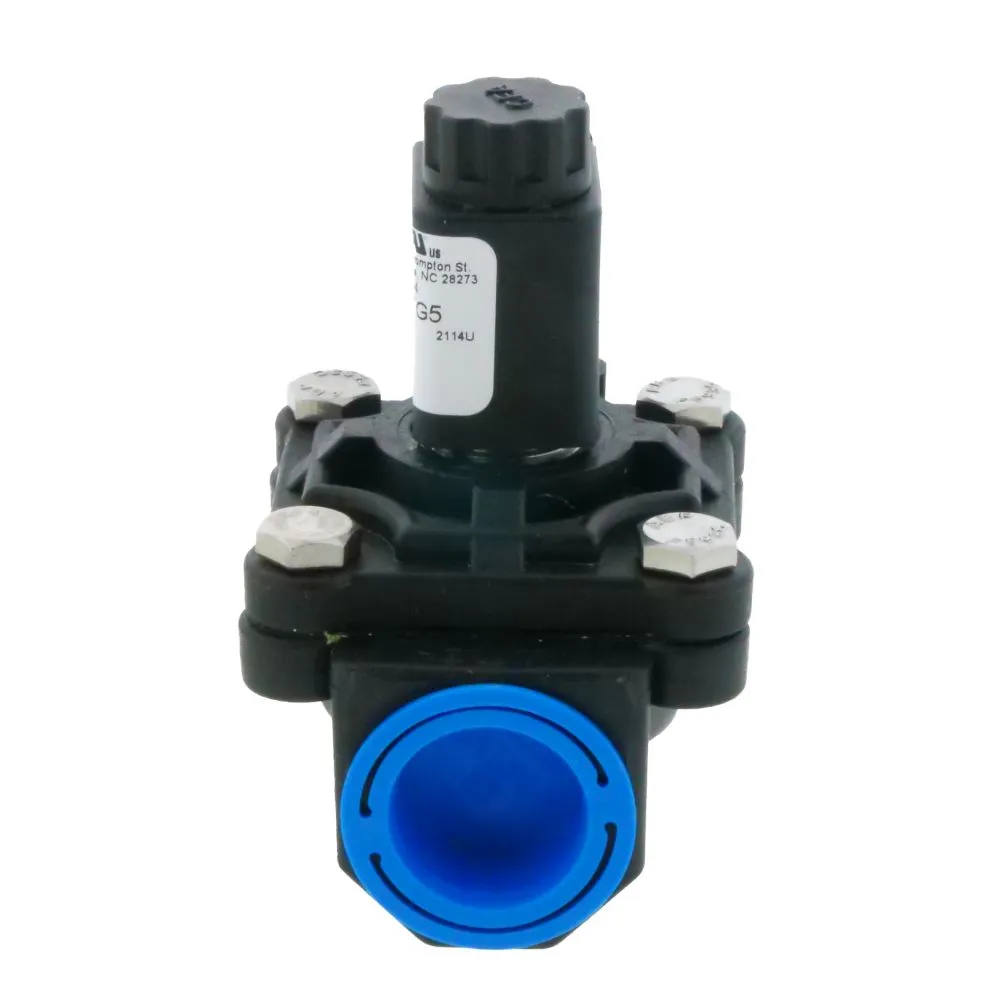

CFA C9 Series Solenoid Valve Normally Closed 3/4″ FPT 120VAC

The CFA C9-212N5250-L0-120VAC solenoid valve is uniquely suited for use in consumer applications where high reliability and low cost are needed. The valve housing is constructed of nylon, the diaphragm material is made Buna-N, and the seals are viton.
Specifications:

• Connection Size: 3/4″ FPT
• Power Connection: Din Connector
• Voltage: 120v AC
• Body: Nylon
• Diaphragm Material: Buna-N
• Seal Material: Viton
• Media: Liquid
• Media Temperature: 41 – 122 °F
• Response Time: 25 – 100mS
• Operating Pressure: 5 – 150 PSI
• Normally Closed
