The

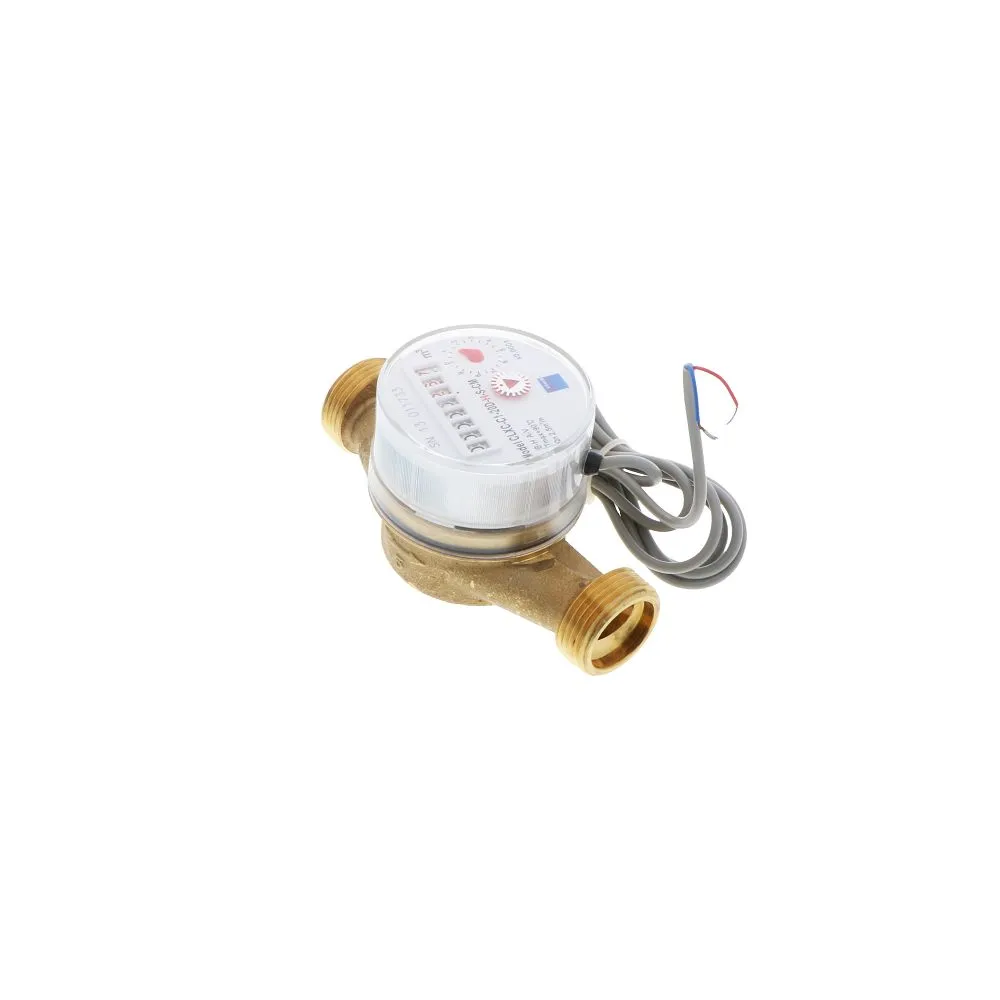

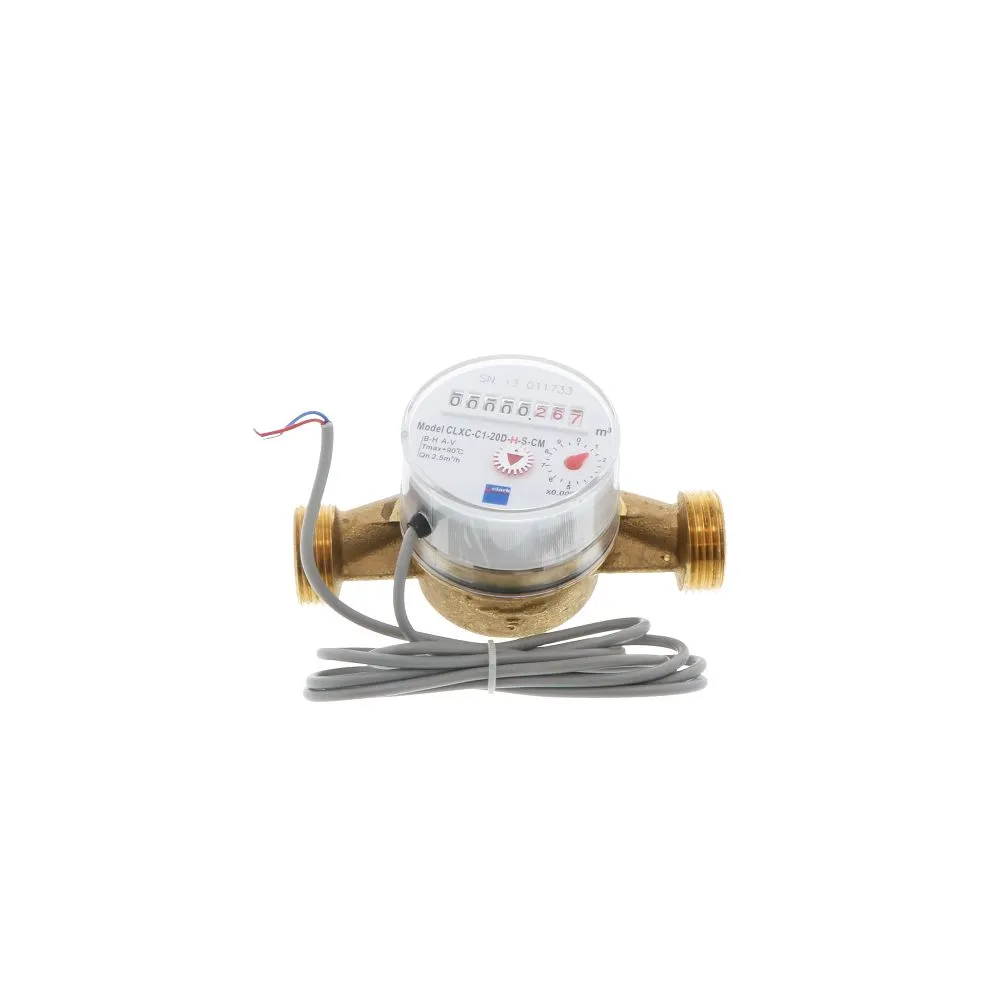

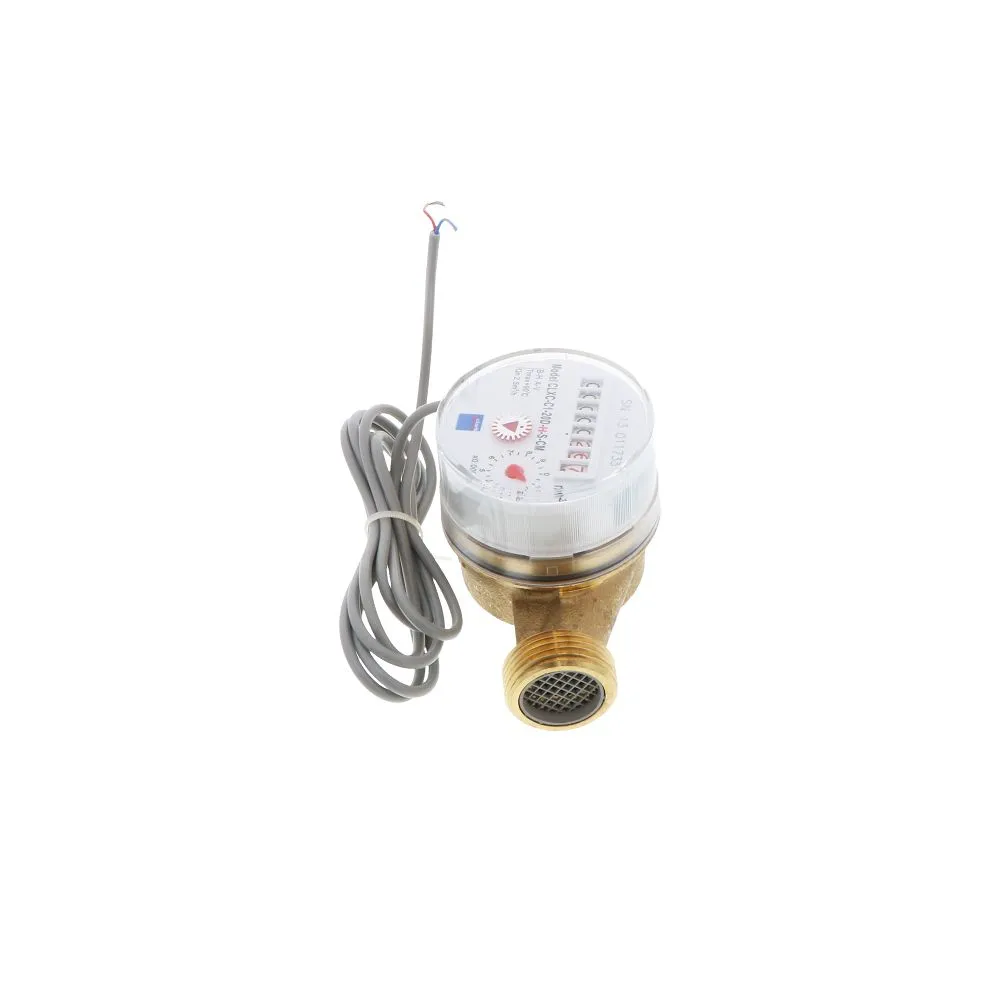

CLXC-C1-20D-C-S-CM Cold Water Meter is a single-jet dry type totalizing water meter with a pulse output of 1 pulse per 10 Liters. These accurate and reliable meters are an ideal choice for a range of sub-metering applications for apartment and commercial buildings, as well as marinas, RV and camping parks. It is highly recommended to install it at a horizontal orientation. Each meter is supplied with a meter coupling (tailpiece) set, which includes 2 couplings and 2 gaskets. This meter offers a quality and reliable water meter at an affordable price compared to alternative water meters on the market. In addition to be an economical choice, having a water meter installed can also save you money on your water bill by allowing you to be charged only for the water you use, and making you more aware of your water usage.
Features and Specifications:
- Cold Water Meter
- Lead free
- Accurate & reliable
- Produced in a ISO9001 certified facility
- Meter Type: Dry, magnetic coupling between rotor and register movement
- Main Casing Material: Brass
- Installation: Horizontal recommended
- Casing Spud Connections: External Straight threads
- Included Accessories: Meter coupling tailpiece set (2 couplings & 2 gaskets)
- Measuring Principal: Single jet
- Meter Size: 3/4″
- Max Media Temperature: 122°F
- Max Operating Pressure: 150 PSI
- Max Pressure Drop: 15 PSI
- Proof Pressure: 300 PSI
- Max Flow: 22 GPM (5 m³/hr)
- Nom Flow: 11 GPM (2.5 m³/hr)
- Min Flow: 0.22 GPM (0.05 m³/hr)
- Min Reading: 0.01 m³
- Max Reading: 99999.99 m³
- Pulse Output: 1 pulse per 10 liters (0.01 m³)
