Applications:

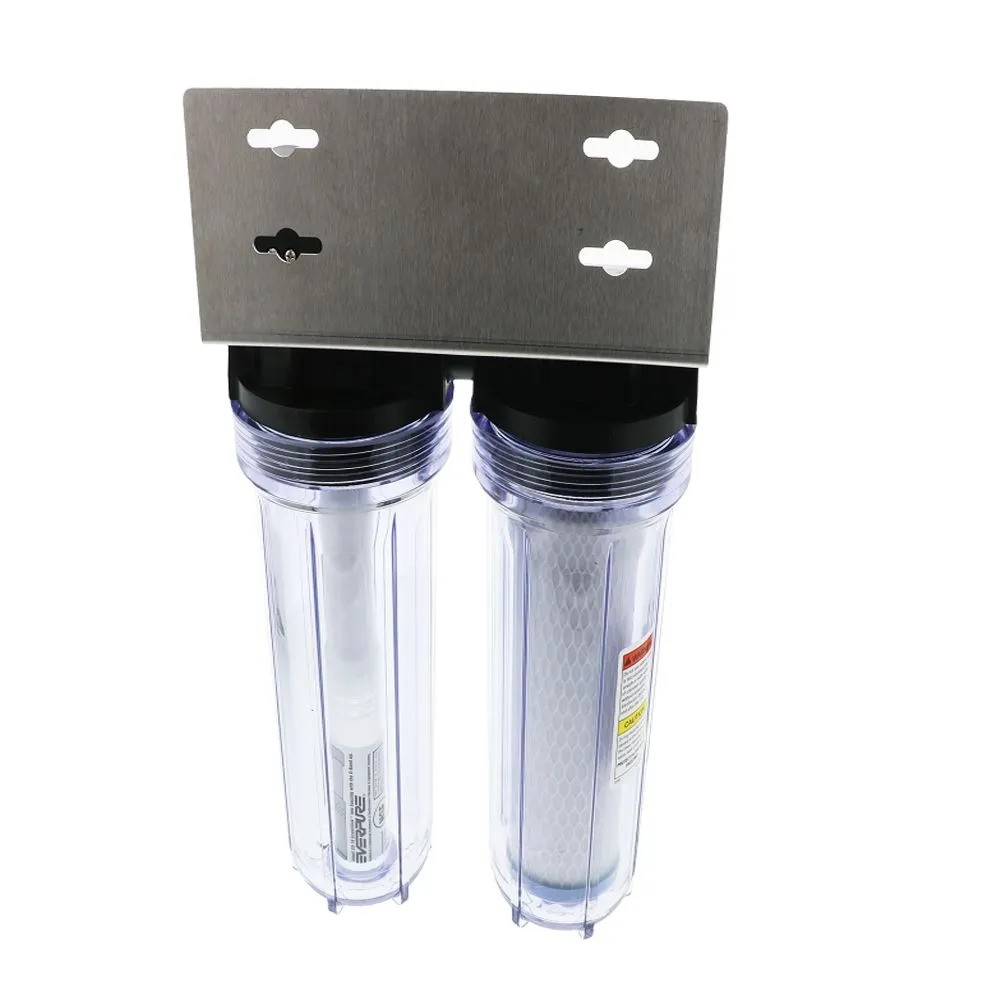

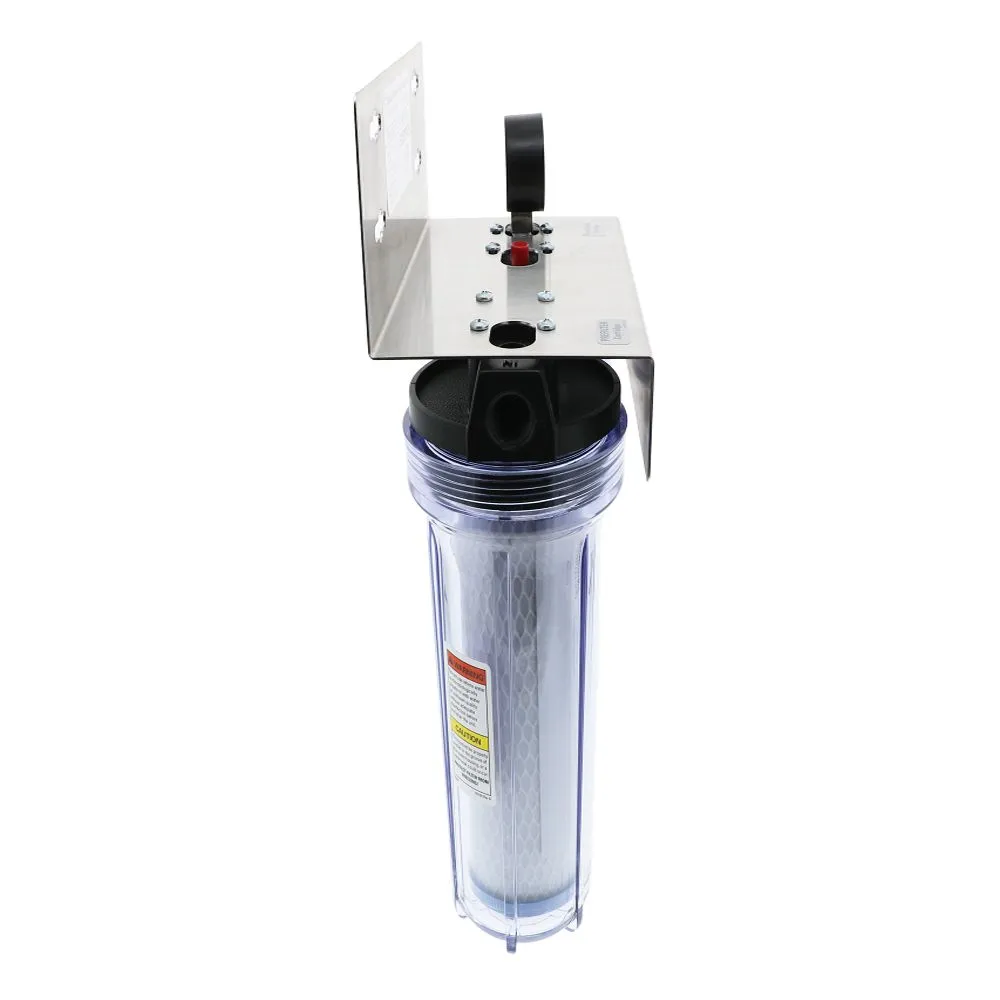

The Costguard SC10-11 Steam/Combi 6 gpm max Filter System uses a 5-mic carbon block cartridge and a SS-10 ScaleStick cartridge.
NOTE: NSF 42 Certification ONLY applies to the Scale Stick. NOT the entire system
Compatible with:
| Hobart | FA-SS-CB-TW |
| Product Details | |
|---|---|
|
Application |
Steam System Drinking Water |
|
Inlet Connection |
1/2″ FPT |
|
Max Pressure (Psi) |
125 |
|
Max Temp (°F) |
100 |
|
Min Pressure (Psi) |
10 |
|
Min Temp (°F) |
35 |
|
Outlet Connection |
1/2″ FPT |
|
Size |
1/2″ |
|
Connection Type |
Female (FPT) |
|
Contaminants Reduced |
Chlorine/Taste/Odor Scale |
|
Flow Rate |
6.0 GPM |
|
Type |
Steam Filtration Systems |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 42 |
| Shipping Dimensions | |
|
Shipping Length |
20 in. |
|
Shipping Width |
14.5 in. |
|
Shipping Height |
9.5 in. |
| Product Weight & Dimensions | |
|
Approx Depth |
5-1/4″ |
|
Product Height |
9.5 |
|
Product Length |
20 |
|
Product Width |
14.5 |
|
Product Weight (lbs) |
9.985 |
