Davey BT30-30 Booster System with Torrium2 – +30 psi 30 gpm

The Davey BT30-30 Single Impeller Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quietly, featuring low noise between 54 and 56 dBa. The BT30-30 is ideal size for small residences, mobile homes, cottages and yachts.
The Davey BT30-30 Booster Pump can solve your problems. The system will give you a stronger and even water pressure by boosting your exisisting pressurized water supply. You will no longer struggle with water pressure fluctuations when someone flushes a toilet or have low pressure in a bathroom faucet.
Opposite to flow switch controllers that require a minimum flow before they will operate, Davey BT pumps will begin as soon as the faucet is opened and keeps running until the water is no longer needed. But that’s not all! The Torrium 2 Pressure System Controller automatically adapts to changing conditions because it has a built-in ‘brain’ that can out smart every-day problems. This also means far less installation and maintenance issues. The Torrium2 ensures that a steady, reliable flow of water is available day after day, year after year.
3 Year Warranty
Please see the installation manual below to get all the details of the repair or replacement Guarantee.
NSF / CSA Certified
This pump has been third party tested and certified to NSF / ANSI Standard 61 & CSA Approved.
Quick and Easy Installation
These high quality booster pumps are compact, quiet, low maintenance, and easy to install.

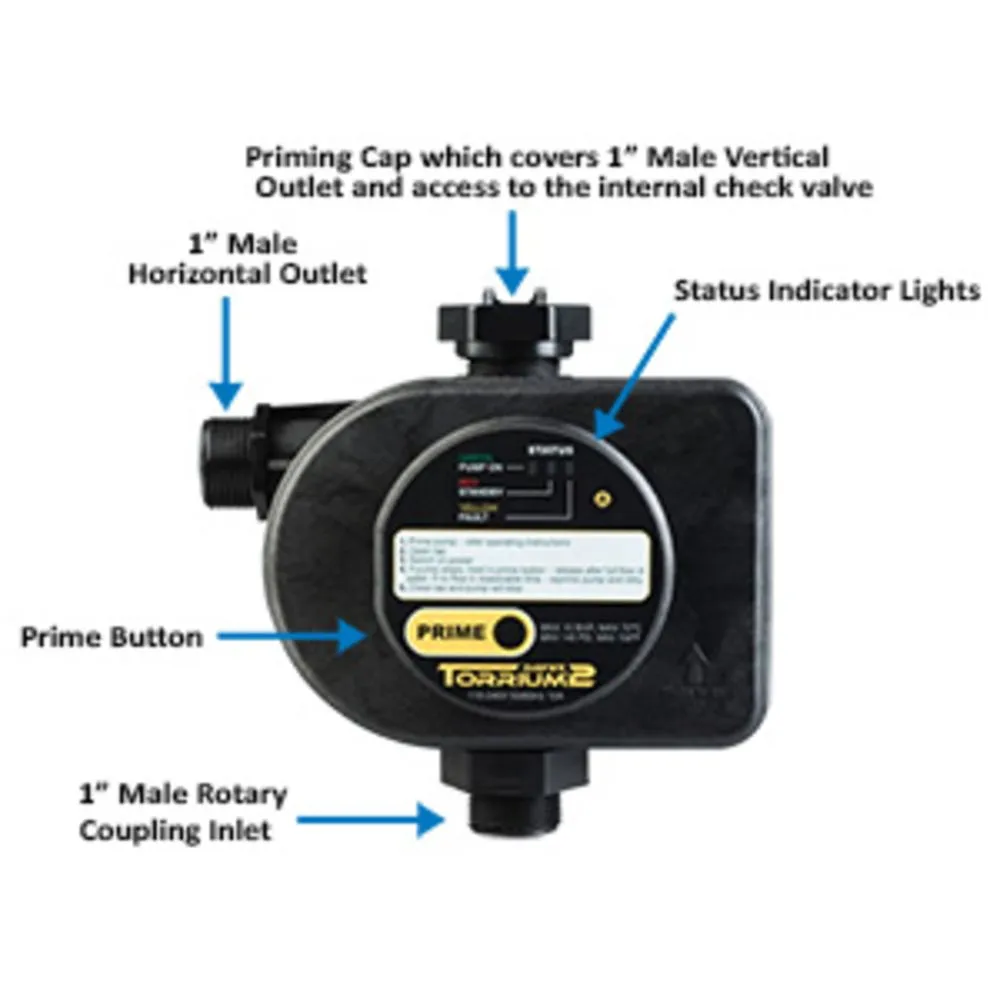

Torrium 2 Features
Smart controller with adaptive cut-in knows to come on for even constant pressure
Needs no adjustment – comes on with half gallon flow or a 20% pressure loss
Swivels 360 degrees with top and side discharge
Built-in spring loaded check valve and accumulator – no tank required
Key Features

• Dry run protection & automatic restart below 60°C
• Water leakage detection which minimises pump cycling
• High current shutdown & low voltage indication
• High water temp protection
• Built-in check valve
• No tank necessary

Applications

• From underground or surface water supplies
• Domestic, light industrial, & garden irrigation
• Applications where pressure “cycling” must be avoided or where the pump may have interrupted water supply
• Homes with low incoming municipal water supply pressure

Economical Choice. The Davey BT30-30 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump’s cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure “cycling” must be avoided or where the pump may have interrupted water supply.
Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.
BT Home Pressure System Max System Pressure Max Boost Nominal Flow Voltage Usage Single / Multi Stage

• BT14-30 76 PSI38 PSI14 GPM120V/1Small homes or WeekendersSingle Impeller*
• BT14-45 100 PSI58 PSI14 GPM120V/1Small two stories or long runsMulitistage Centrifugal Pump – has suction lift of 25′
• BT20-30 50 PSI50 PSI20 GPM120V/1Large homesMulitistage Centrifugal Pump – has suction lift of 25′
• BT20-40 100 PSI78 PSI20 GPM220-240V/1Average to large homes with two stories or large runsMulitistage Centrifugal Pump – has suction lift of 25′
• BT30-30 100 PSI50 PSI30 GPM220-240V/1Large homesSingle Impeller*

*PLEASE NOTE: Single Impeller systems do not have the same suction lift as the Multistage systems.

BT Home Pressure System	Max System Pressure	Max Boost	Nominal Flow	Voltage	Usage	Single / Multi Stage
BT14-30	76 PSI	38 PSI	14 GPM	120V/1	Small homes or Weekenders	Single Impeller
BT14-45	100 PSI	58 PSI	14 GPM	120V/1	Small two stories or long runs	Mulitistage Centrifugal Pump – has suction lift of 25′
BT20-30	50 PSI	50 PSI	20 GPM	120V/1	Large homes	Mulitistage Centrifugal Pump – has suction lift of 25′
BT20-40	100 PSI	78 PSI	20 GPM	220-240V/1	Average to large homes with two stories or large runs	Mulitistage Centrifugal Pump – has suction lift of 25′
BT30-30	100 PSI	50 PSI	30 GPM	220-240V/1	Large homes	Single Impeller
