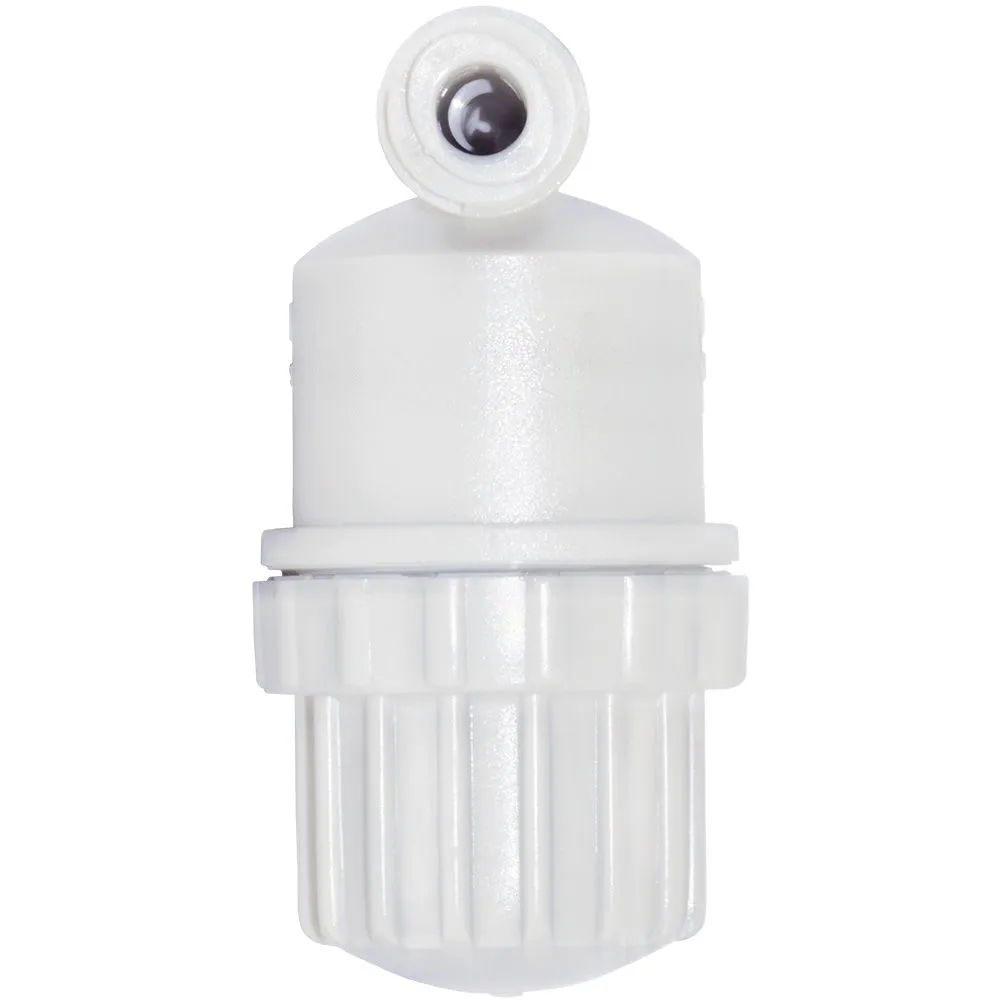

DMfit Filter Strainer 1/4″ x 1/4″ Push-in – 100 mesh (150 mic)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: ADMF0404

CATEGORY: Fittings & Connectors

Description

The DMfit Strainers are used for the protection of your pumps, filters, and other more expensive equipment. These strainers prevent damage by keeping debris and other particles out of your pumps and filters, which eliminates unnecessary and costly repairs. They also allow you to easily reduce your filter consumption. The filter screen uses perforated mesh media to strain out these particles. With the filter screen removed, the strainer can also be used as an injection port for sanitizing.
Features:

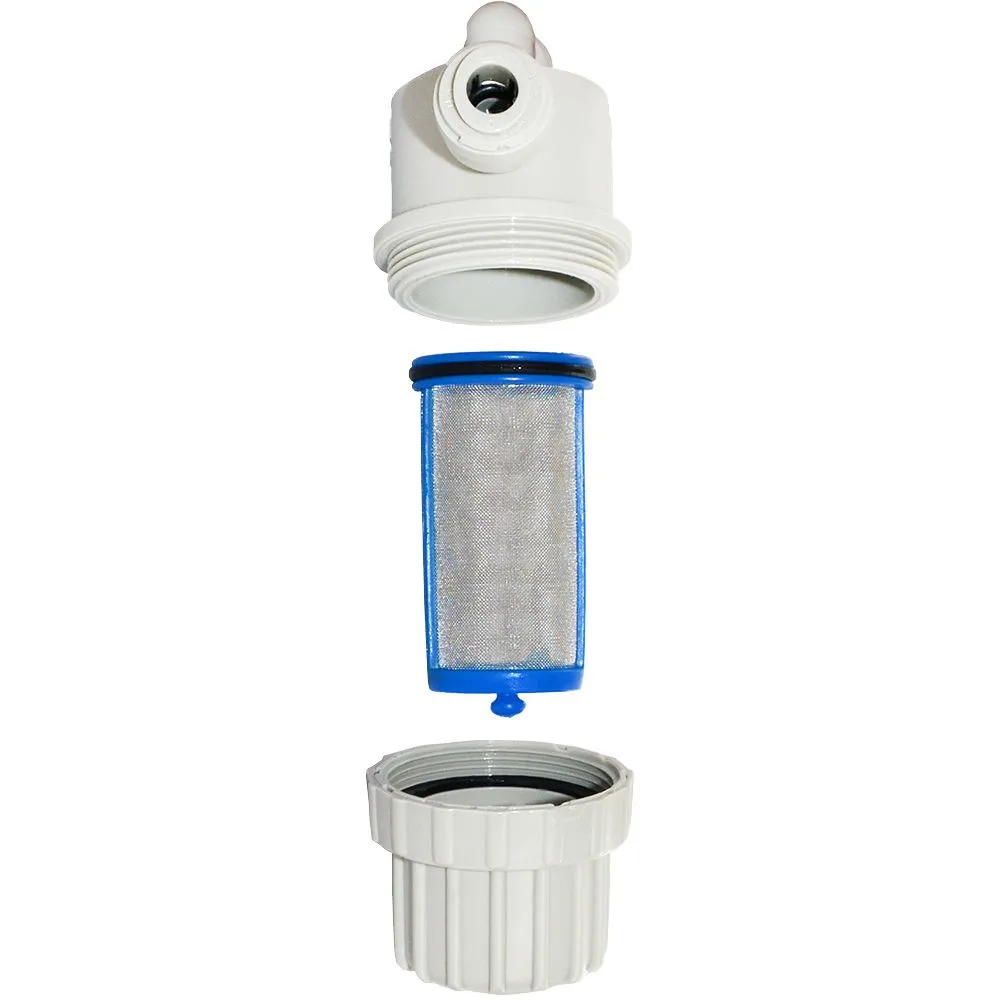

The detachable CAP and BODY allow for easy servicing and cleaning
Can be used with a variety of chemicals and gases. However, when using with other than water or air, please refer to the Chemical Compatability Tables or consult with your DMT representative
Compatible with DMfit tube and fittings, as well as standard-sized tubing from a variety of other manufacturers
Stainless Steel Filter Strainer: 100 mesh (150 micron)

Specifications:

Inlet/Outlet: 1/4″ Push-in
Strainer: 100 mesh (150 micron)
Max. Operating Pressure: 170psi
Max. Operating Temp: (-20F) – (+185F)

NOTE: Do not apply excessive vibration, torque, shock or other strong loads to the filter. The filter body may be damaged or collets may be dislocated.

Specifications

Product Details
Body Material	Acetal
Max Pressure (Psi)	170
Max Temp (°F)	185
Min Temp (°F)	-20
Color / Finish	Gray
Diameter	1/4
Origin	Korea
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	2 in.
Product Weight & Dimensions
Product Height	1.5
Product Length	2.75
Product Width	2.5
Product Weight (lbs)	0.101

Product Details
Body Material	Acetal
Max Pressure (Psi)	170
Max Temp (°F)	185
Min Temp (°F)	-20
Color / Finish	Gray
Diameter	1/4
Origin	Korea
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	10 in.
Shipping Height	2 in.
Product Weight & Dimensions
Product Height	1.5
Product Length	7
Product Width	6.75
Product Weight (lbs)	0.844

Product Details
Body Material	Acetal
Max Pressure (Psi)	170
Max Temp (°F)	185
Min Temp (°F)	-20
Color / Finish	Gray
Diameter	1/4
Origin	Korea
Product Weight & Dimensions
Product Weight (lbs)	30

Product Details
Body Material	Acetal
Max Pressure (Psi)	170
Max Temp (°F)	185
Min Temp (°F)	-20
Color / Finish	Gray
Diameter	1/4
Origin	Korea
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	6.25
Product Length	11.25
Product Width	8
Product Weight (lbs)	4

Product Information

SKUADMF0404
CategoryFittings & Connectors

DMfit Filter Strainer 1/4″ x 1/4″ Push-in – 100 mesh (150 mic)

Specifications

Product Information

Related products

DMfit Female Adapter – 3/8″ Push-in x 1/2-16 UN

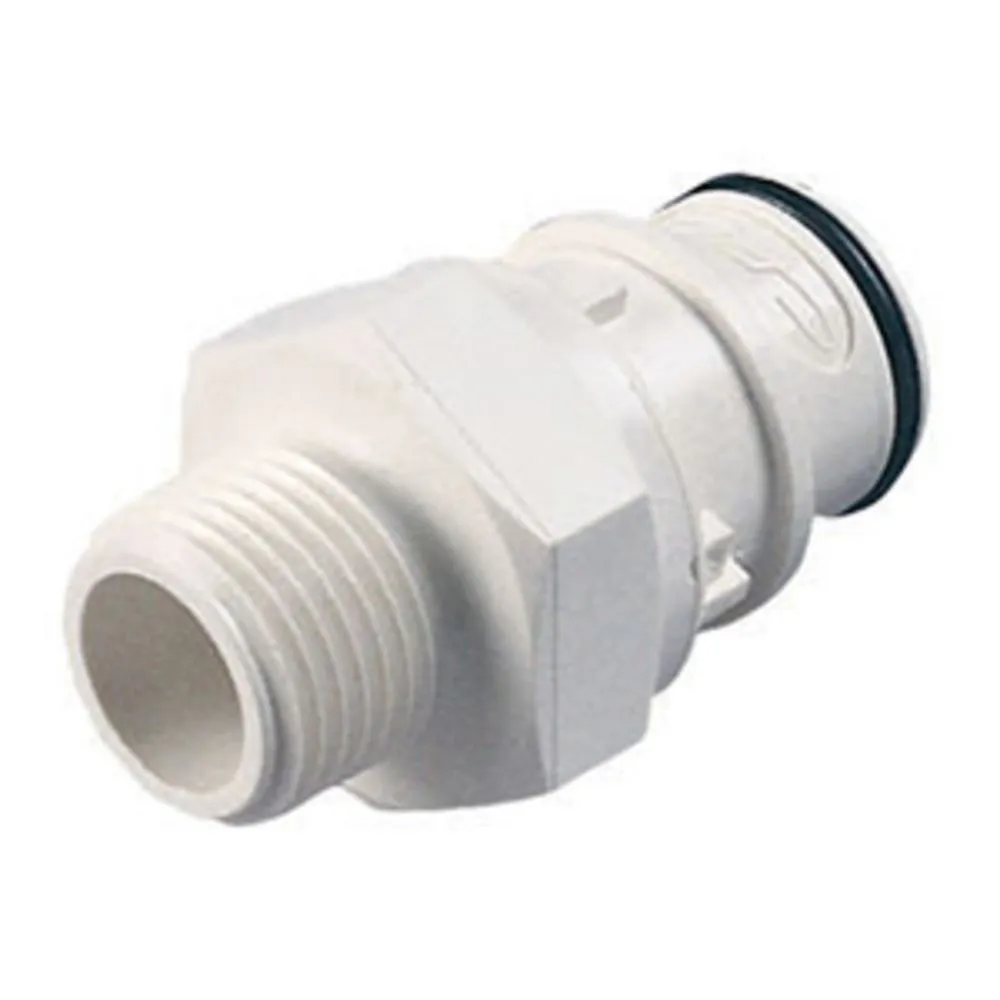

HFC241235 Male Thread Coupling Insert 3/4 NPT
