Home › Pumps & Tanks › Water Pumps › Grundfos MQ3-45 (230V) 1 HP Pressure Booster Pump – 96860207
Water Pumps

Grundfos MQ3-45 (230V) 1 HP Pressure Booster Pump – 96860207

Original price was: $679.99.Current price is: $136.00.
🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: MQ3-45-2
CATEGORY: Water Pumps
Description
TheGrundfos MQ3-45 (230V) 1 HP booster pump is compact and easy to install. The pressure switch and water storage tank are already built into the MQ. The settings are clearly indicated on the user-friendly control panel with indicator lights for pump on/off and auto-reset and an alarm indicating dry running or overheating.
Grundfos MQ is built to provide clean water with no hassle. The anti-cycling feature prevents the pump from repeatedly starting and stopping with a dripping tap or minor leakage. When no water is available, the pump stops to protect itself and restarts automatically when water is available again.
Features:

  • Compact design: Because of its compact design, the pump requires no additional space around it.
  • Built-in protection: During dry running, excessive temperature, or any overload condition the pump will stop automatically, preventing a motor burnout.
  • Convenient all-in-one design: The Grundfos MQ is designed boost low water pressure for domestic water supply and a variety of other applications.
  • Simple operation: The pump features a user-friendly control panel with an ON/OFF button and lights to indicate the pump’s performance.

Applications:

  • Automatic reset
  • Low noise level
  • Pressure tank
  • Limited two-year warranty

NOTE: This booster pump must be placed in area that will not freeze. Placing a pump in an area with temperatures below freezing will void the Grundfos warranty.
WARRANTY: Products manufactured by Grundfos Pumps Corporation are warranted to the original user to be free of defects in material and workmanship for a period of 24 months from date of installation, but not more than 30 months from date of manufacture.

Specifications

Product Details

Ambient Temperature Range

32-113 °F

Inlet Connection

1″ MPT

Inlet Pressure

44 PSI

Liquid Temperature

32-95 °F

Outlet Connection

1″ MPT

Power

1 hp

716 Watts

Pump Max Flow Rate (Gpm)

22

Pump Max Pressure (Psi)

108

Series

MQ3

Size

1″

Suction Lift

26 ft Max

Voltage Type

AC

Connection Type

Male (MPT)

Voltage

230VAC
Warranty & Certifications

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation.
Shipping Dimensions

Shipping Length

24 in.

Shipping Width

10 in.

Shipping Height

14 in.
Product Weight & Dimensions

Product Height

14

Product Length

24

Product Width

10

Product Weight (lbs)

34
Product Details

Ambient Temperature Range

32-113 °F

Inlet Connection

1″ MPT

Inlet Pressure

44 PSI

Liquid Temperature

32-95 °F

Outlet Connection

1″ MPT

Power

1 hp

716 Watts

Pump Max Flow Rate (Gpm)

22

Pump Max Pressure (Psi)

108

Series

MQ3

Size

1″

Suction Lift

26 ft Max

Voltage Type

AC

Connection Type

Male (MPT)

Voltage

230VAC
Warranty & Certifications

Warranty

Products manufactured by Grundfos Pumps Corporation are warranted to the original user only to be free of defects in material and workmanship for a period of 24 months from date of installation.
Product Weight & Dimensions

Product Weight (lbs)

307.5

Product Information

Related products

Water Pumps

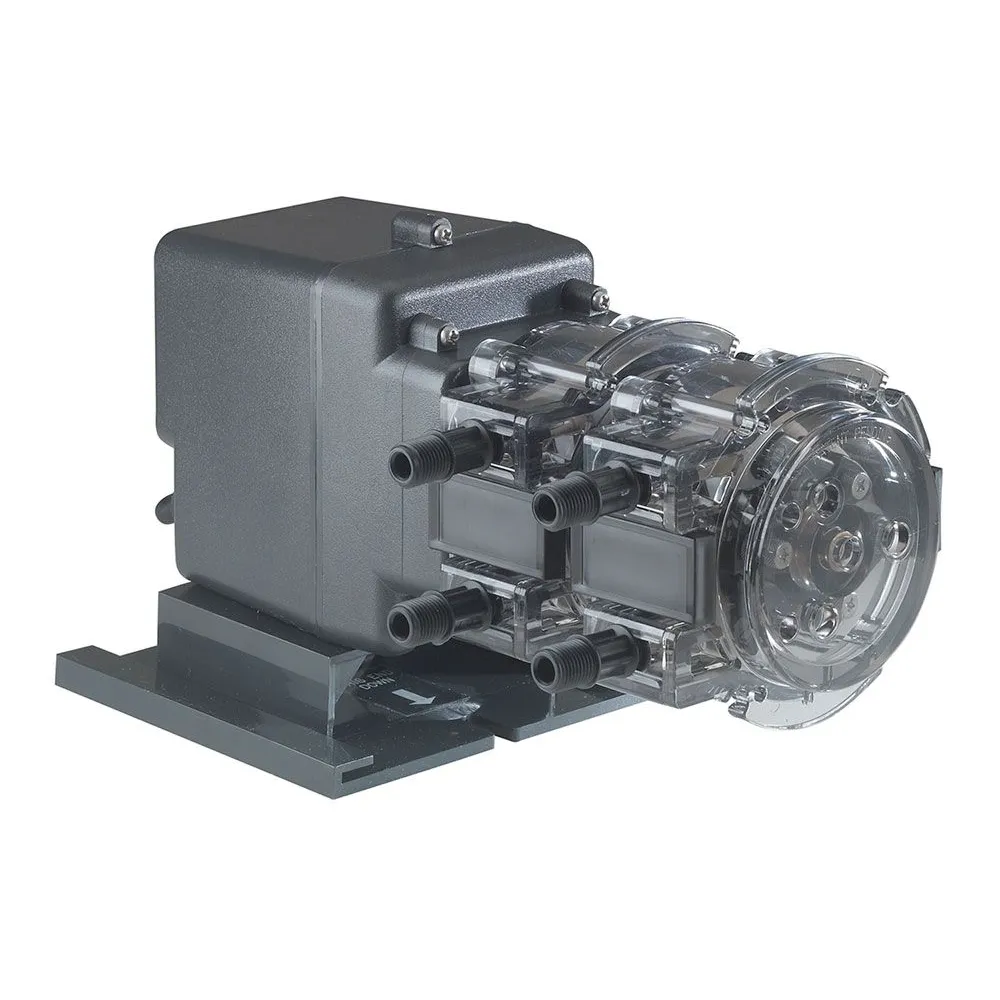

Stenner 100DMP4 Double Head Fixed Output Low Pressure Pump | 100DMP4
