HM Digital PSC-154 Extended Range EC/TDS Controller with 4-20mA Output

Original price was: $206.42.Current price is: $51.60.
🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: PSC-154
CATEGORY: RO Systems
Description

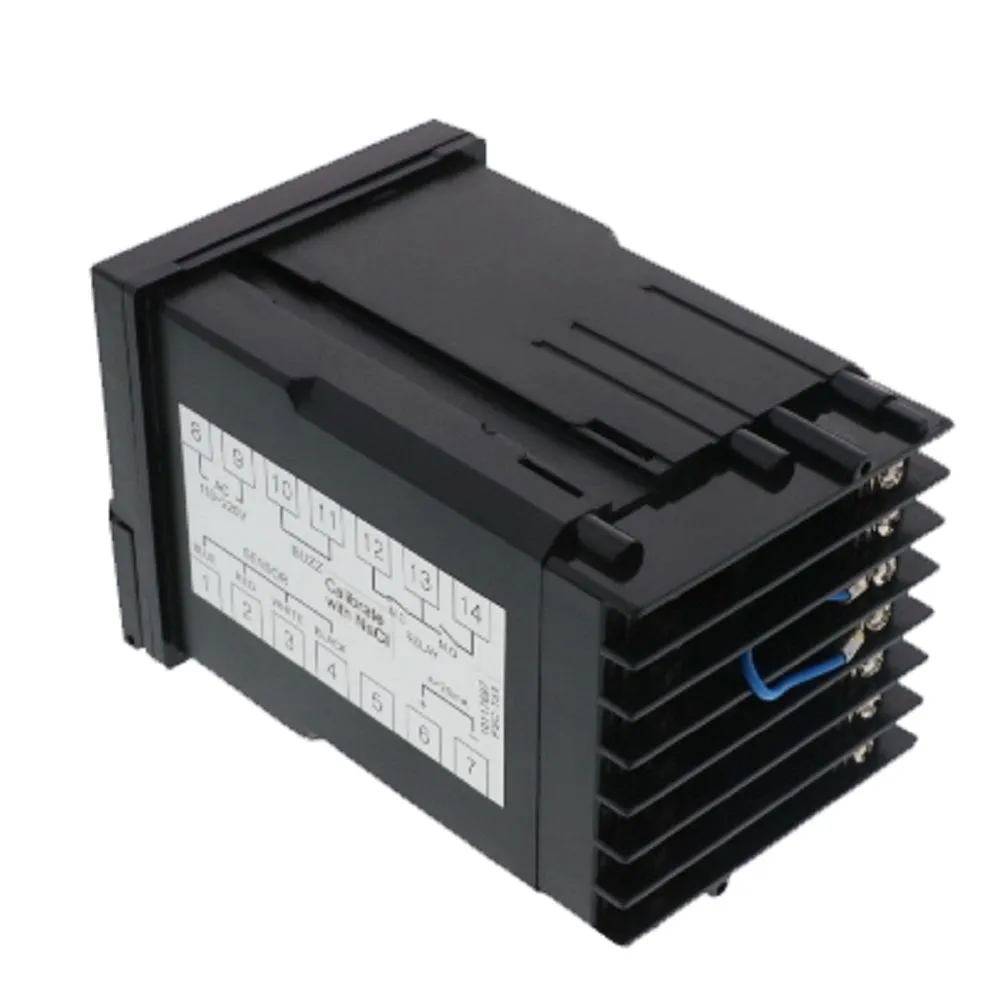

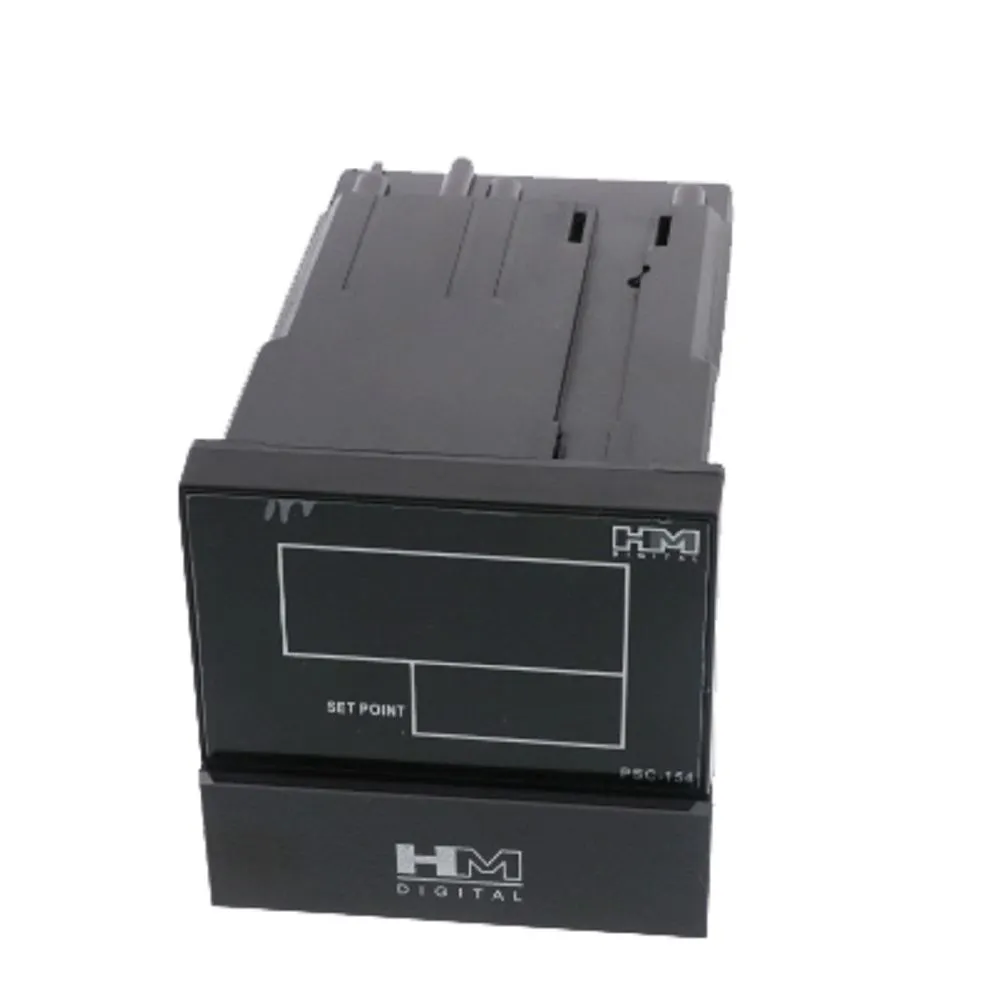

The HM Digital PSC-154 EC/TDS Controller reads in an extended range to monitor and control TDS levels for high output commercial systems. If the TDS level rises above the user-set level, an alarm will sound and the unit will open or close a circuit via dry contacts to control a pump, solenoid valve or other external device. External devices must have their own power supply.
Features:

  • Monitors and controls TDS/EC level for high output commercial systems.
  • Large, bright L.E.D. display
  • 4-20mA output signal can connect to a PLC to record values.
  • An alarm will sound if the TDS level rises above the user-set level.
  • A switch will control a device based upon the set point.
  • On-screen temperature display (C/F).
  • Installs easily in minutes

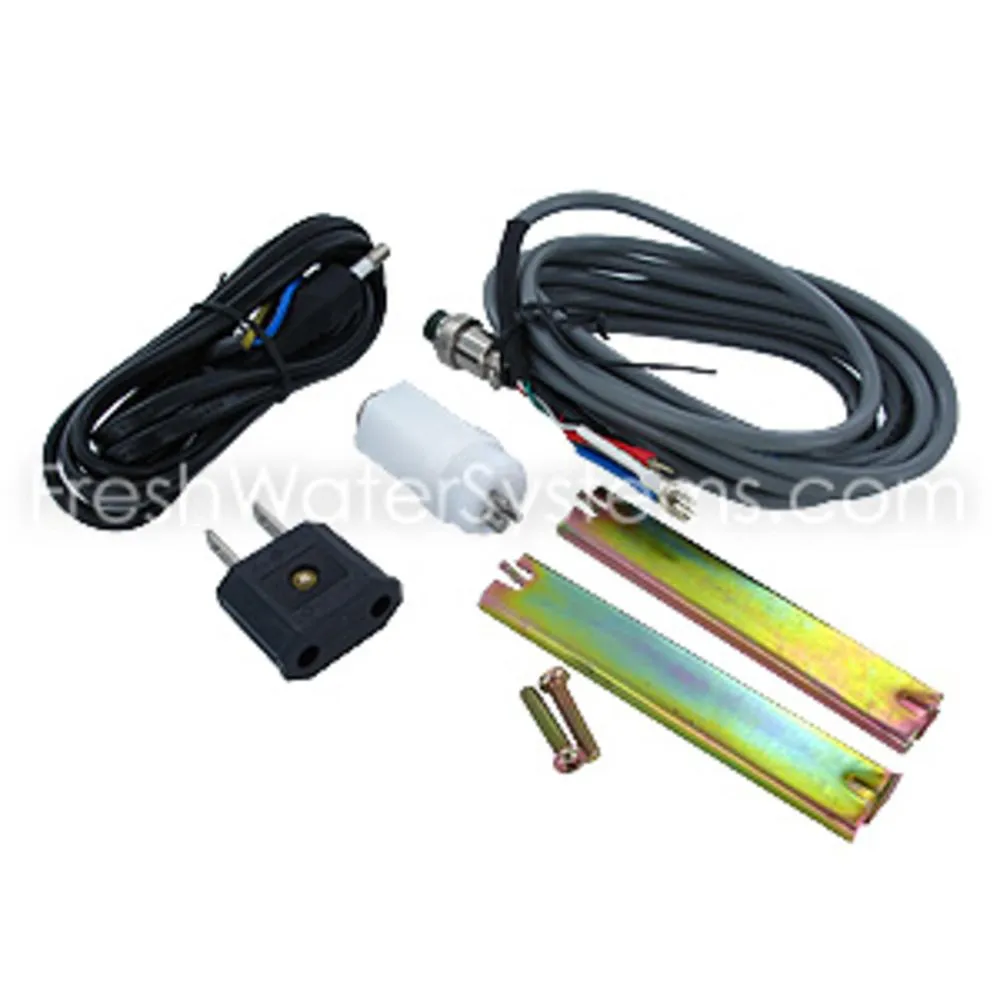

  • Includes one sensor probe
  • One year warranty

Specifications

Product Details

Accuracy

± 1% mA

Amps

4-20 mA

Features

Bright 5/8″ L.E.D. display

Auto Temp Control (1 – 65°C)

Max Temp (°F)

167

Min Temp (°F)

33

Power Source

AC 110V / AC 220V

Warranty & Certifications

Warranty

1 Year

Shipping Dimensions

Shipping Length

6 in.

Shipping Width

7 in.

Shipping Height

4 in.

Product Weight & Dimensions

Approx Depth

4

Product Height

4 in.

Product Length

6 in.

Product Width

7 in.

Product Weight (lbs)

1.4
