The SOFTENER-HE-30-FG system uses advanced smart meter technology to effectively treat severe hard water conditions up to 30,000 grains. This salt-based water softener uses an advanced fully-automatic electronic meter that monitors water consumption and automatically adjusts to changing water usage to reduce unnecessary salt and water use. By properly managing the salt-regeneration cycles, the SOFTENER-HE-30-FG will save you time, money and trouble through its smart electronics softening process.
The SOFTENER-HE-30-FG was designed using the most advanced technologies in the industry to provide you with truly luxurious soft water throughout your entire home without the hassle, inefficiencies and costs of traditional water softeners. This system utilizes a solid state microprocessor and nonvolatile memory to manage water usage and maintain user settings during a power outage.
Sample Whole House Water Treatment Setup
|
Water Hardness
|
Number Of Household Members
|
|||
|---|---|---|---|---|
|
In Grains Per Gallon
|
1-2 Members
|
3-4 Members
|
5-6 Members
|
7-8 Members
|
|
1-10
|
SOFTENER-HE-30-FG
|
SOFTENER-HE-30-FG
|
SOFTENER-HE-30-FG
|
|
|
11-20
|
SOFTENER-HE-30-FG
|
Custom Made
|
||
|
21-30
|
SOFTENER-HE-30-FG
|
Custom Made
|
Custom Made
|
Custom Made
|
|
Water Hardness:
In Grains Per Gallon |
# Of Household Members
|
Product
|
|
1-10
|
1-2 Members
|
SOFTENER-HE-30-FG
|
|
1-10
|
3-4 Members
|
SOFTENER-HE-30-FG
|
|
1-10
|
5-6 Members
|
SOFTENER-HE-30-FG
|
|
1-10
|
7-8 Members
|
|
|
11-20
|
1-2 Members
|
SOFTENER-HE-30-FG
|
|
11-20
|
3-4 Members
|
|
|
11-20
|
5-6 Members
|
|
|
11-20
|
7-8 Members
|
Custom Made
|
|
21-30
|
1-2 Members
|
SOFTENER-HE-30-FG
|
|
21-30
|
3-4 Members
|
Custom Made
|
|
21-30
|
5-6 Members
|
Custom Made
|
|
21-30
|
7-8 Members
|
Custom Made
|
Salt Based water softener calculation guide = The average family uses 70-75 gallons of water per person per day. For a household of four, you will need to soften about 300 gallons of water daily. For example, if your water hardness is rated 10 grains per gallon, you will need to remove 3000 grains per day (300 gallons x 10 grains). Based on your water softener that regenerates on average every seven days, your minimum softener capacity would be 21000 grains (3000 grains x 7 days).
*Chlorine 1ppm or over is recommended to be removed before the salt softener.
|

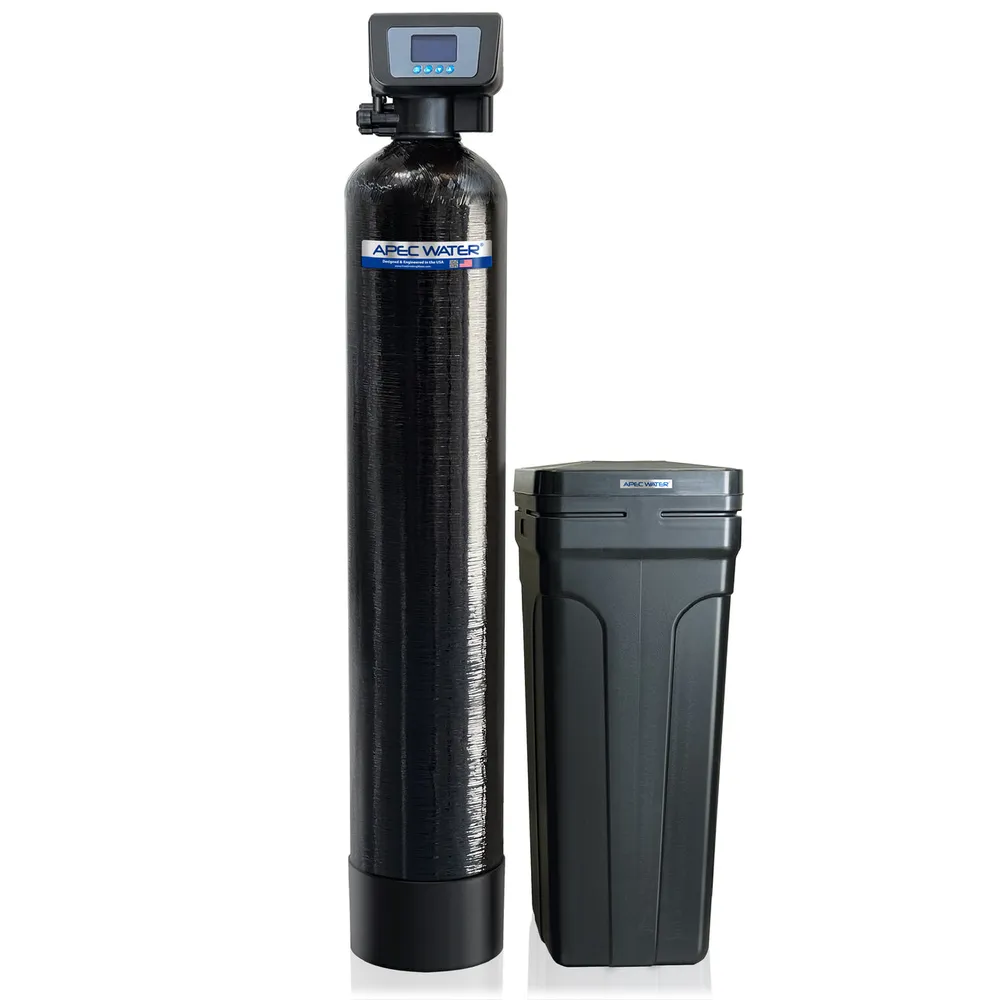

Hydro Express Water Softener 30
|
|
|---|---|
| Peak Flow Rate: | 17.6 Gallons Per Minute |
| System Capacity: | Max. Hardness of 30,000 Grains |
| System Body Dimensions: | 9″D x 48″H (55″H with control head) |
| Brine Tank Dimension: | 13.40″ x 13.40″ x 31.90″ |
| Filter Media: | Standard Resin 1.0 C.F. |
| System Weight: | 125 lbs |
| Feed Water Pressure: | 20-125 psi |
| Feed Water Temperature: | 34-110°F |
