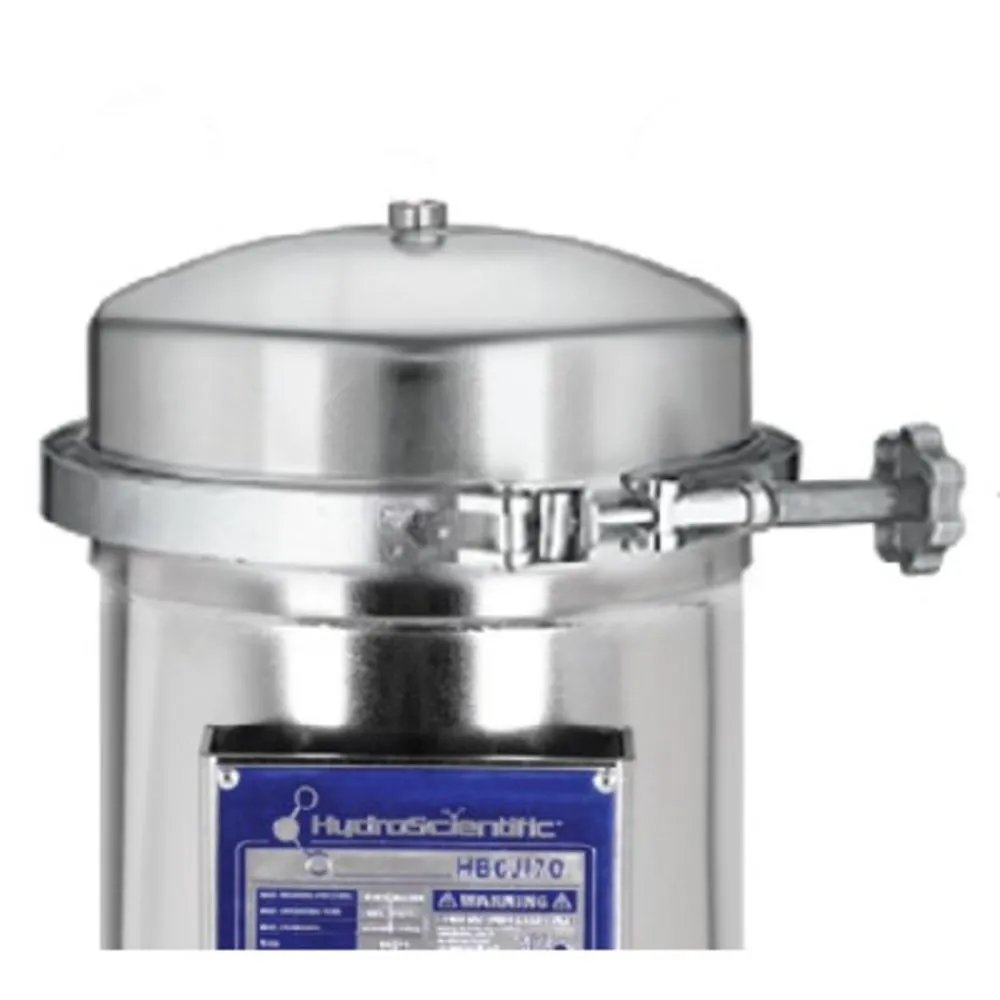

HydroScientific Band Clamp 90 Jumbo Filter Housing

Hydroscientific Band Clamp Jumbo Filter Housings provide exceptional performance and deliver durability, quality, and price.
Hydroscientific Band Clamp Jumbo Filter Housings come with stainless steel standpipes as a standard feature and through their JUMBO radial flow water entry, water enters the housing and forces water more effectively through the cartridges pleated filter media.
Applications:

• Residential, Commercial and Industrial
• Cooling Tower Filtration
• Whole House Filtration
• Process Water
• Well Water
• Small Community Compliance
• Industrial Waste Water Treatment

Features:

• 304 or 316 Stainless Steel.
• Electropolished standard on all models.
• Band Clamp Design for Fast / Easy / Safe Operation.
• Stainless Steel Standpipe.
• Accepts Jumbo Style Cartridges.
• Multiple Size options to best meet your application.

Materials of Construction:

• Housing Shell: 304 or 316 Stainless Steel
• Band Clamp Lid Closure: 304 or 316 Stainless Steel
• Vent and Drain Plugs: 304 or 316 Stainless Steel
• Heavy Duty Mounting Legs: 304 or 316 Stainless Steel
• O-Ring/Gasket: EPDM – FDA Grade (Viton, Silicone and EPR Options)

Operational Data:

• Max Working Pressure: 150 psi at 250 Deg. F (10.3 bar at 121 Deg. C)
• Max Operating Temperature: 250 Deg. F (121 Deg. C)
