Selecting the correct membrane for your Hydrotech reverse osmosis system:

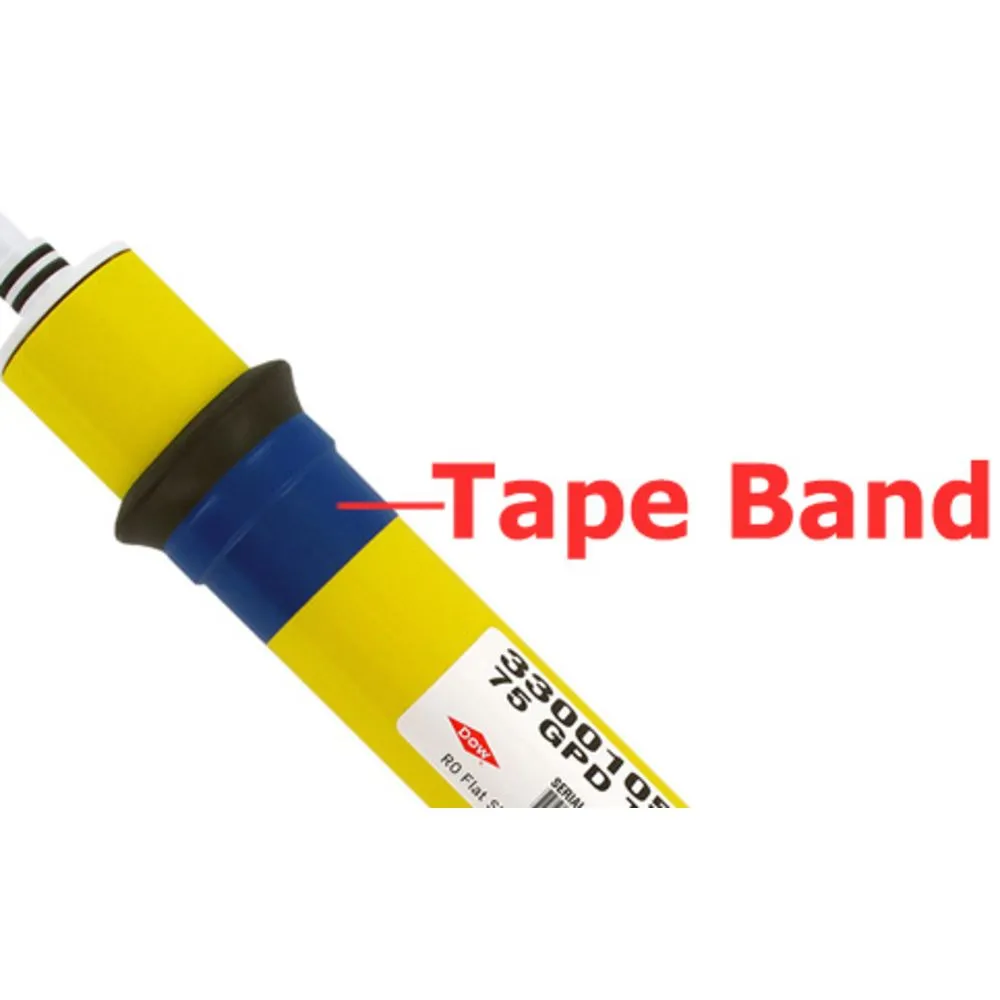

Hydrotech reverse osmosis membranes are available in thin film composite (TFC) or cellulose triacetate (CTA) and a number of different permeate flow rates. The easiest way to determine which membrane is right for your system is to match the color of the tape band wrapped around the membrane. TFC membranes will have a yellow or green wrap, along with the colored tape to identify the permeate flow rate. CTA membranes will have a blue wrap, along with the colored tape. Use the chart below to select the correct membrane.
| Model Number |
Description | Permeate Flow Rate |
Tape Color |
| 33001071 | Hydrotech TFC RO Membrane | 9 gpd | Red |
| 41400004 | Hydrotech TFC RO Membrane | 15 gpd | Yellow/Green |
| 33001068 | Hydrotech TFC RO Membrane | 25 gpd | Black |
| 41400006 | Hydrotech TFC RO Membrane | 35 gpd | Purple/Green |
| 33001033 | Hydrotech TFC RO Membrane | 50 gpd | White |
| 33001056 | Hydrotech TFC RO Membrane | 75 gpd | Blue |
| 41400001 | Hydrotech CTA RO Membrane | 9 gpd | Red |
| 41400002 | Hydrotech CTA RO Membrane | 15 gpd | Yellow |
Compatible with:
| Arrowhead Puritap | S-FS-02, 41400008 |
| Hydrotech | S-FS-02, 41400008 |
| Pentek | 255822-43 |
| Sierra Springs | S-FS-02, 41400008 |
| US Pure Water Products | S-FS-02, 41400008 |
| Product Details | |
|---|---|
|
Max Temp (°F) |
100 |
|
Min Temp (°F) |
40 |
|
Cartridge Style |
Drop-in |
|
Change Frequency |
6-12 Months |
|
Contaminants Reduced |
Sediment/Dirt/Rust |
|
Diameter |
1-7/8″ |
|
Media Type |
Polypropylene |
| Shipping Dimensions | |
|
Shipping Length |
11.5 in. |
|
Shipping Width |
1.31 in. |
|
Shipping Height |
1.75 in. |
| Product Weight & Dimensions | |
|
Product Height |
1.75 in. |
|
Product Length |
11.5 in. |
|
Product Width |
1.31 in. |
|
Product Weight (lbs) |
0.015625 |
