JG gray acetal is suitable for both compressed air and water (buna-n seal).

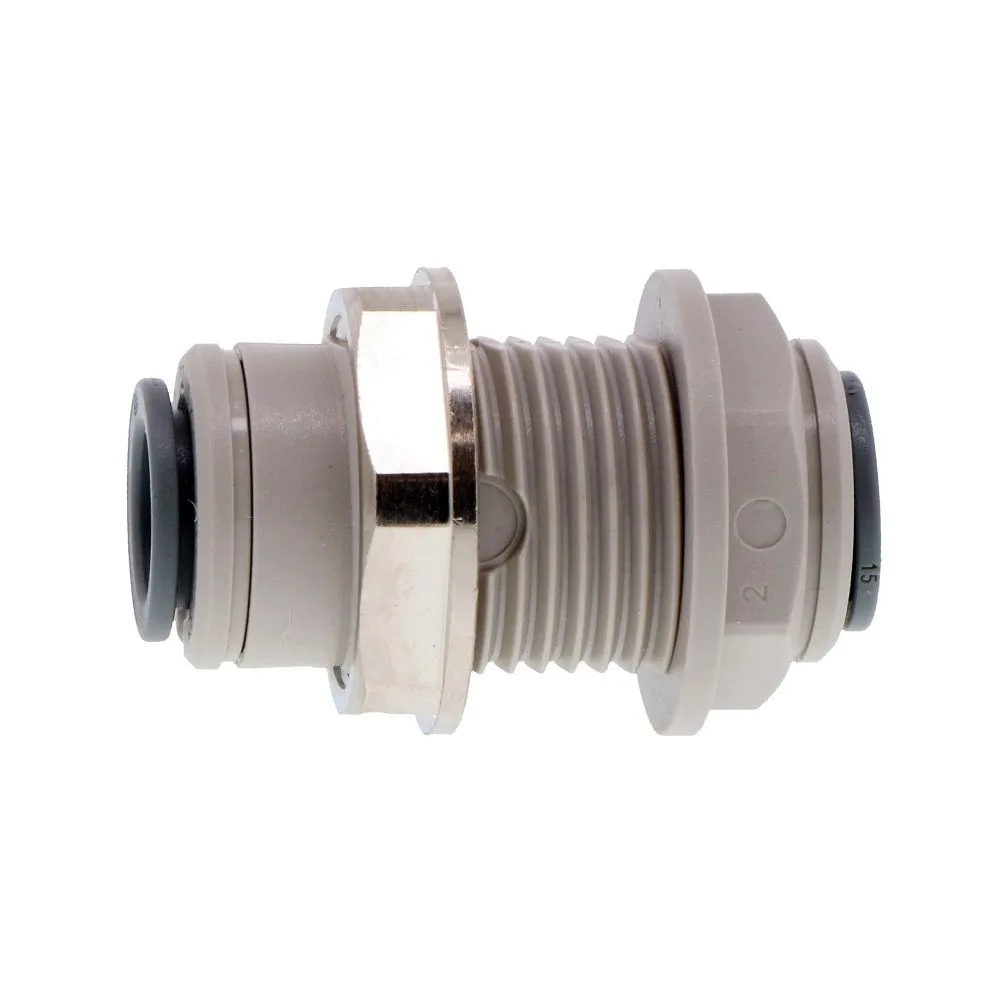

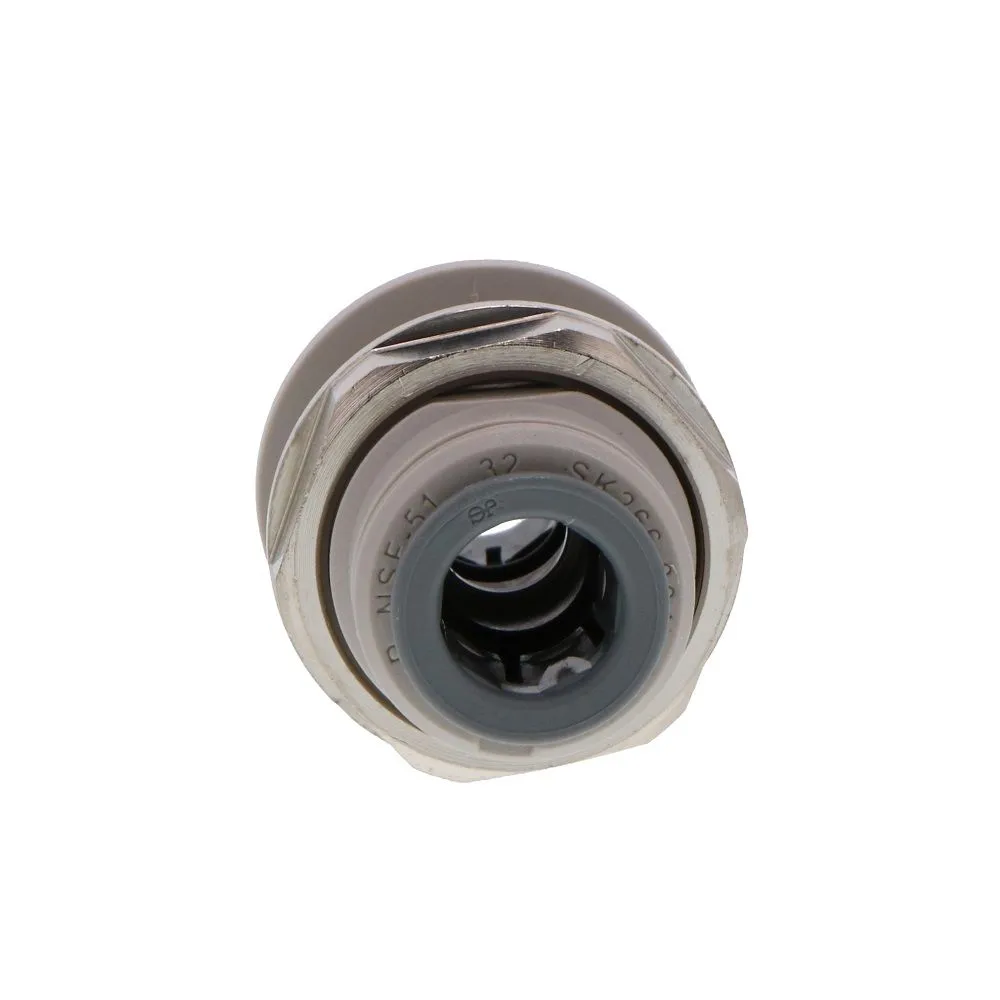

| 3/8″ x 3/8″ Bulkhead Unions | ||
| John Guest | DM fit | Parker LIQUIfit |

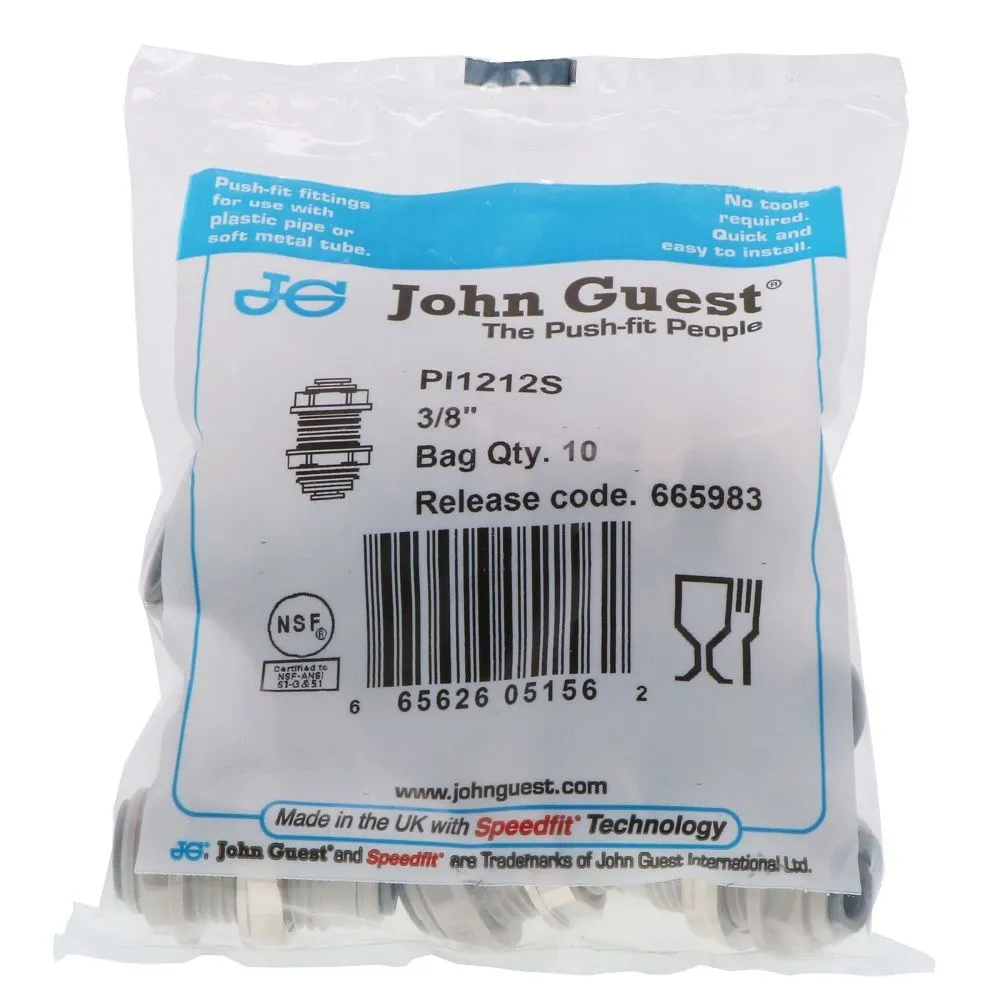

| PI1212S | ABU0606 | 6316-60-00WP2 |
| Min – Max Hole Size |
Min – Max Hole Size |
Min – Max Hole Size |
| 13/16″ to 61/64″ | 51/64″ to 15/16″ | 45/64″ to 53/64″ |
| Product Details | |
|---|---|
|
Application |
Water Air Food Beverage |
|
Body Material |
Acetal Copolymer |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Mounting Options |
Panel Mount |
|
Push-In Size |
3/8″ OD |
|
Seal Material |
Buna-N |
|
Series |
PI |
|
Shape |
Straight |
|
Color / Finish |
Gray |
|
Origin |
UK |
|
Sub-Type |
Union Bulkhead |
|
Type |
Bulkhead |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
