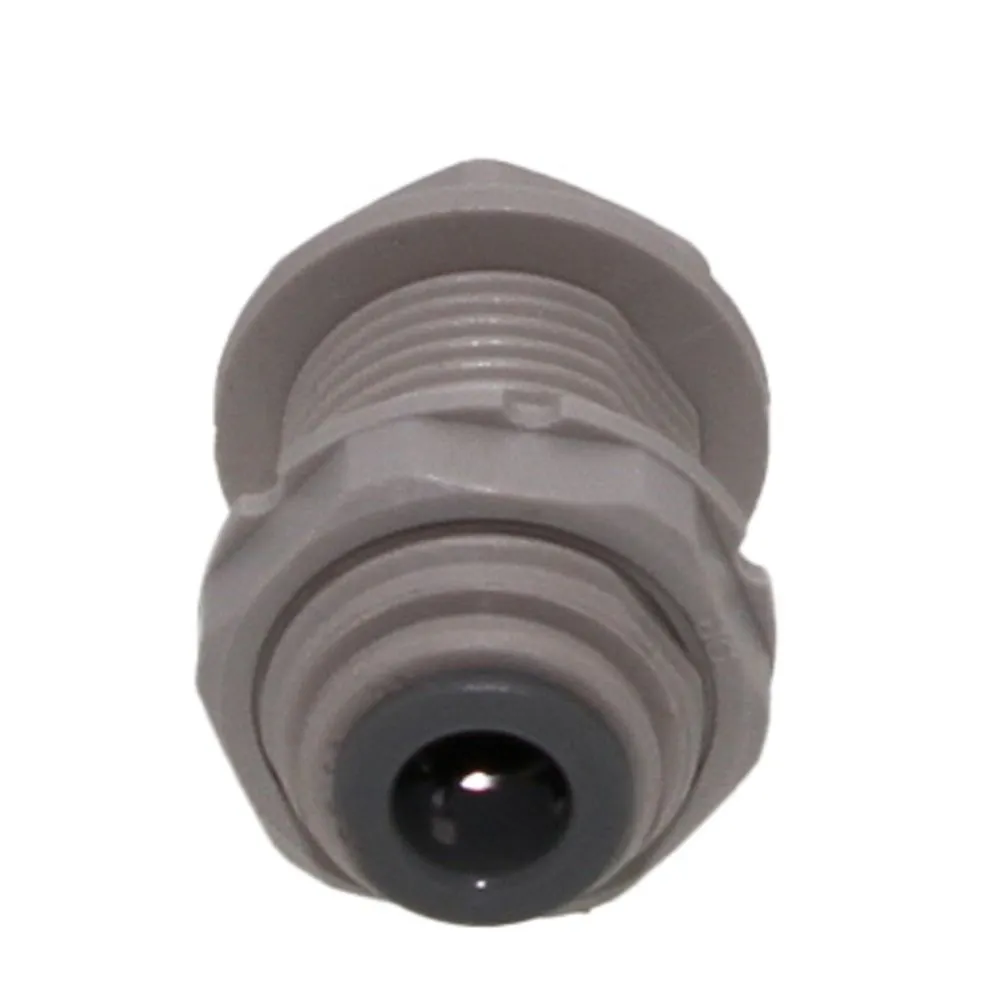

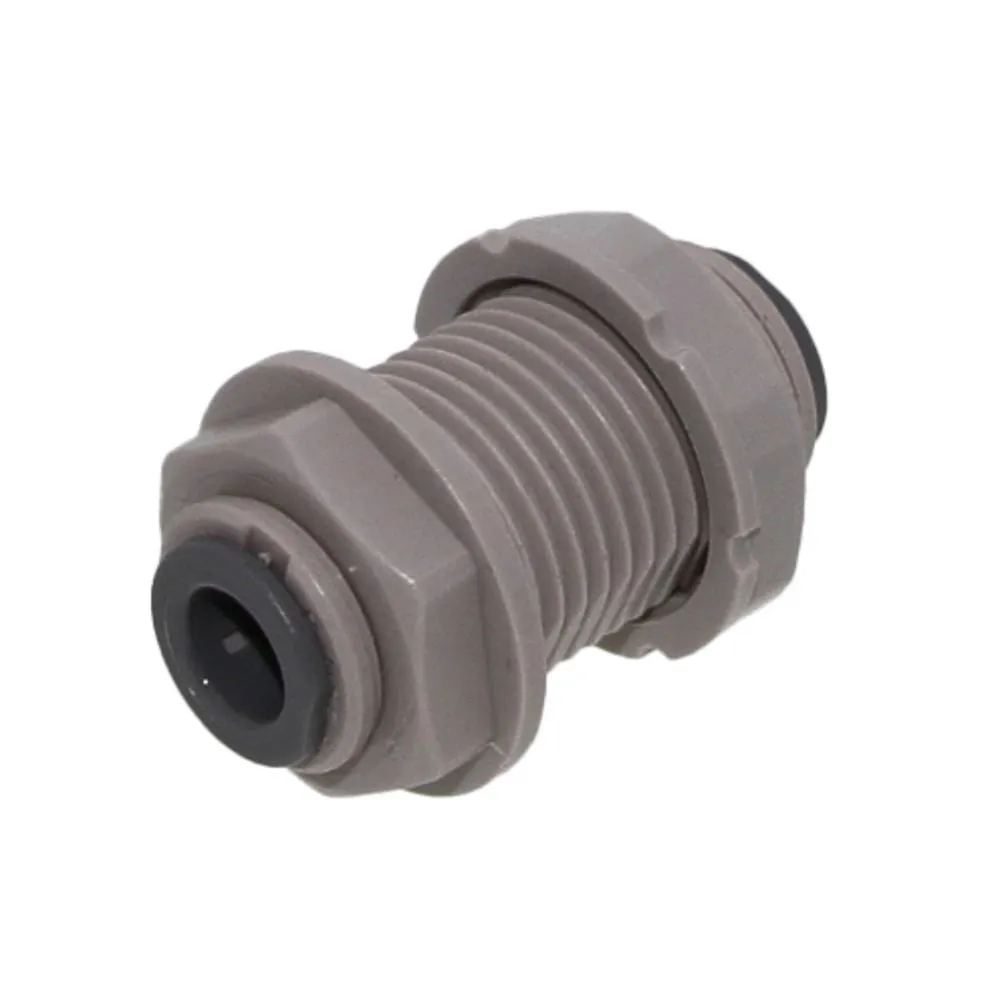

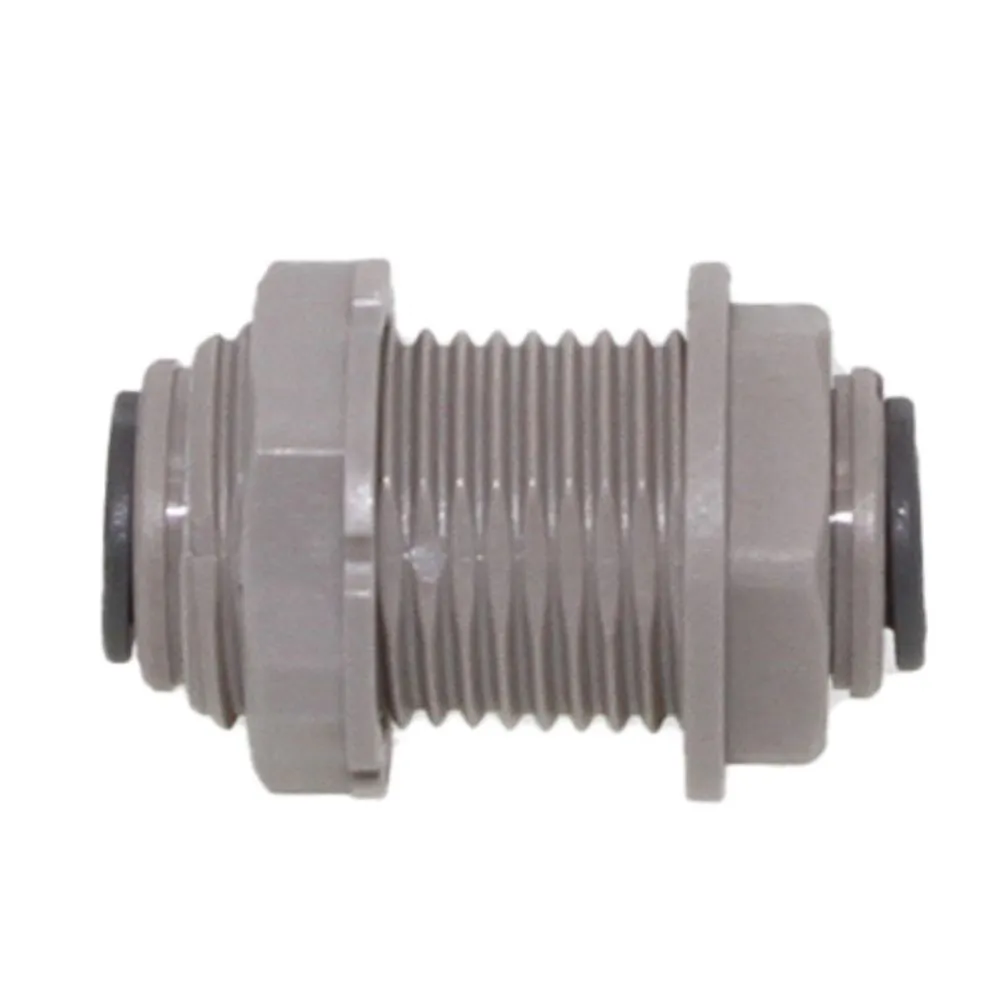

The John Guest bulkhead union is used to connect OD tubing through a cabinet wall or bulkhead. Manufactured in acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
Working pressure and temperature:
| 5/16″ x 5/16″ Bulkhead Unions | ||
| John Guest | DM fit | |
| PM1208S | ABU0505 | |
| Min – Max Hole Size |
Min – Max Hole Size |
|
| 52/64″ to 15/16″ | 52/64″ to 15/16″ | |
| Product Details | |
|---|---|
|
Application |
Water Air Food Beverage |
|
Body Material |
Acetal Copolymer |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Mounting Options |
Panel Mount |
|
Nut / Fitting Material |
Acetal |
|
Push-In Size |
5/16″ OD |
|
Seal Material |
Buna-N |
|
Series |
PI |
|
Shape |
Straight |
|
Color / Finish |
Gray |
|
Origin |
UK |
|
Sub-Type |
Union Bulkhead |
|
Type |
Bulkhead |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
