Fittings & Connectors

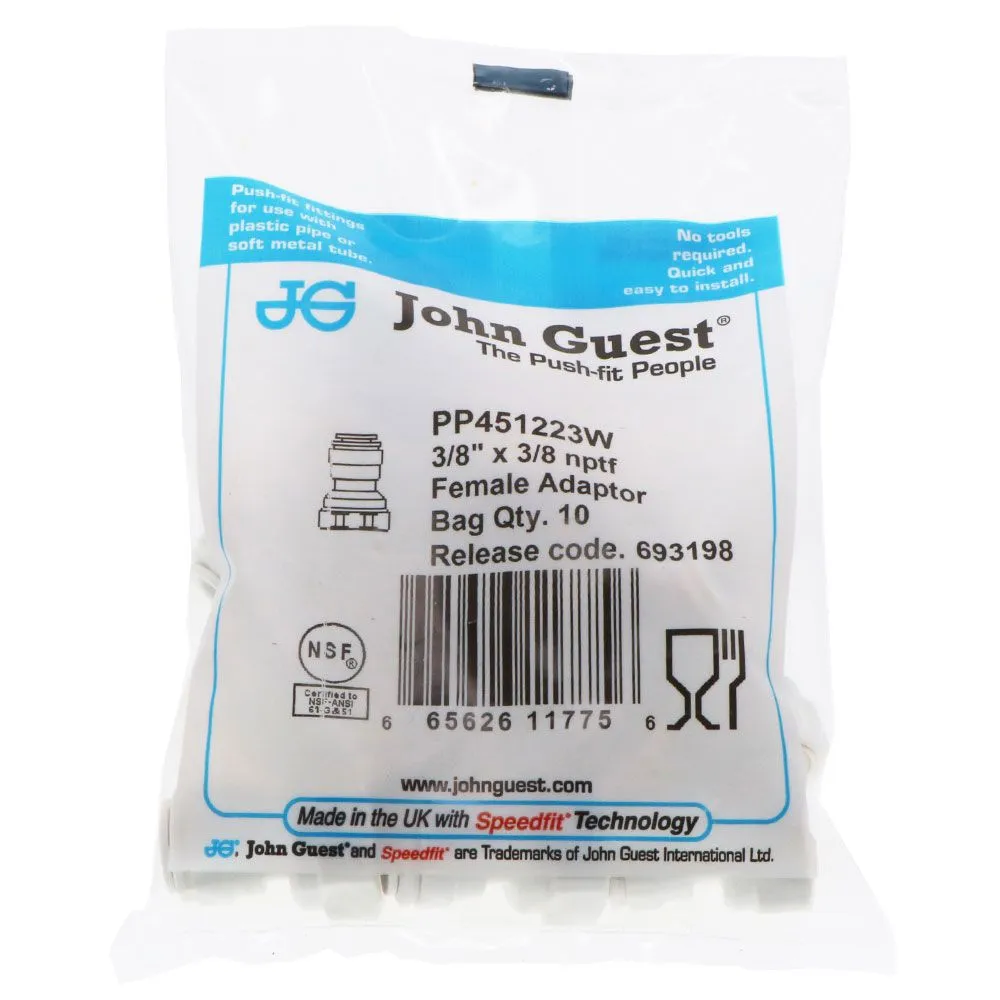

John Guest Female Adapter NPTF Polypro – 3/8 x 3/8 NPTF

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PP451223W

CATEGORY: Fittings & Connectors

Description

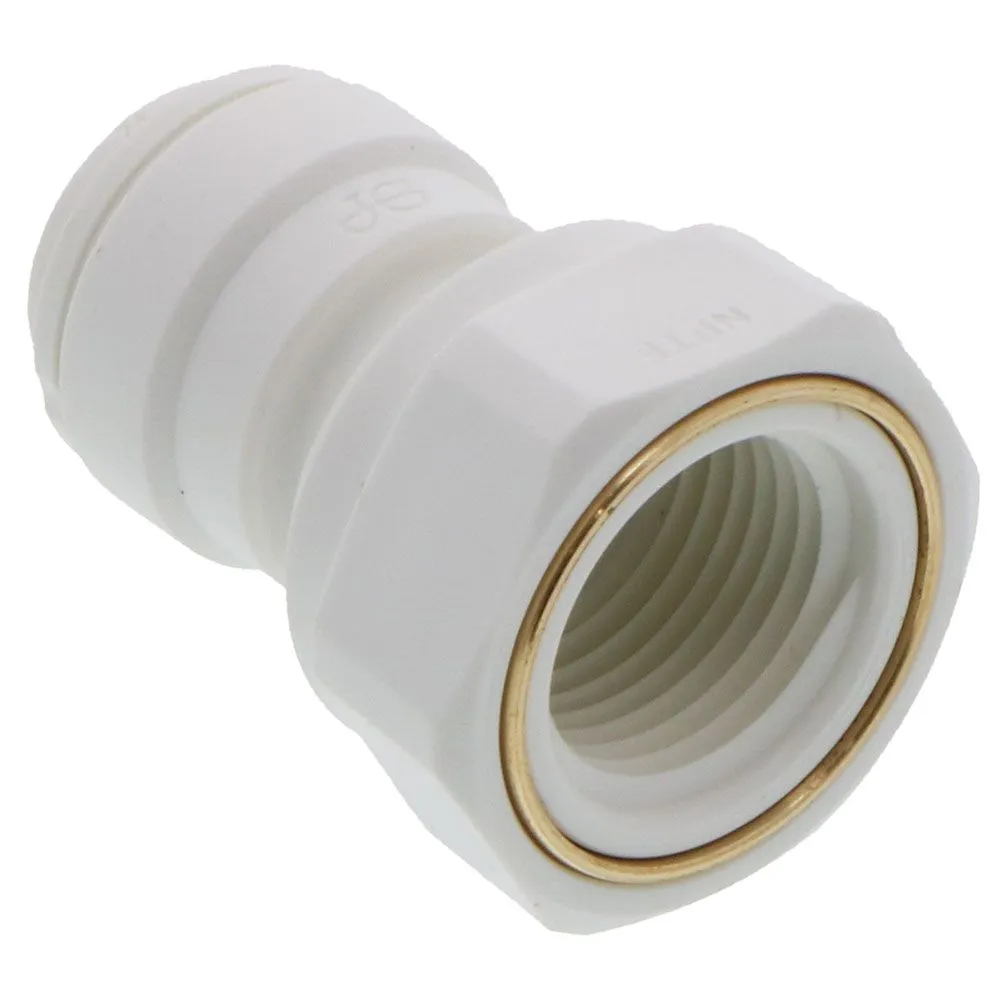

The John Guest female adapter makes connecting OD tubing to male NPT threads quick and easy. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing to male NPT Threads
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

Specifications

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Inlet Connection	3/8″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	3/8″ FPT
Push-In Size	3/8″ OD
Seal Material	EPDM
Series	PP
Shape	Straight
Size	3/8″
Color / Finish	White
Connection Type	Female (FPT)
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Inlet Connection	3/8″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	3/8″ FPT
Push-In Size	3/8″ OD
Seal Material	EPDM
Series	PP
Shape	Straight
Size	3/8″
Color / Finish	White
Connection Type	Female (FPT)
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Inlet Connection	3/8″ FPT
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	3/8″ FPT
Push-In Size	3/8″ OD
Seal Material	EPDM
Series	PP
Shape	Straight
Size	3/8″
Color / Finish	White
Connection Type	Female (FPT)
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year

Product Information

SKUPP451223W
CategoryFittings & Connectors

John Guest Female Adapter NPTF Polypro – 3/8 x 3/8 NPTF

Specifications

Product Information
