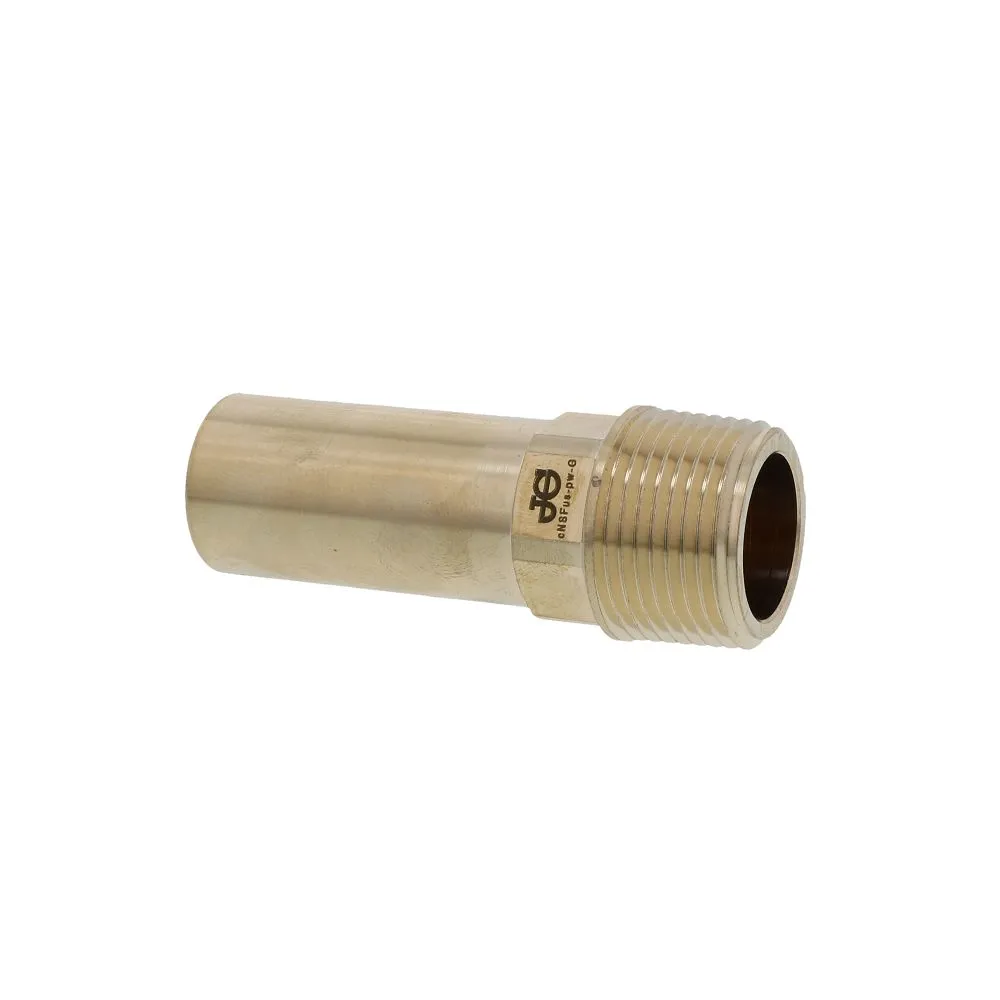

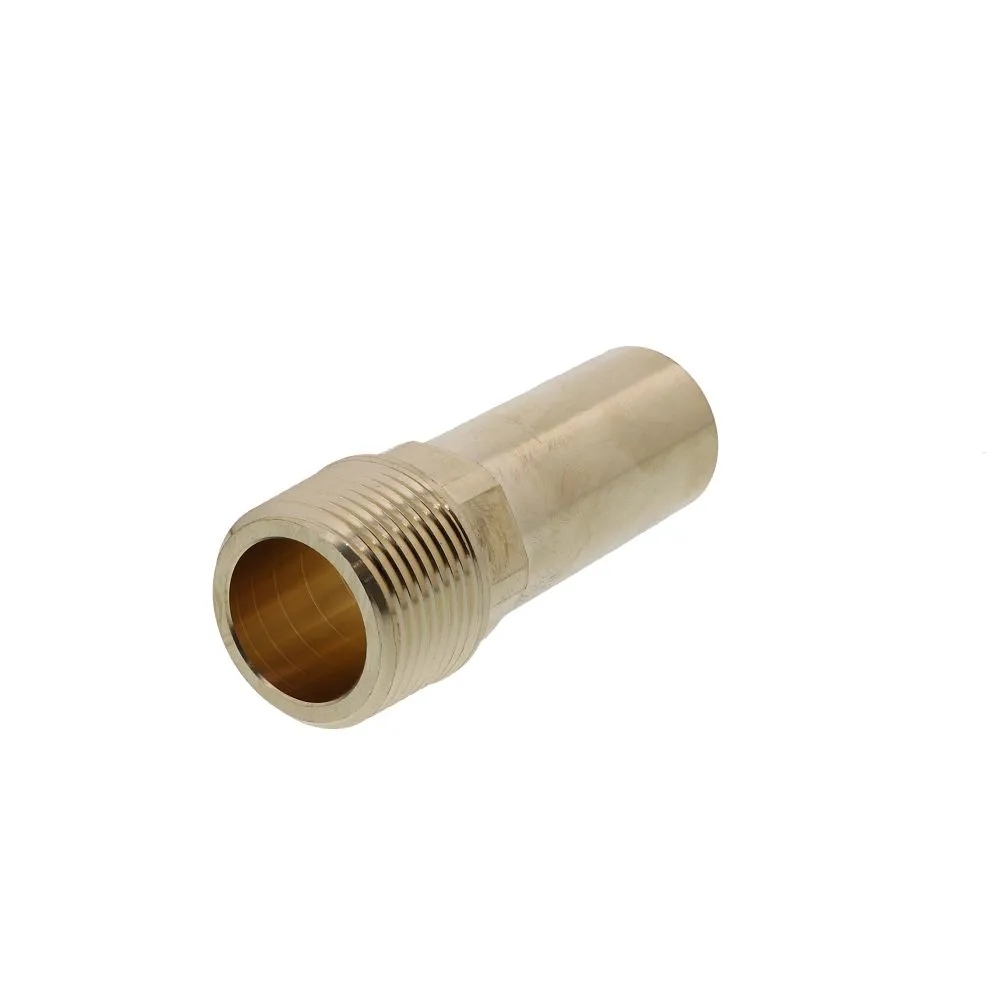

The John Guest brass male stem adaptor threads onto NPT female threads and provides a stem for connecting ProLock push-fit fittings. Fast and easy to use – no soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces.
Features & Benefits:
Working Pressure & Temperature:
| Specifications | |
|
|
| Product Details | |
|---|---|
|
Application |
Water |
|
Body Material |
Brass |
|
Inlet Connection |
3/4″ MPT |
|
Max Pressure (Psi) |
160 |
|
Max Temp (°F) |
200 |
|
Min Pressure (Psi) |
0 |
|
Min Temp (°F) |
33 |
|
Mounting Options |
Thread |
|
Outlet Connection |
3/4″ MPT |
|
Series |
ProLock |
|
Shape |
Straight |
|
Size |
3/4″ |
|
Stem Size |
7/8″ OD |
|
Color / Finish |
Brass |
|
Connection Type |
Male (MPT) |
|
Origin |
U.S.A. |
|
Sub-Type |
Male Adapter |
|
Type |
Adapter |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61 |
|
Warranty |
25 Years |
