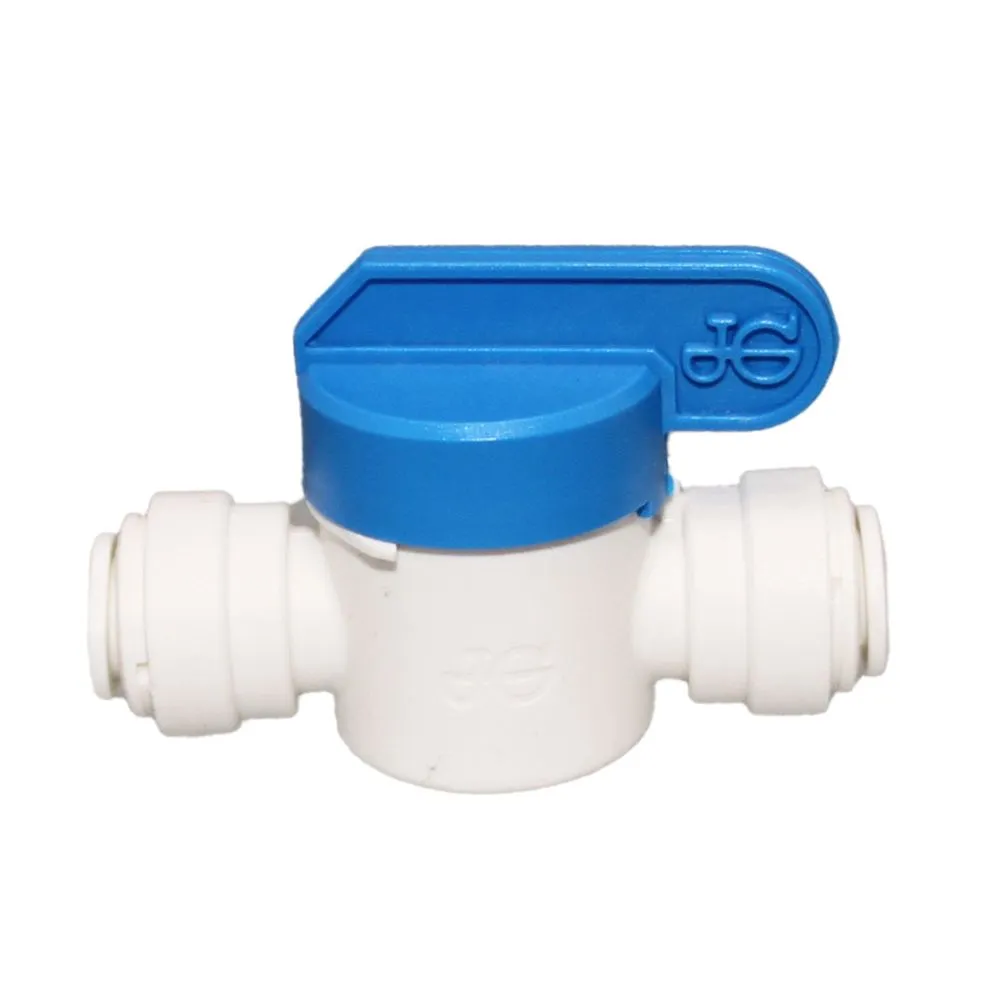

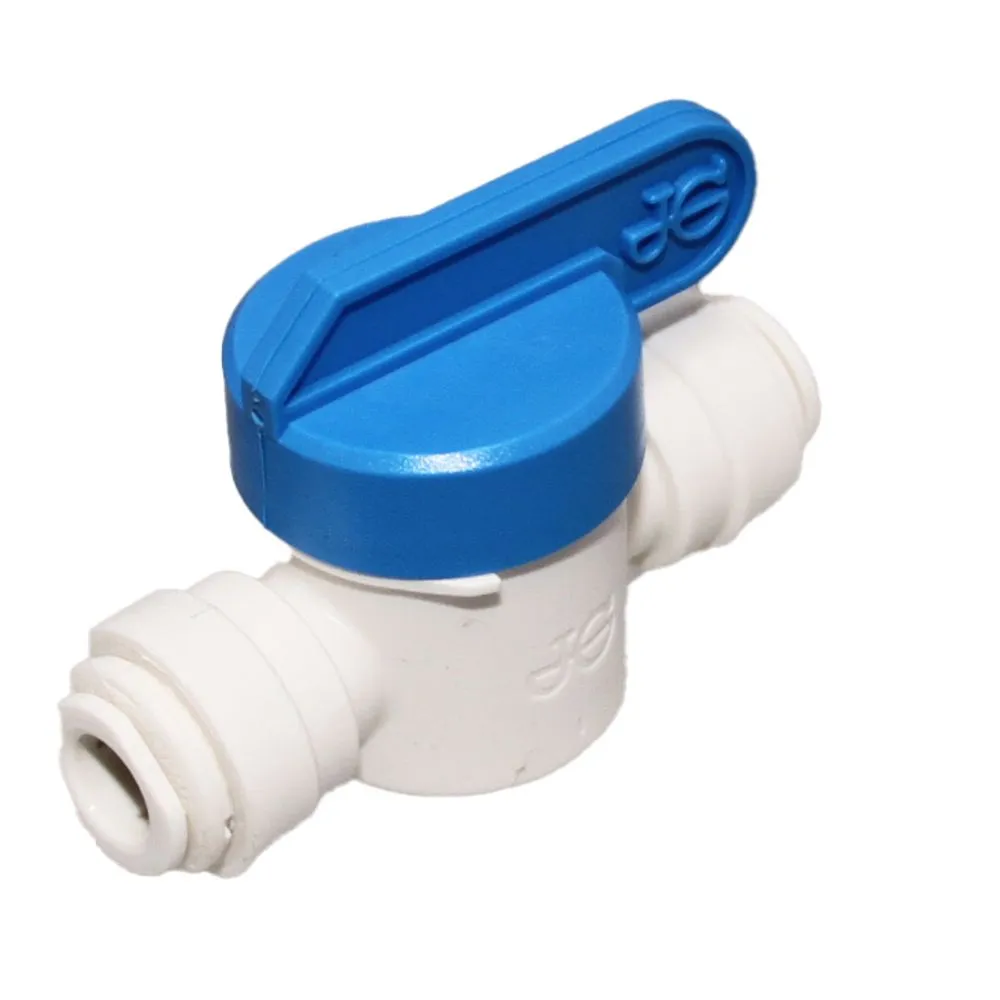

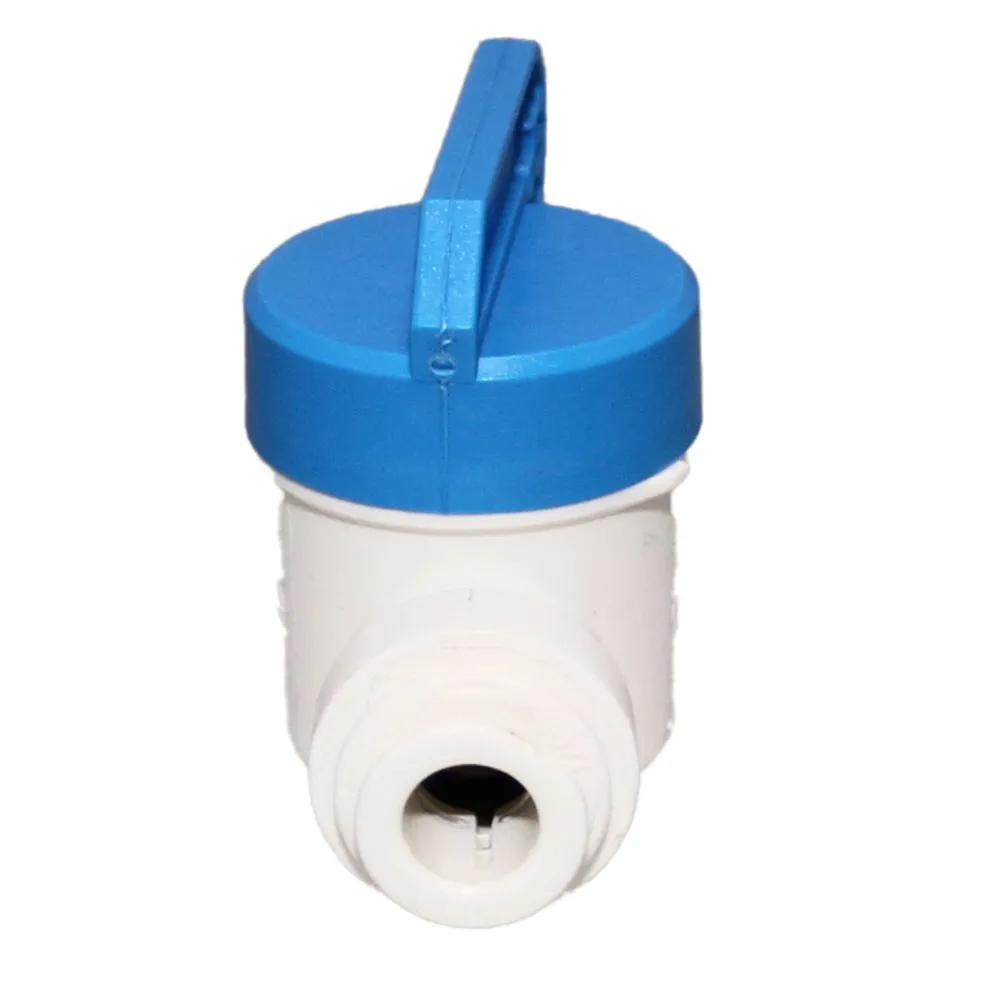

John Guest Shut-Off Valve-Polypro – 8mm Tube x 8mm Tube

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PPMSV040808W

CATEGORY: Valves

Description

The John Guest Shut-Off Valve is used to isolate the supply for service and maintenance. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to isolate the supply for service and maintenance
Quarter turn to open or close
Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Specifications

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Push-In Size	8mm OD
Seal Material	EPDM
Series	PPSV
Shape	Straight
Color / Finish	White
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	2 in.
Product Weight & Dimensions
Product Height	1.25
Product Length	1.5
Product Width	1.625
Product Weight (lbs)	0.084

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Push-In Size	8mm OD
Seal Material	EPDM
Series	PPSV
Shape	Straight
Color / Finish	White
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Push-In Size	8mm OD
Seal Material	EPDM
Series	PPSV
Shape	Straight
Color / Finish	White
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	10.5 in.
Shipping Width	11.25 in.
Shipping Height	4.125 in.
Product Weight & Dimensions
Product Weight (lbs)	6.5

Product Information

SKUPPMSV040808W
CategoryValves

John Guest Shut-Off Valve-Polypro – 8mm Tube x 8mm Tube

Specifications

Product Information

Related products

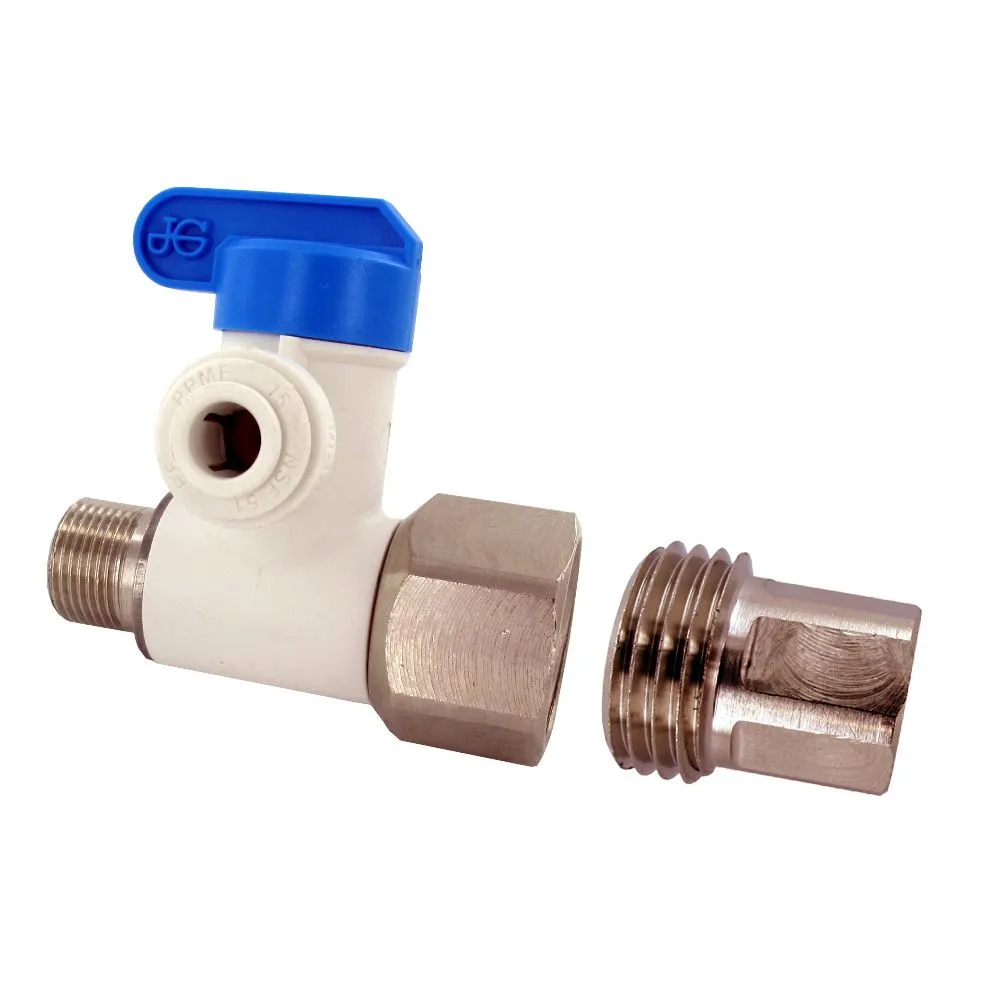

John Guest Angle Stop Adapter Valve – 1/2 x 3/8 x 1/4
