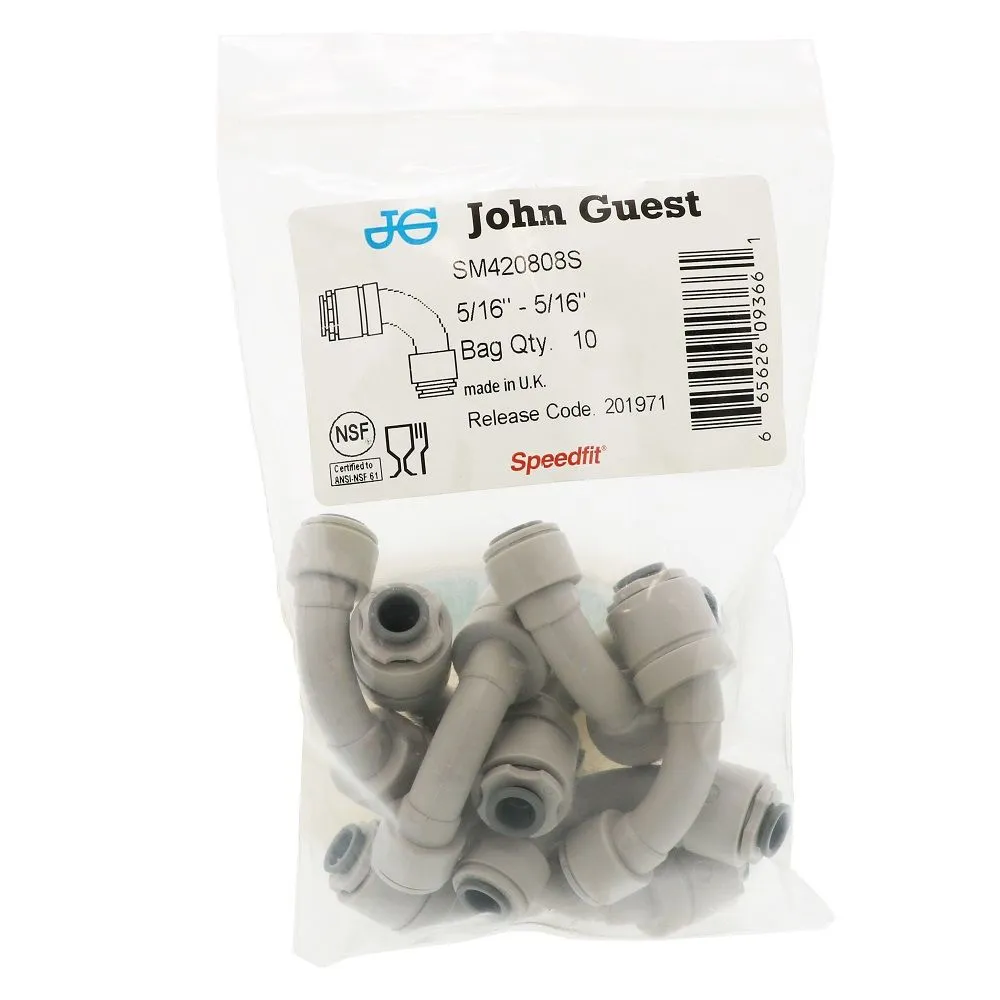

John Guest Superseal Flow Bend Elbow – 5/16 Superseal x 5/16

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: SM420808S

CATEGORY: Fittings & Connectors

Description

The John Guest SuperSeal flow bend elbow is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.

Features:

Used to connect stainless steel tubing
Long sweep reduces turbulence
Acetal body with double Nitrile O-Rings
The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Made with lead free materials

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

Specifications

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Max Pressure (Psi)	230
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	5/16″ OD 8mm OD
Seal Material	Buna-N
Series	SuperSeal
Shape	90
Color / Finish	Gray
Origin	UK
Sub-Type	Flow Bend Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Max Pressure (Psi)	230
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	5/16″ OD 8mm OD
Seal Material	Buna-N
Series	SuperSeal
Shape	90
Color / Finish	Gray
Origin	UK
Sub-Type	Flow Bend Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Details
Application	Water Air Food Beverage
Body Material	Acetal Copolymer
Max Pressure (Psi)	230
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	5/16″ OD 8mm OD
Seal Material	Buna-N
Series	SuperSeal
Shape	90
Color / Finish	Gray
Origin	UK
Sub-Type	Flow Bend Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Information

SKUSM420808S
CategoryFittings & Connectors

John Guest Superseal Flow Bend Elbow – 5/16 Superseal x 5/16

Specifications

Product Information

Related products

John Guest Female Connector w/Brass Nut – 1/2 CTS x 1/2 NPS

Schedule 80 PVC Tee 1/2″ FIP

John Guest Lead-Free ProLock Brass Male Connector NPT – 3/8 CTS x 1/2 NPT

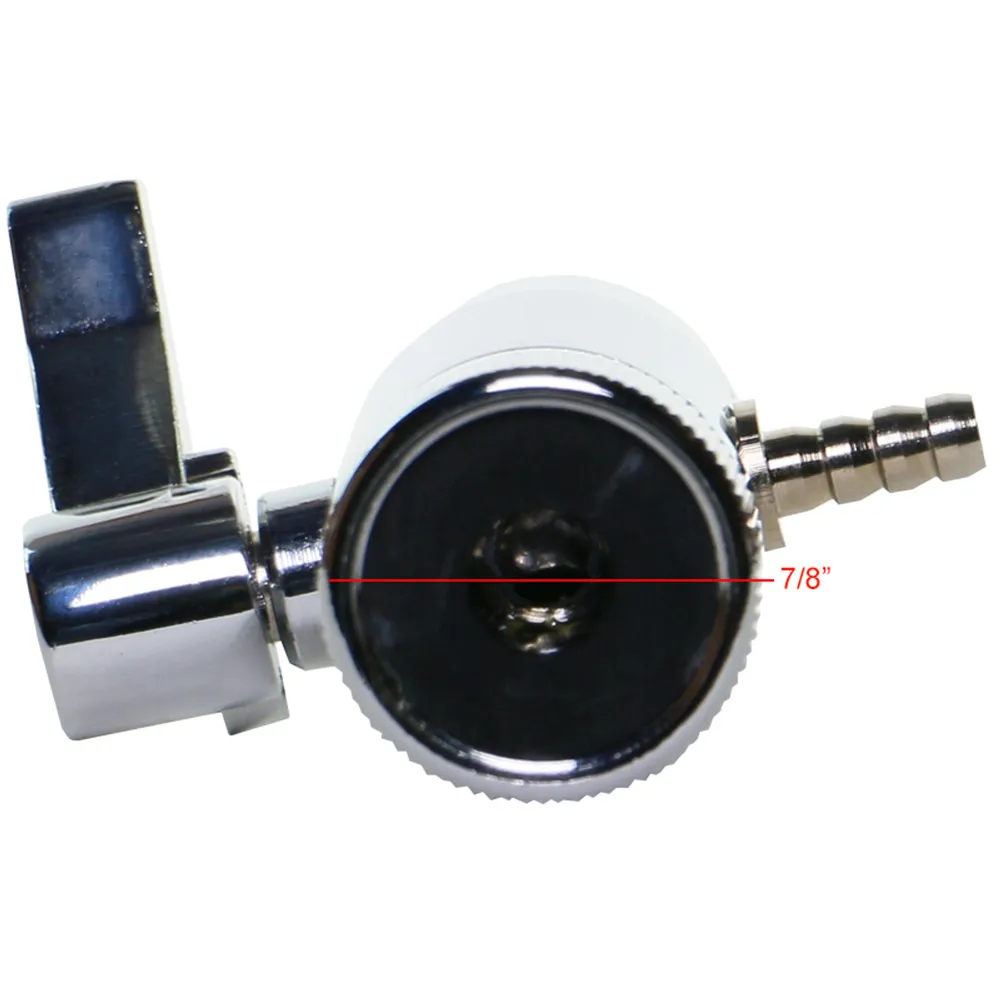

Kitchen Sink Faucet Adaptor
