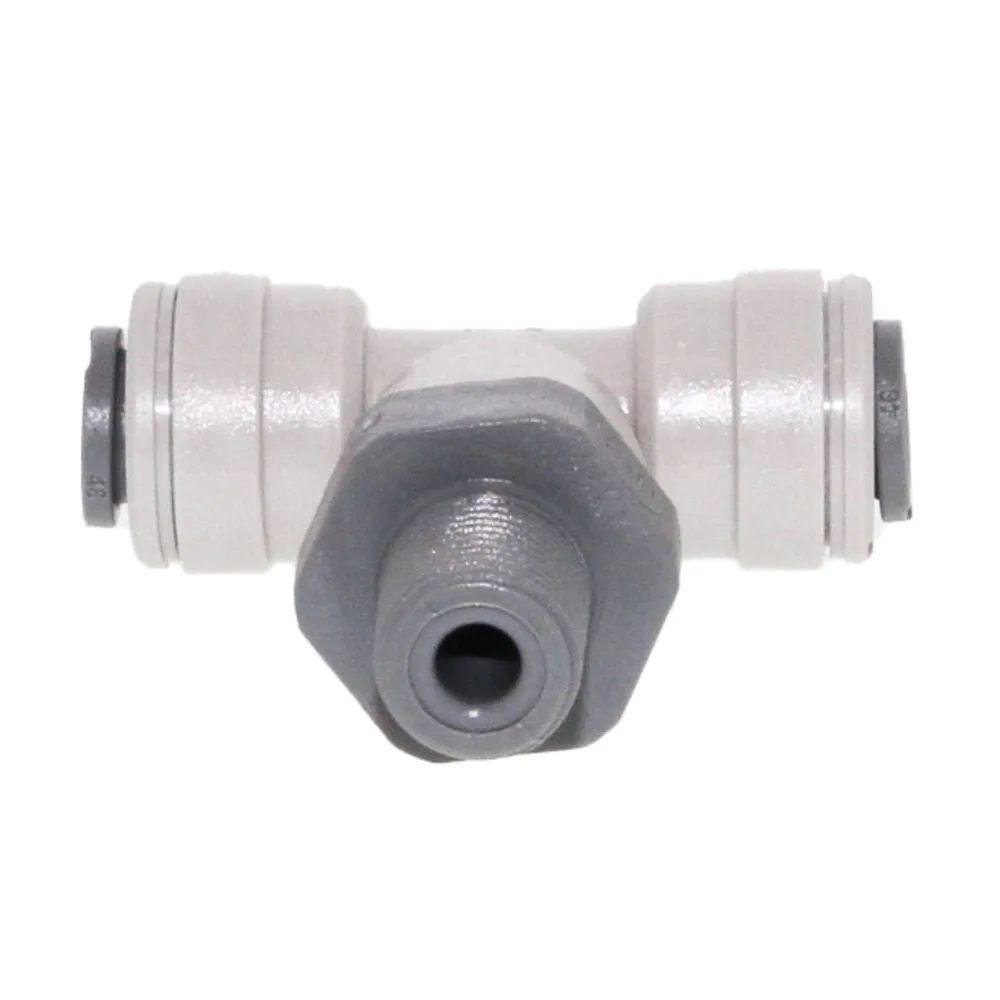

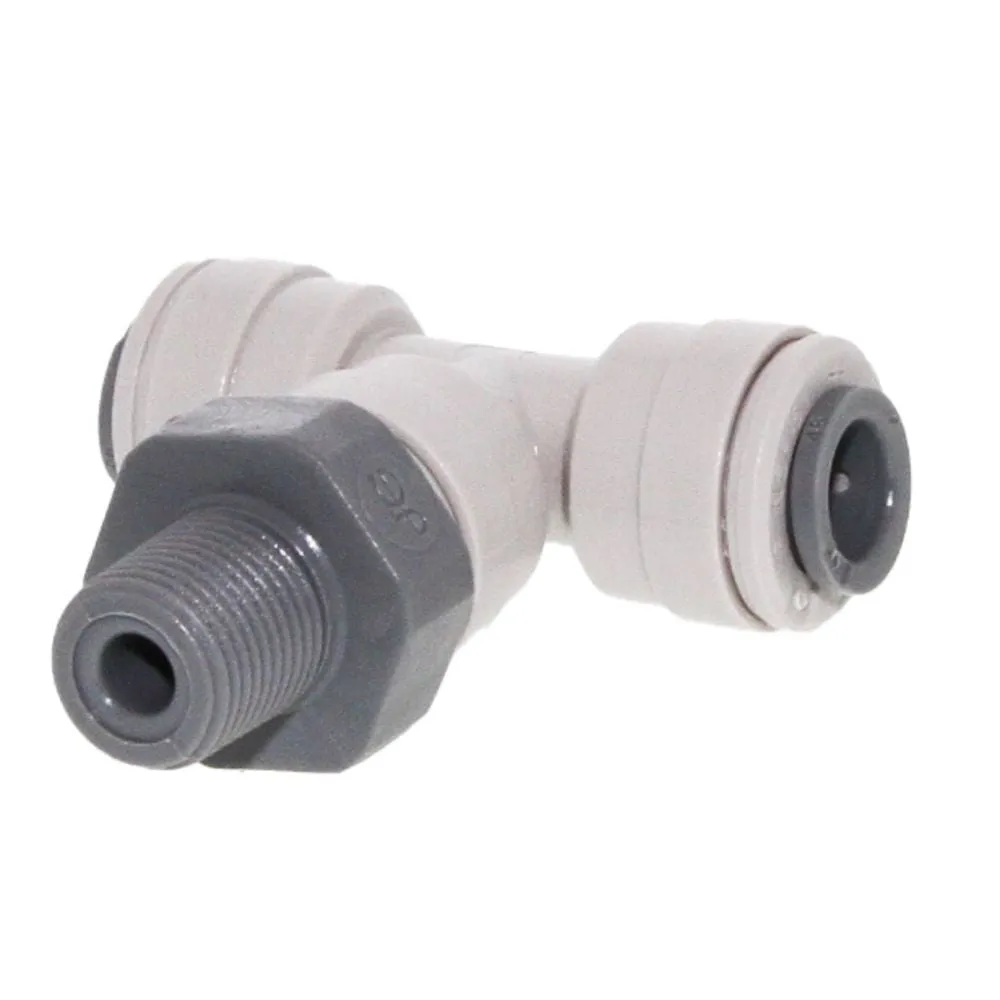

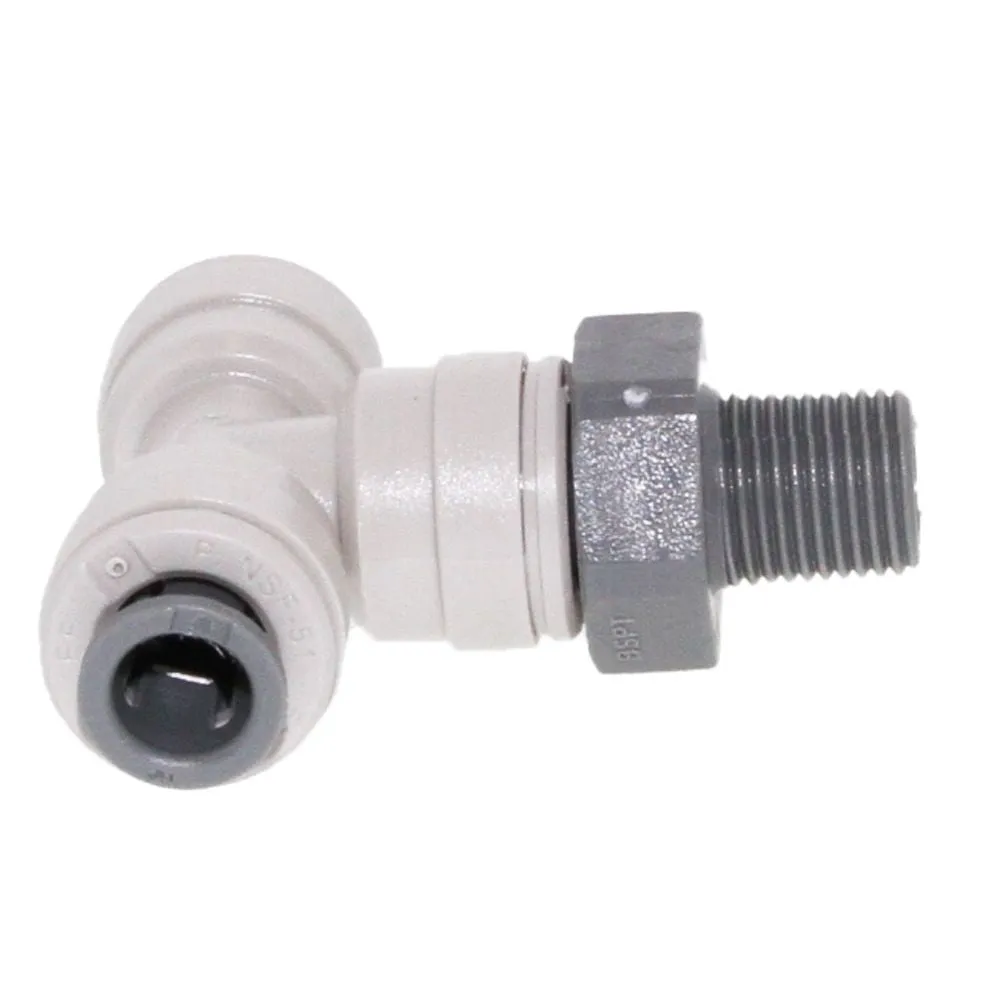

The John Guest swivel branch tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
Working pressure and temperature:
| Product Details | |
|---|---|
|
Application |
Water Air Food Beverage |
|
Body Material |
Acetal Copolymer |
|
Inlet Connection |
1/4″ BSP |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
150 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
-4 |
|
Mounting Options |
Thread |
|
Outlet Connection |
1/4″ BSP |
|
Push-In Size |
5/16″ OD |
|
Seal Material |
Buna-N |
|
Series |
PI |
|
Shape |
Tee |
|
Size |
1/4″ |
|
Color / Finish |
Gray |
|
Connection Type |
BSP |
|
Origin |
UK |
|
Sub-Type |
Swivel Branch Tee |
|
Type |
Tee |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
