Fittings & Connectors

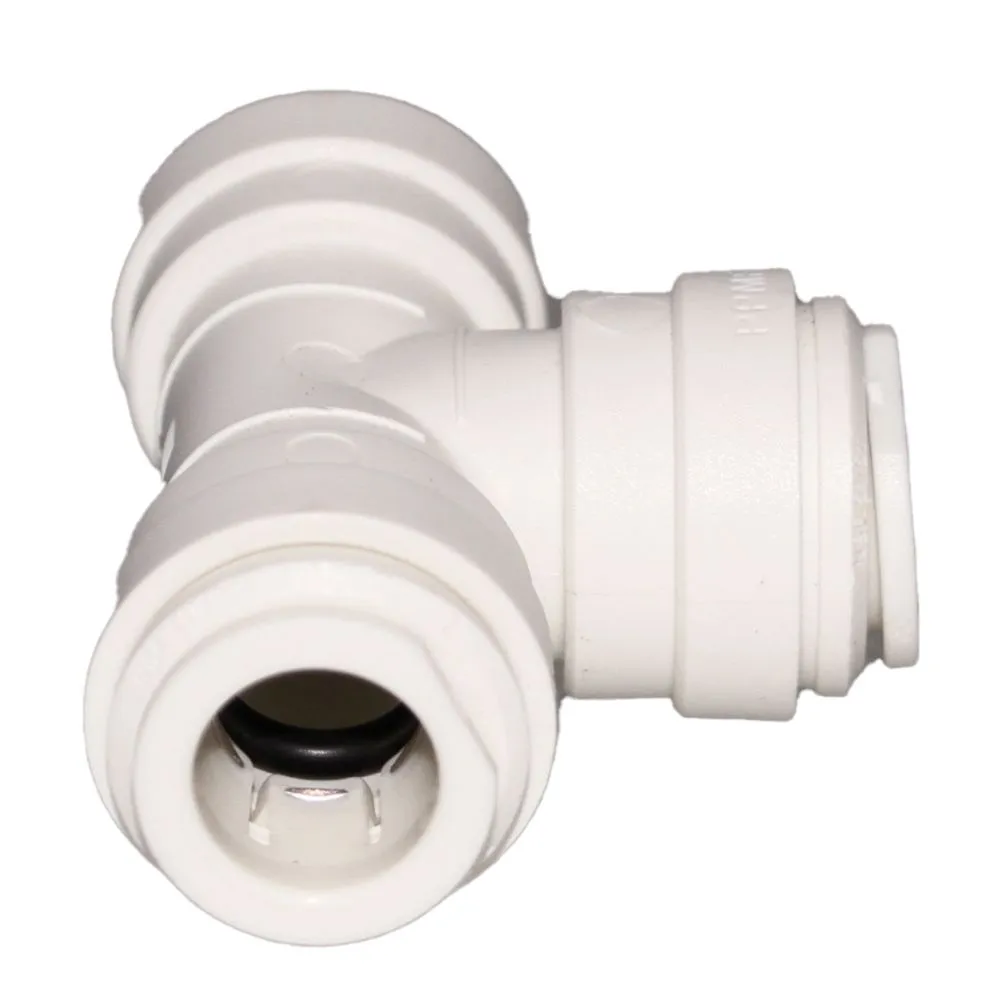

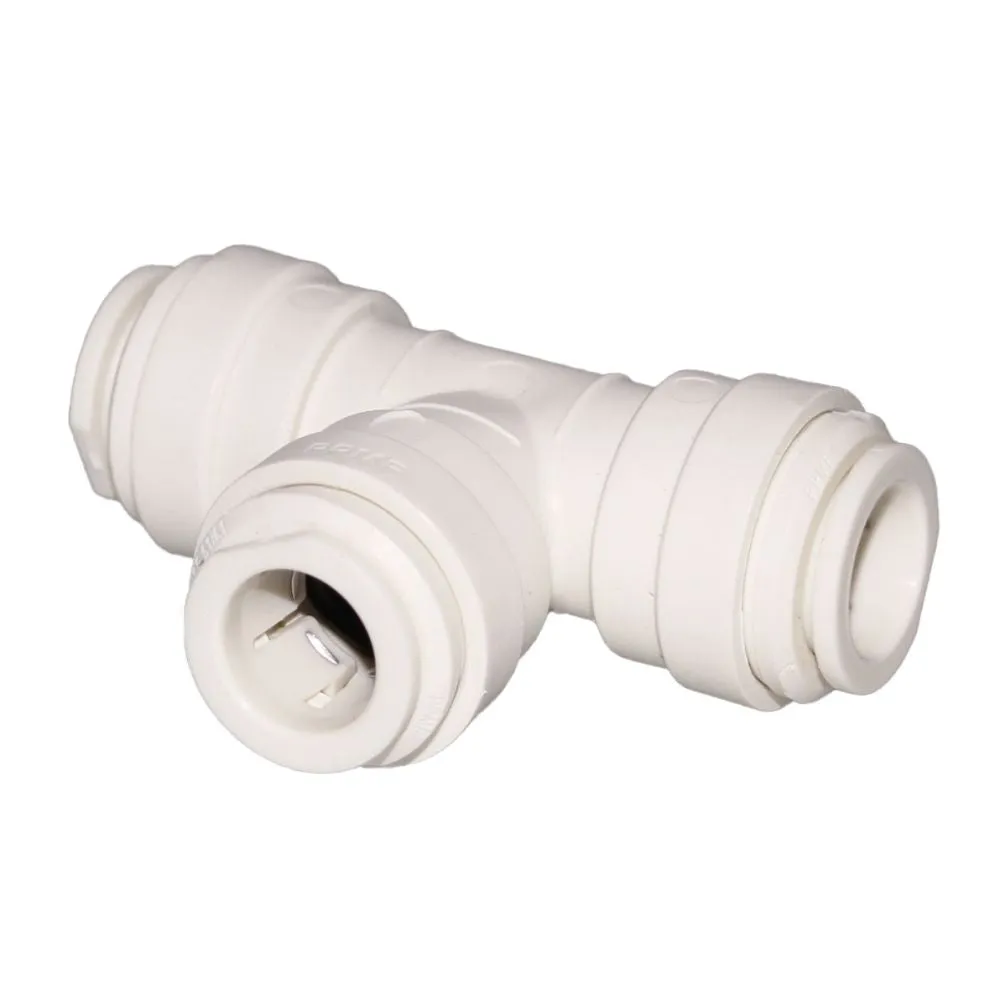

John Guest Union Tee Polypro – 12mm

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PPM0212W

CATEGORY: Fittings & Connectors

Description

The John Guest union tee makes connecting OD tubing sizes quick and easy. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Specifications

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	12mm OD
Seal Material	EPDM
Series	PPM
Shape	Tee
Color / Finish	White
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	12mm OD
Seal Material	EPDM
Series	PPM
Shape	Tee
Color / Finish	White
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Details
Application	Water Food Beverage
Body Material	Polypropylene
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Free Floating
Push-In Size	12mm OD
Seal Material	EPDM
Series	PPM
Shape	Tee
Color / Finish	White
Origin	UK
Sub-Type	Union Tee
Type	Tee
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Information

SKUPPM0212W
CategoryFittings & Connectors

John Guest Union Tee Polypro – 12mm

Specifications

Product Information
