The
Luminor Blackcomb Vending UV System LBV-061 is specifically designed for the microbiological protection of bottled water vending/dispensing machines, the Blackcomb vending system has all the features you need, and more, that place this design above all others.
Features:
- Two Piece Design. Allows for flexible mounting inside an enclosed vending machine.
- LED Indicators. A convenient visual sight port and a “power-on” LED indictor allow for easy confirmation of lamp operation, in addition to Green LED “lamp-on” indicator.
- Fully potted, electronic ballast. Comes equipped with an integral aluminum heat sink case that allows for cool operation inside these sometime harsh conditions.
- Easy-access industrial screw terminals. Provides simple connections for both power and volt free (dry) contacts allowing easy connection to the control board of the vending machine.
- Rugged 304 stainless steel, single-end reactors. Designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems.
- Bayonet style lamp connector. Allows for easy lamp change without the need for additional tools.

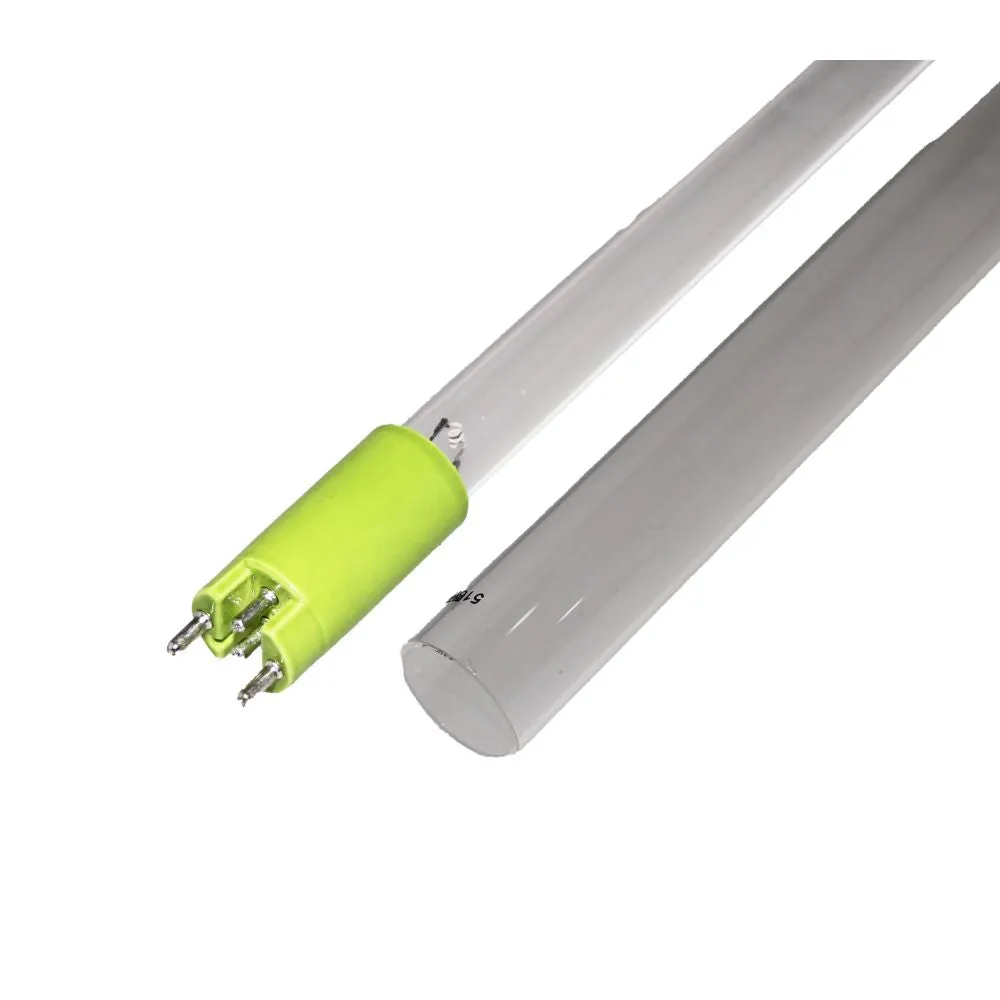

- Low pressure (LP) coated UV lamps. Used offering a consistent output over their 9,000 hour rated life.
Specifications:
- Port Size: 3/4″ MNPT
- Flow Rate*: 6 gpm
- Electrical: 110V / 50-60Hz
- Lamp Watts: 22
- Max Operating Pressure: 10 bar (150 psi)
- Operating Temperature Range: 36-104° F(2-40° C)
*Please Note: Flow Rate @ 30 mJ/cm² – Flow rate for a given dose is calculated based on system output at end of lamp life in water with 95% UVT
Luminor Blackcomb UV Systems
| Model |
LB4-061 |
LB4-101 |
LB4-201 |
LBH4-251 (High Output) |
LBV-061 (Vending) |
| Flow Rate |
5.8 gpm |
11 gpm |
21 gpm |
25 gpm |
6 gpm |
| Port Size |
¾” MNPT |
¾” MNPT |
1″ MNPT |
1″ MNPT |
¾” MNPT |
| Electrical |
110-230V |
110-230V |
110-230V |
110-230V |
110-230V |
| Lamp Watts |
22 |
39 |
42 |
67 |
22 |
| Max Operating Pressure |
150 psi |
150 psi |
150 psi |
150 psi |
150 psi |
| Operating Temp. Range |
36-104° F |
36-104° F |
36-104° F |
36-104° F |
36-104° F |
