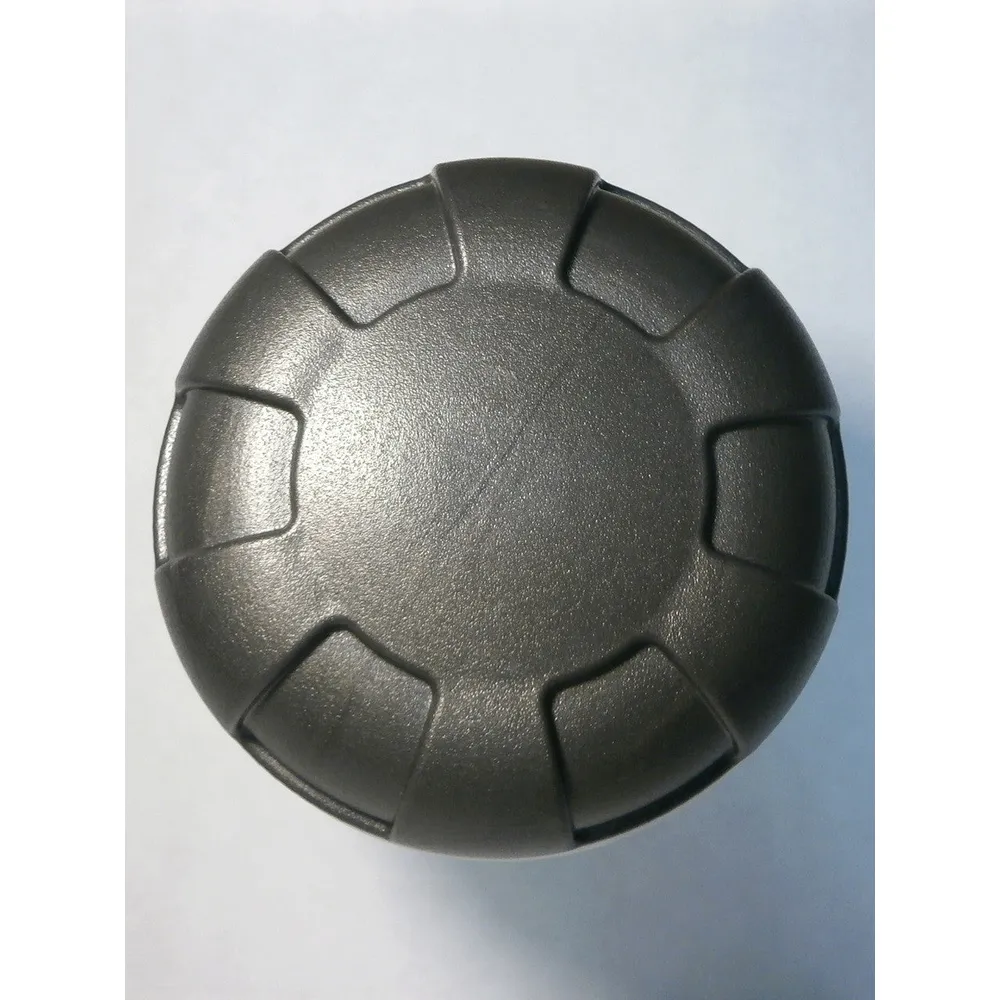

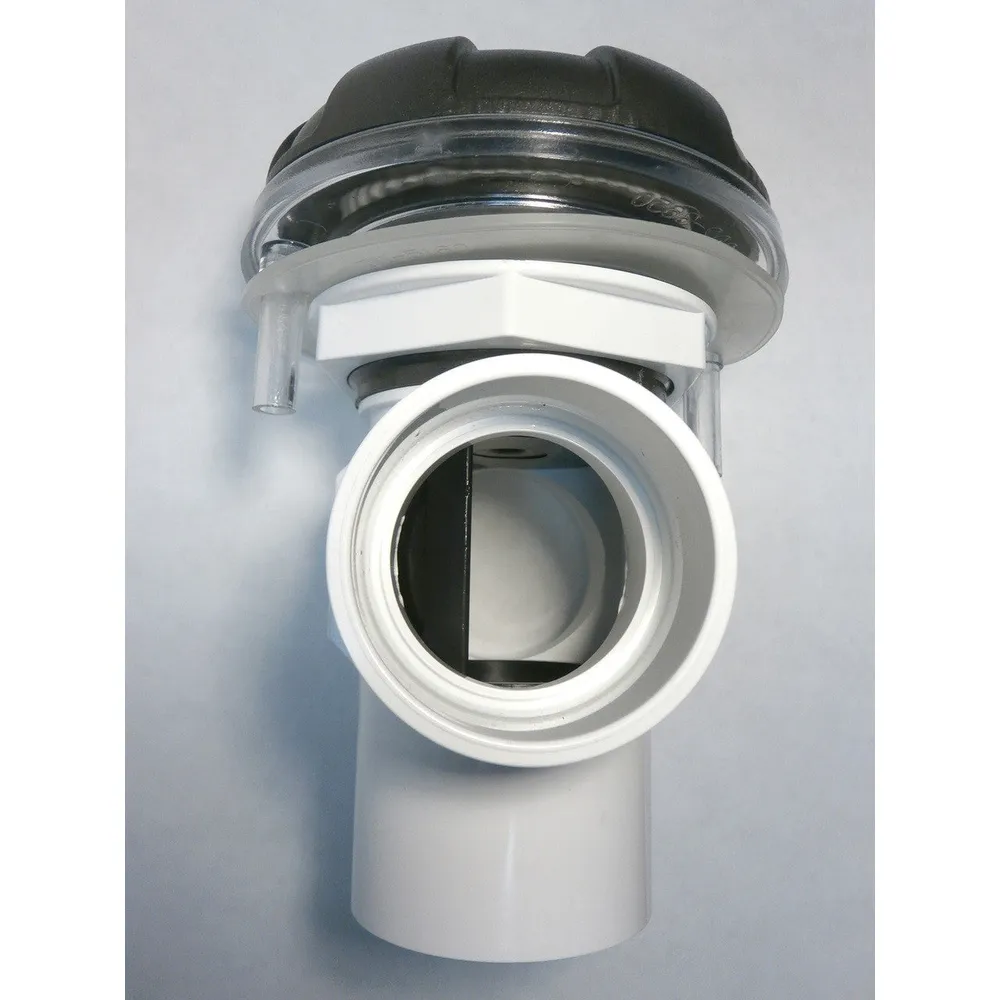

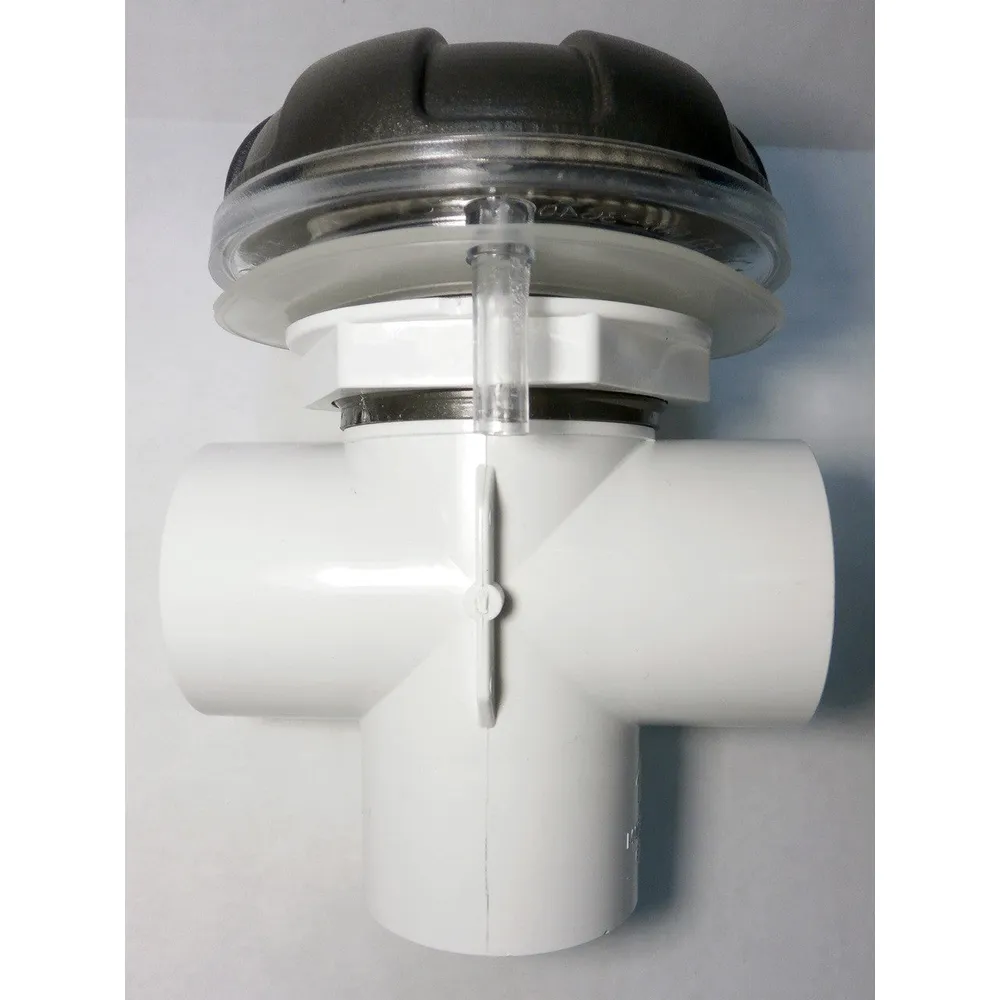

X245375 – 2 inch DSG 6-Spoke Diverter Assembly Starting 2009
This part is intended for use with 2 inch inside diameter plumbing
This part is available ONLY as a the X245375 Kit, not as separate components.
You may see LED 602-3640 and 602-3640 on the clear plastic beneath the handle on this part
Includes:
1 x Master Spas Diverter Valve assembly for Twilight Spas
This unit is sold as an entire assembly, and is not sold separately as components.
Dimensions:
Unit Width: 5.00 inches (12.70 cm) [Cap]
Unit Width: 5.75 inches (14.605 cm) [T-Section]
Unit Height: 7.50 inches (19.05 cm)
Unit Weight: 1 lb. 7.2 oz. (660 g)
Plumbing ID: 2.375 inches (4.75 cm)
Plumbing OD: 2.6875 inches (6.82625 cm)
Need the Cap replaced? This one will work, although it has a different appearance:
X804181 – Grey Diverter Cap 2003-2007 (for 2 inch Inside Diameter Plumbing)
Need the Handle replaced? This one will work, although it has a different appearance:
X804110 – 2 inch Grey Diverter Valve Handle 1999-2002 (for 2 inch Inside Diameter Plumbing)
Other items associated with this part:
X245375R – 2 inch Black Diverter Rotor Assembly for X245375
X804131 – Diverter Clear Flared Cap Kit With O-Rings (For 2 Inch Inside Diameter Plumbing)
X245370 – DSG 6-Spoke Waterfall Diverter Assembly Starting 2009
