Sediment Filters

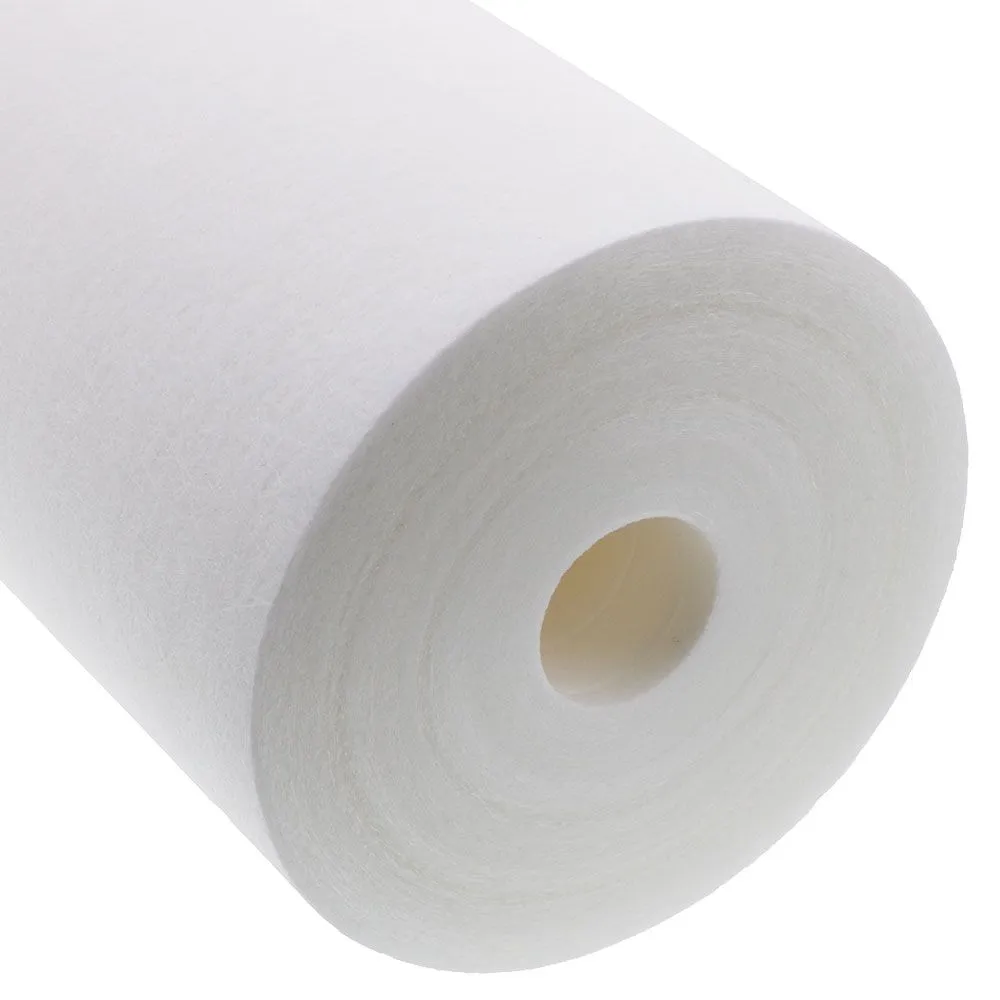

Neo-Pure 20″ BB Graded Density Polypropylene Sediment Filter 50/5 mic

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: MB-45200-05

CATEGORY: Sediment Filters

Description

The Neo-Pure MB-45200-05 is a High Efficiency 4.5″ x 20″ Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 4.5″ x 20″ sediment depth filter, like FCRO cartridges, offers a greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-45200-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.
Features:

Durability & Reliability. The Neo-Pure MB-45200-05 filter will not add taste, odor, or color to the liquid being filtered. The MB-45200-05 is specifically designed for purity, bacteria resistance, and chemical resistance.
NSF Certified: Tested and certified by NSF International against NSF/ANSI Standard 42 for national safety and structural integrity only.
This Filter Reduces:
- Sediment
- Rust
- Dirt
Polypropylene Construction: The pure polypropylene construction of this graded density filter makes it resistant to chemicals and corrosion.
Contaminant Reduction: This filter has 3 times the dirt-holding capacity of similar sized sediment filters and reduces sediment, dirt, and rust.
20″ Big Blue Compatibles: This filter is compatible with American Plumber, Aqua-Pure, Culligan, Pentek, and Ametek 20″ Big Blue Housings.
Applications: This graded density filter is ideal for all residential, rural, commercial, industrial, and municipal water applications.

Compatible with:

Aqua Sun International	SWS-BB
AXEON Membranes	200640
Filter Specialist	CMMF0520-45W1
Flexeon	200640
Hydronix	SDC-45-2005
Ice House America®	IHA – H00995
Ideal H2O™	738358
Liquatec	SDF-45-2005
Pentek	DGD-5005-20, 155358-43
Pura	33003117
Pura UV Lamps & Filters	33003117, 33003117-1
Sterilight	CMB-520-HF
Valuetrex	1227868-V-BB, VX05-20BB
Watts	FPMB-BB5-20

Specifications

Product Details
Max Temp (°F)	145
Micron Rating (Nominal)	50/5 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psi typical
Recommended Flow Rate	20 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2″
End Cap Type	Double Open Ended (DOE) – No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	20 GPM
Media Type	Polypropylene
Micron Rating	50 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21, NSF/ANSI 42, NSF/ANSI 372
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Freight_Out_Pallet_Dims	48x40x90
Freight_Out_Pallet_Qty	720
Freight_Out_Pallet_Weight	513
Product Height	4.5
Product Length	20″
Product Width	4.5
Product Weight (lbs)	1.776

Product Details
Max Temp (°F)	145
Micron Rating (Nominal)	50/5 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psi typical
Recommended Flow Rate	20 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2″
End Cap Type	Double Open Ended (DOE) – No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	20 GPM
Media Type	Polypropylene
Micron Rating	50 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21, NSF/ANSI 42, NSF/ANSI 372
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	14 in.
Shipping Height	14 in.
Product Weight & Dimensions
Product Length	20″
Product Weight (lbs)	12

Product Details
Max Temp (°F)	145
Micron Rating (Nominal)	50/5 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psi typical
Recommended Flow Rate	20 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2″
End Cap Type	Double Open Ended (DOE) – No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	20 GPM
Media Type	Polypropylene
Micron Rating	50 µm
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Product Weight & Dimensions
Freight_Out_Pallet_Dims	48x40x90
Freight_Out_Pallet_Qty	720
Freight_Out_Pallet_Weight	513
Product Length	20″
Product Weight (lbs)	447.552

Product Information

SKUMB-45200-05
CategorySediment Filters

Neo-Pure 20″ BB Graded Density Polypropylene Sediment Filter 50/5 mic
