Neo-Pure 7 Round 40″ Multi-Cartridge Stainless Steel Housing

$231.80
🚚 Free Shipping over $39
✓ Premium Quality
🔒 Secure Payments
↻ Money Back Guarantee
SKU: BCM7X4-2FT
CATEGORY: Standard Filter Housings
Description
Neo-Pure 7 Round Multi-Cartridge Stainless Steel Housing utilizes seven 40″ cartridges providing unparalleled filtration with up to 196 gallons per minute. The V-band clamp or swing bolt closure allows for quick change-outs and secure sealing. Neo-Pure BMC Multi Cartridge Housing Replacement Filters
Specifications:

  • Accepts seven 40″ cartridges for optimal filtration flow
  • Heavy-duty 304L or 316L stainless steel construction for maximum durability

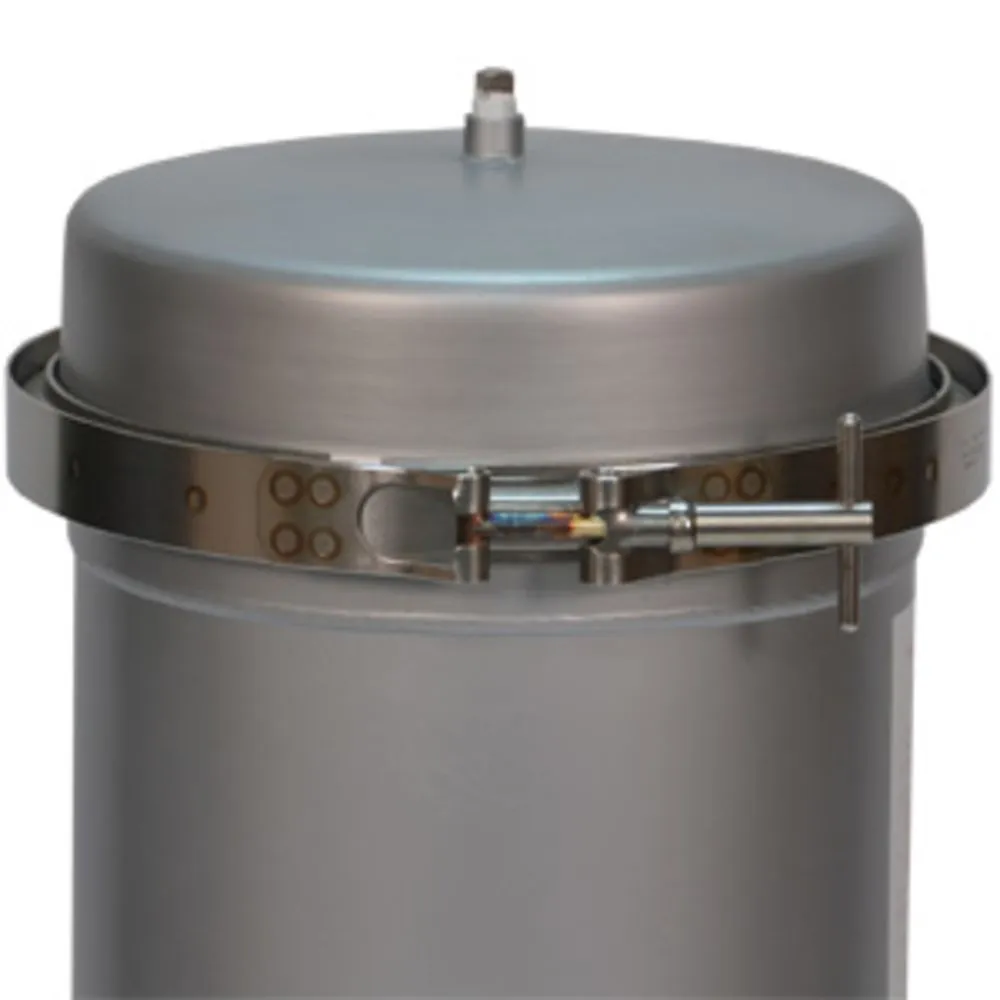

  • V-band clamp or swing bolt closure for quick, easy change-outs and secure sealing
  • Protective poly-coat finish
  • Flow rates up to 196 gallons per minute

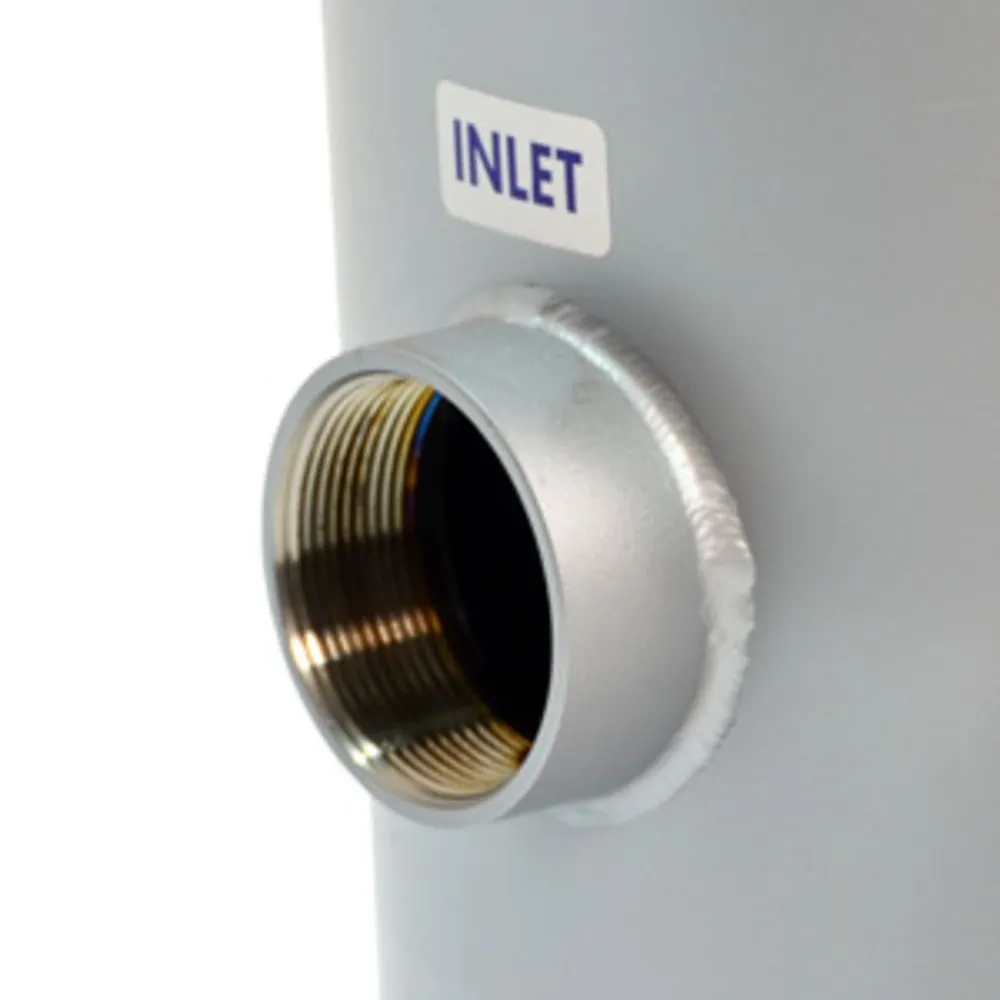

  • Inlet/Outlet: 2″ FNPT
  • All stainless steel internals
  • Standard version comes with gauge ports and mounting legs

Applications:

  • Chemicals
  • Cooling Tower Filtration
  • Desalination Prefiltration
  • Electronics
  • Food and Beverage
  • Oil and Gas
  • Paints, Inks, and Coatings
  • Paper and Pulp
  • Power
  • Water

Compatible with:

Graver Technologies LPF07R4-N2-U-VB-B-GPX-L, LPF07R4-N2-U-SB-B-GPX-L
Harmsco® Compatible HMC-7, HBC-7-4
Shelco 7FOS4C-304-2FNPT-MLGP-B

Specifications

Product Details

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp

Gaskets

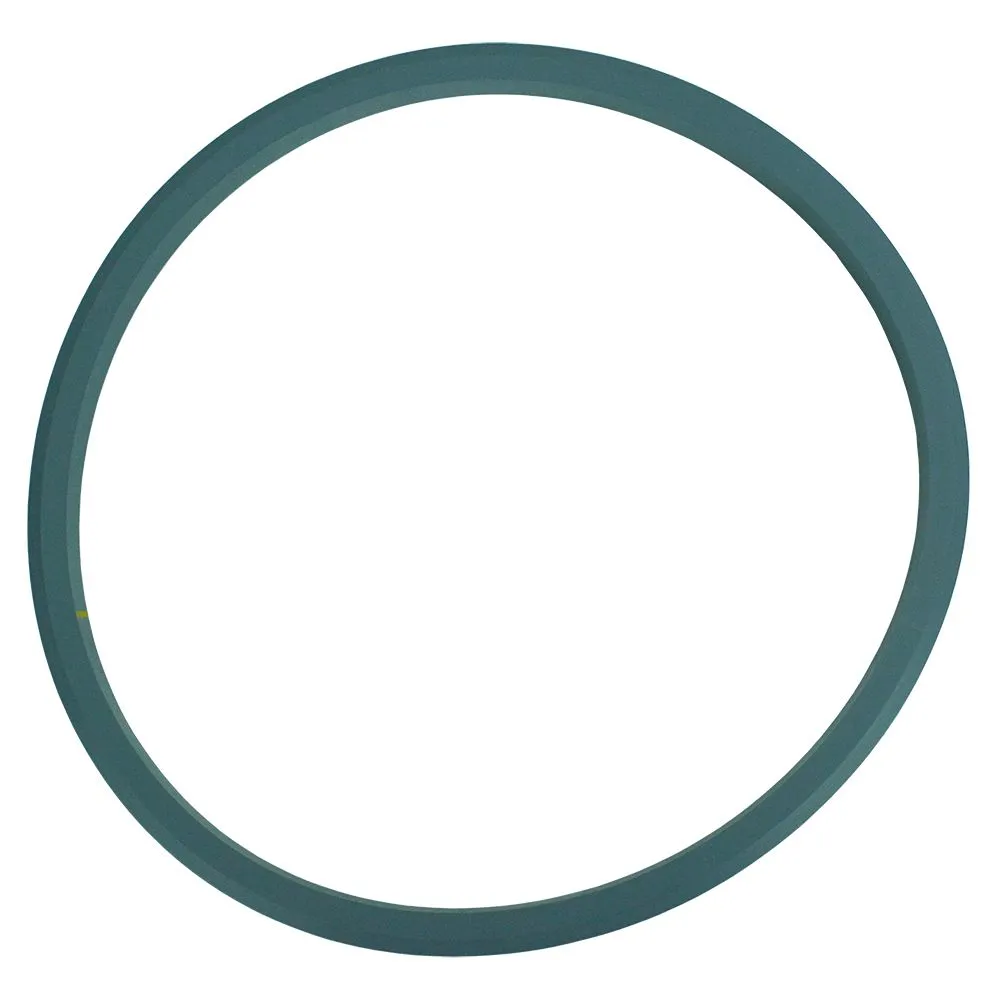

Buna-N (FDA grade)

Inlet Connection

2″ FPT

Material Of Construction

304 Stainless Steel

316 Stainless Steel

Max Flow Rate

196 GPM

Number Of Cartridges

7

Outlet Connection

2″ FPT

Size

2″

Volume

0.247 CBM

Color / Finish

Stainless Steel

Connection Type

Female (FPT)

Origin

U.S.A.
Shipping Dimensions

Shipping Length

52 in.

Shipping Width

17 in.

Shipping Height

17 in.
Product Weight & Dimensions

Product Height

50-7/8, 60-1/2″

Product Length

40″

Product Weight (lbs)

66
Product Details

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp

Gaskets

Buna-N (FDA grade)

Inlet Connection

2″ FPT

Material Of Construction

304 Stainless Steel

316 Stainless Steel

Max Flow Rate

196 GPM

Number Of Cartridges

7

Outlet Connection

2″ FPT

Size

2″

Volume

0.247 CBM

Color / Finish

Stainless Steel

Connection Type

Female (FPT)

Origin

U.S.A.
Shipping Dimensions

Shipping Length

40 in.

Shipping Width

40 in.

Shipping Height

60.5 in.
Product Weight & Dimensions

Product Height

50-7/8, 60-1/2″

Product Length

40″

Product Weight (lbs)

90
Product Details

Body Material

304L Stainless Steel

Closure Type

V-Band Clamp

Gaskets

Buna-N (FDA grade)

Inlet Connection

2″ FPT

Material Of Construction

304 Stainless Steel

316 Stainless Steel

Max Flow Rate

196 GPM

Number Of Cartridges

7

Outlet Connection

2″ FPT

Size

2″

Volume

0.247 CBM

Color / Finish

Stainless Steel

Connection Type

Female (FPT)

Origin

U.S.A.
Product Weight & Dimensions

Product Weight (lbs)

66

Product Information
