Consumer Note: The Manufacturer of this filter has made a recent change to the color of the end caps, from White/Grey to Blue. This does not impact or change any other functionality or spec of this filter.

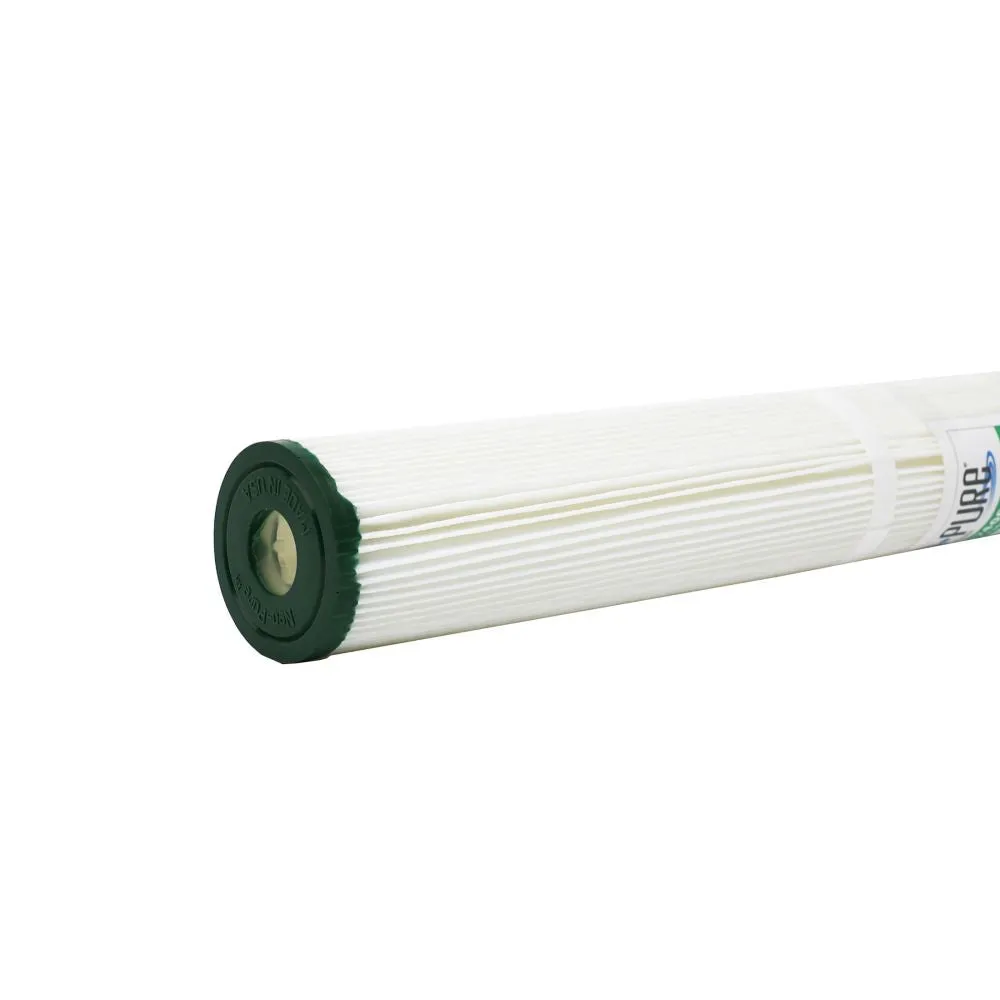

TheNeo-Pure PS-27400-100 High Efficiency Pleated Filter is constructed out of 20 square feet of pleated polyester media wrapped around a polypropylene core. The polyester media reduces sediment, and provides excellent resistance to chemicals and bacteria. Neo-Pure PS Series cartridges are cleanable, and provide a longer service life and reduced maintenance costs.
Features:
Additional Specifications:
NOTE: We are transitioning to a new end cap color coding system for the Neo Pure Pleated filters in the PS-XXXX part number series. This enhancement optimizes the identification process for different micron removal ratings.
Please be aware of the updated color associations for specific micron ratings:
| White End Caps: 0.35 micron, 1 micron, and 1 micron absolute | |
| Blue End Caps: 5 micron, 10 micron, and 20 micron | |
| Gray End Caps: 50 micron and 100 micron |
During this transition period, you may receive a filter with a different color end cap than previously. Rest assured, this change is part of our planned improvements, and you will receive the correct filter for your application.
For any inquiries regarding this transition, feel free to contact our customer support team.
| Product Details | |
|---|---|
|
Core Material |
Polypropylene |
|
Max Temp (°F) |
140 |
|
Micron Rating (Nominal) |
100 µm |
|
Min Temp (°F) |
40 |
|
Psid@Flow Rate |
< 1 psid typical |
|
Surface Area |
20 Square Feet |
|
Cap Material |
Polypropylene |
|
Cartridge Style |
Drop-in |
|
Change Frequency |
6-12 Months |
|
Contaminants Reduced |
Sediment/Dirt/Rust |
|
Diameter |
2-3/4″ |
|
End Cap Type |
Double Open Ended (DOE) |
|
Filter Construction |
Pleated |
|
Filter Type |
Pleated |
|
Inner Diameter |
1-1/16″ |
|
Media Type |
Polyester |
|
Micron Rating |
100 µm |
|
Origin |
China |
| Product Weight & Dimensions | |
|
Product Length |
40″ |
|
Product Weight (lbs) |
0.68 |
| Product Details | |
|---|---|
|
Core Material |
Polypropylene |
|
Max Temp (°F) |
140 |
|
Micron Rating (Nominal) |
100 µm |
|
Min Temp (°F) |
40 |
|
Psid@Flow Rate |
< 1 psid typical |
|
Surface Area |
20 Square Feet |
|
Cap Material |
Polypropylene |
|
Cartridge Style |
Drop-in |
|
Change Frequency |
6-12 Months |
|
Contaminants Reduced |
Sediment/Dirt/Rust |
|
Diameter |
2-3/4″ |
|
End Cap Type |
Double Open Ended (DOE) |
|
Filter Construction |
Pleated |
|
Filter Type |
Pleated |
|
Inner Diameter |
1-1/16″ |
|
Media Type |
Polyester |
|
Micron Rating |
100 µm |
|
Origin |
China |
| Product Weight & Dimensions | |
|
Product Length |
40″ |
|
Product Weight (lbs) |
16.32 |
