Sediment Filters

Neo-Pure PSJ-90-01 Pleated Synthetic Jumbo Cartridge 1 micron

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PSJ-90-01

CATEGORY: Sediment Filters

Description

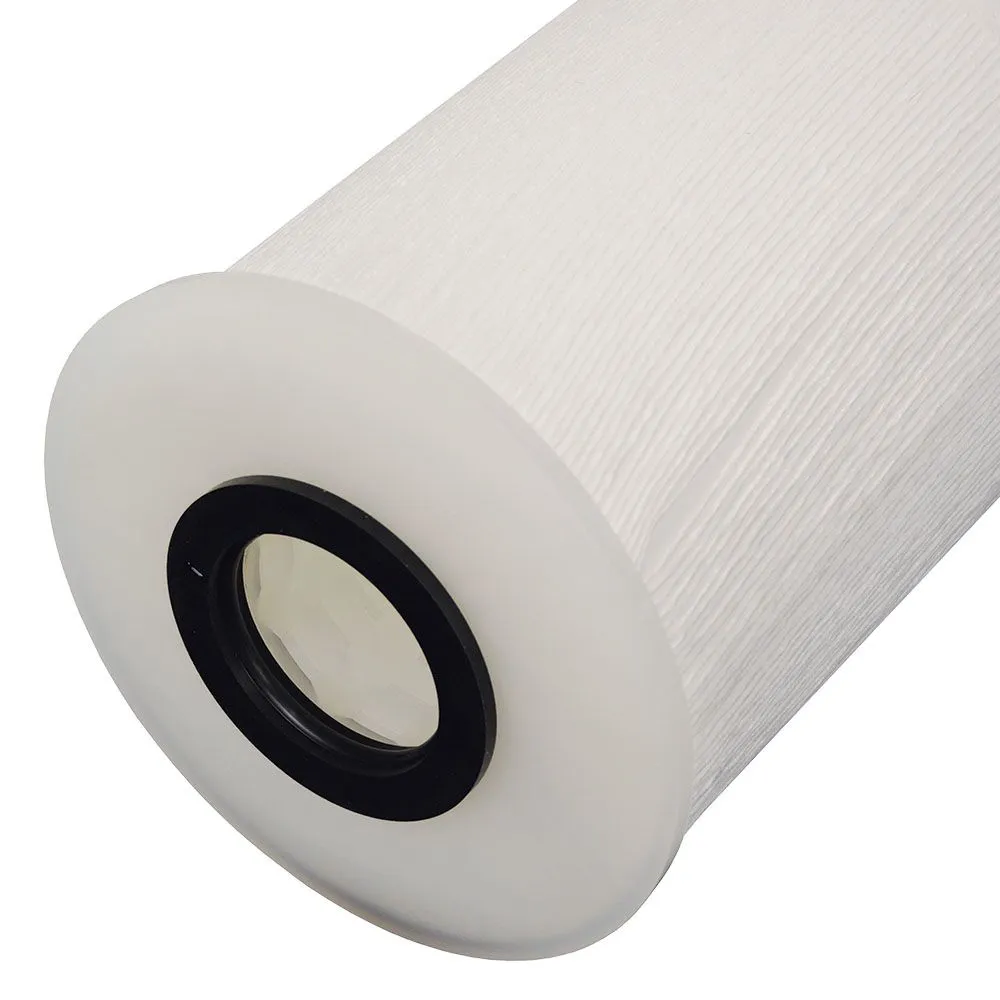

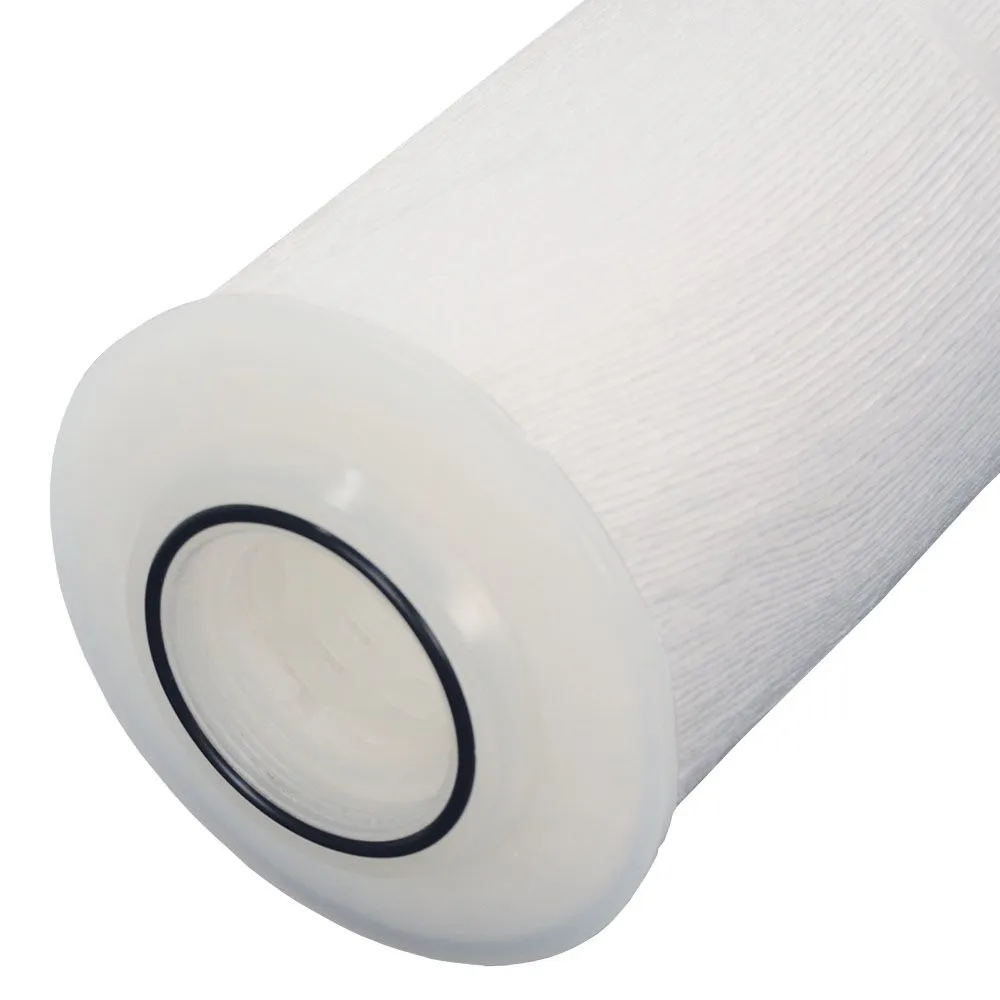

The Neo-Pure PSJ-90 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJ Series filter’s pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:

Made in USA
Pleated design for increased surface area, dirt holding capacity and increased particle removal
Fewer cartridges to change results in lower maintenance costs
Center tube, end cap and filter media are bonded as one unit for additional strength
Filter Dimensions: 19-1/2″ x 7-3/4″
Max Temperature: 160°F
Tested and certified by WQA according to NSF/ANSI Standard 61

Applications:

Potable drinking water
Industrial waste water treatment
Food and beverage
Reverse osmosis prefiltration
Cooling tower filtration
Desalination prefiltration
Process water
Oil/Gas
Paper and Pulp
Paints
Inks
Coatings

Compatible with:

Harmsco® Compatible	HC/90-1, HC/90-1W-HF, HC-PP-90-1
Watts	FMHC-90-1, FMHC-90-1EZ, PWPL90M1

Specifications

Product Details
Max Flow Rate	100 GPM
Max Temp (°F)	160
Micron Rating (Nominal)	1 µm
Netting	Polypropylene
Surface Area	Approximately 90 Square Feet
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-3/4″
Media Type	Synthetic Polypropylene
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	20 in.
Product Weight & Dimensions
Product Height	8 in.
Product Length	21 in.
Product Width	8 in.
Product Weight (lbs)	5.1

Product Details
Max Flow Rate	100 GPM
Max Temp (°F)	160
Micron Rating (Nominal)	1 µm
Netting	Polypropylene
Surface Area	Approximately 90 Square Feet
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-3/4″
Media Type	Synthetic Polypropylene
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	17 in.
Shipping Width	17 in.
Shipping Height	21 in.
Product Weight & Dimensions
Product Weight (lbs)	47.1

Product Information

SKUPSJ-90-01
CategorySediment Filters

Neo-Pure PSJ-90-01 Pleated Synthetic Jumbo Cartridge 1 micron

Specifications

Product Information
