Sediment Filters

Neo-Pure PSJE-170-05 Pleated Synthetic Jumbo Cartridge 5 micron

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PSJE-170-05

CATEGORY: Sediment Filters

Description

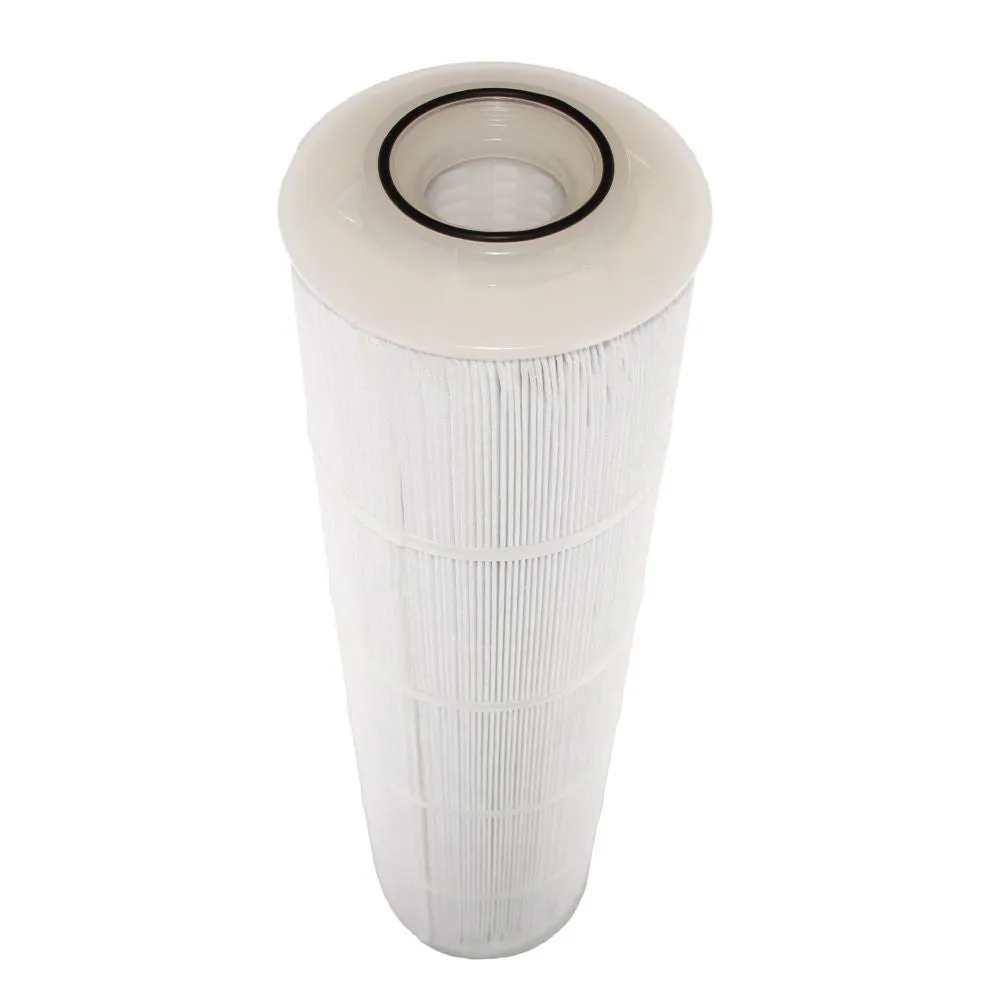

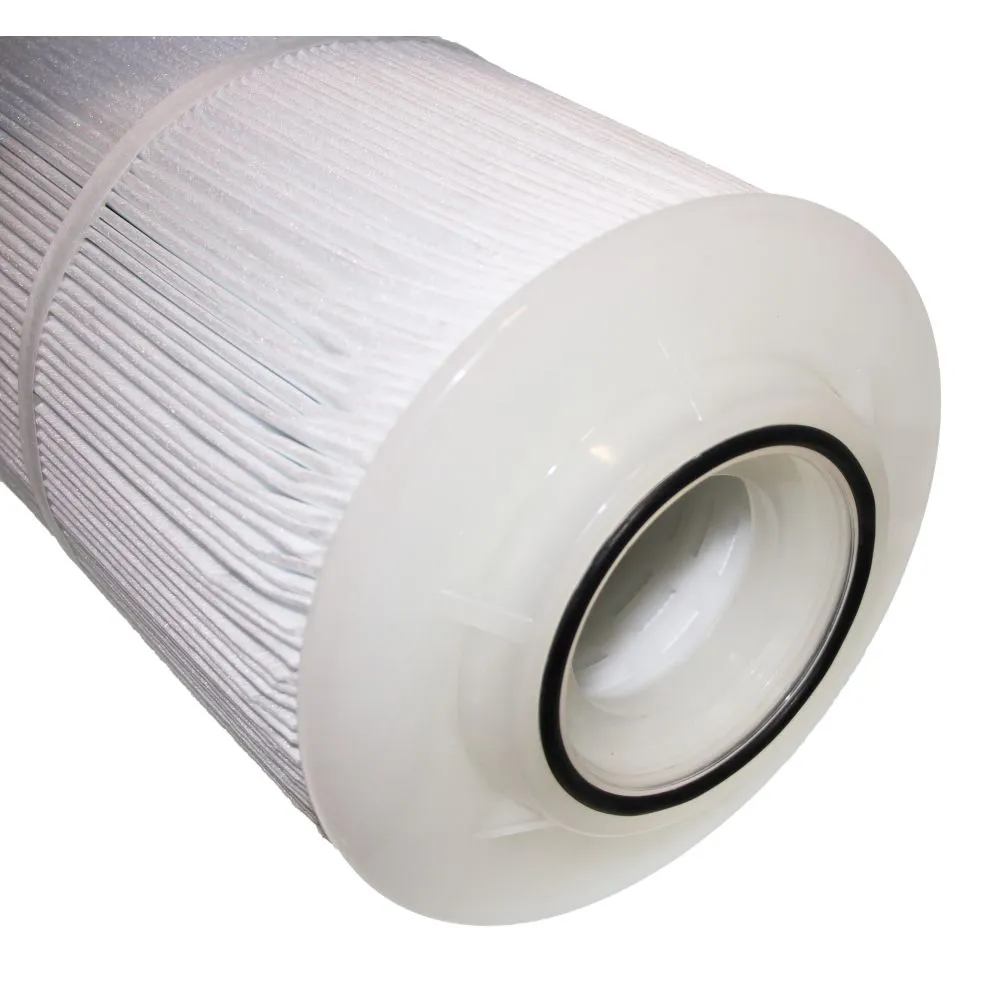

The Neo-Pure PSJE-170-05 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter’s pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:

Pleated Filter Design. The pleated filter design on the PSJE-170-05 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
Low Maintenance. The Neo-Pure PSJE-170-05 requires fewer cartridge changes, which results in lower maintenance costs.
High Value At A Competitive Price. The PSJE-170-05 Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.

Specifications:

Length: 30-3/4″
Diameter: 7-3/4″
Micron Rating: 5.0 micron
Surface Area: ~170 sq. ft.
Max Temperature: 140°F
Max Flow rate: 150 gpm

Applications:

Potable drinking water
Industrial waste water treatment
Food and beverage
Reverse osmosis prefiltration
Cooling tower filtration
Desalination prefiltration
Process water
Oil/Gas
Paper and Pulp
Paints
Inks
Coatings

Note: Our PSJE filters are assembled in a certified clean room.

Compatible with:

Harmsco® Compatible

HC-PP-170-5, HC/170-5

Specifications

Product Details
Max Flow Rate	150 GPM
Max Temp (°F)	176
Micron Rating (Nominal)	5 µm
Netting	Polypropylene
Surface Area	Approximately 170 Square Feet
Cap Material	Polypropylene
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-3/4″
Media Type	Synthetic Polypropylene
Origin	China
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	32 in.
Product Weight & Dimensions
Product Height	32 in.
Product Length	9 in.
Product Width	9 in.
Product Weight (lbs)	6.89

Product Details
Max Flow Rate	150 GPM
Max Temp (°F)	176
Micron Rating (Nominal)	5 µm
Netting	Polypropylene
Surface Area	Approximately 170 Square Feet
Cap Material	Polypropylene
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-3/4″
Media Type	Synthetic Polypropylene
Origin	China
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	8 in.
Shipping Width	8 in.
Shipping Height	32 in.
Product Weight & Dimensions
Product Weight (lbs)	28

Product Details
Max Flow Rate	150 GPM
Max Temp (°F)	176
Micron Rating (Nominal)	5 µm
Netting	Polypropylene
Surface Area	Approximately 170 Square Feet
Cap Material	Polypropylene
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	7-3/4″
Media Type	Synthetic Polypropylene
Origin	China
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Product Weight & Dimensions
Product Weight (lbs)	350

Product Information

SKUPSJE-170-05
CategorySediment Filters

Neo-Pure PSJE-170-05 Pleated Synthetic Jumbo Cartridge 5 micron
