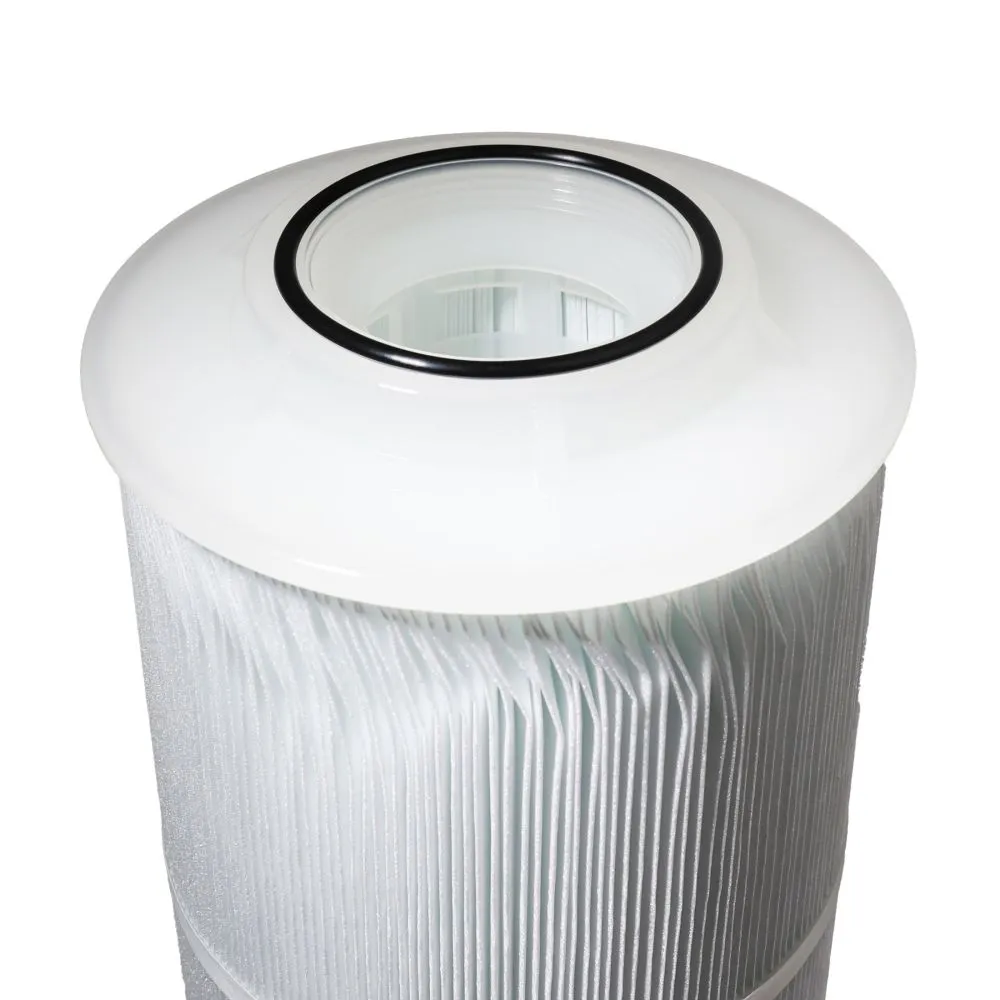

Neo-Pure PSJE-90-05 Pleated Synthetic Jumbo Cartridge 5 micron

The Neo-Pure PSJE-90-05 Pleated Synthetic Jumbo Cartridge features pleated synthetic polypropylene filter media which allows for lower initial pressure drop and higher flow rates which means fewer cartridges to change. The PSJE Series filter’s pleated surface area translates to increased filter life, higher dirt loading capacity and increased particle removal.
Features:

• Pleated Filter Design. The pleated filter design on the PSJE-90-05 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
• Increased Cartridge Strength. The center tube, end cap and filter media are bonded as one unit for additional strength.
• Low Maintenance. The Neo-Pure PSJE-90-05 requires fewer cartridge changes, which results in lower maintenance costs. The cartridge is cleanable and reusable in most applications.
• High Value At A Competitive Price. The PSJE-90-05 Synthetic Jumbo filter cartridge offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.

Additional Specifications:

• Length: 19-1/2″
• Diameter: 7-3/4″
• Micron Rating: 5.0 micron
• Surface Area: ~90 sq. ft.
• Max Temperature: 140°F
• Max Flow rate: 100 gpm

Applications:

• Potable drinking water
• Industrial waste water treatment
• Food and beverage
• Reverse osmosis prefiltration
• Cooling tower filtration
• Desalination prefiltration
• Process water
• Oil/Gas
• Paper and Pulp
• Paints
• Inks
• Coatings

Note: Our PSJE filters are assembled in a certified clean room.

Compatible with:

Harmsco® Compatible

HC/90-5W-HF, HC/90-5
