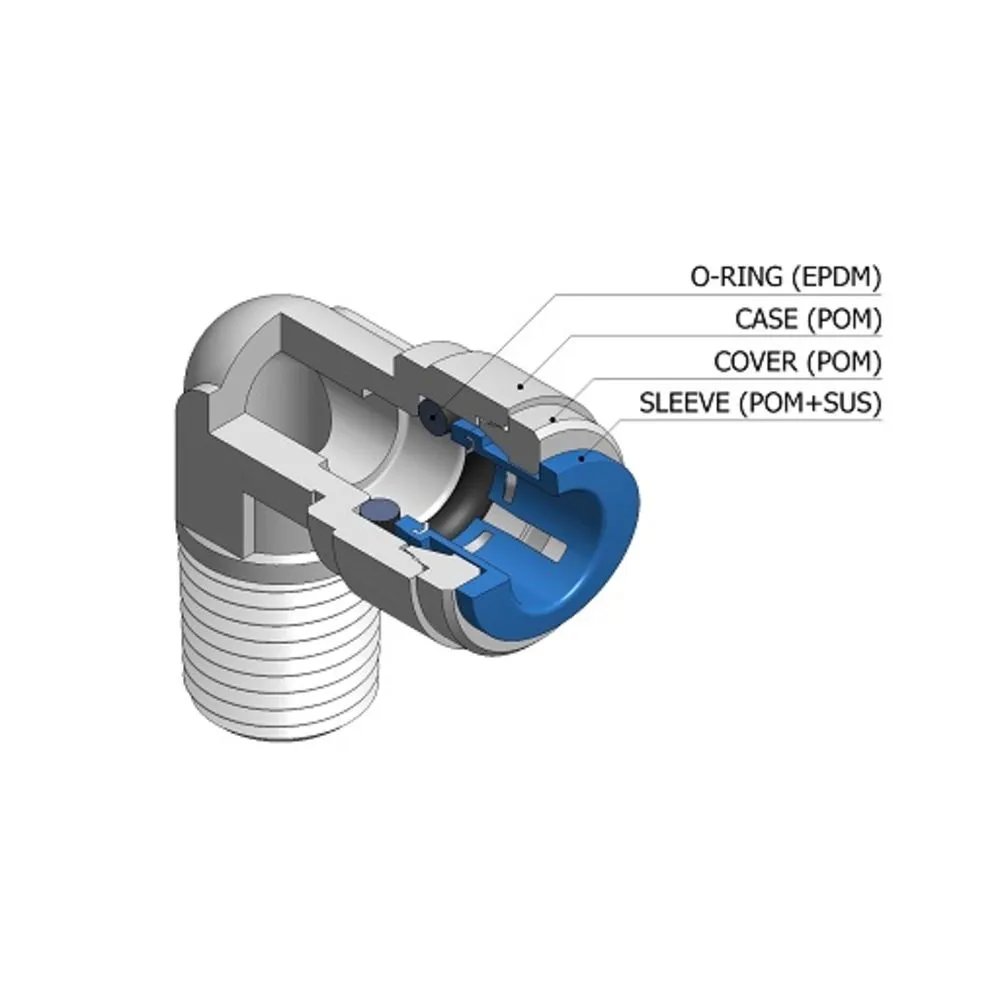

The NeoFit female adapters are used to connect OD tubing sizes to male UNS threads. Manufactured in acetal with food grade EPDM O-ring, these fittings were design for water, beverage, and food applications. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
|
Size |
NEO: Working PSI @ Temp |
JG: Working PSI @ Temp |
DM Fit: Working PSI@ Temp | Mur-Lok: Working PSI@ Temp |
|---|---|---|---|---|
|
1/4″ |
150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140F | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
3/8″ |
150psi @ 68F/ 60psi @ 150F |
150psi @ 70F/ 60psi at 140F |
150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
1/2″ |
150psi @ 68F/ 60psi @ 150F |
150psi @ 70F/ 60psi at 140F |
150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
|
Certifications |
NEO: NSF 51 & 61 Certified |
JG: NSF 51 & 61 Certified |
DM Fit: NSF 51 & 61 Certified | Mur-Lok: NSF 58 & 372 Certified |
|
Size |
NEO: Max Torque |
JG: Max Torque |
DM Fit: Max Torque |
Mur-Lok: Max Torque |
|---|---|---|---|---|
|
1/4″ |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
1ft/lb (1.5nm) |
|
3/8″ |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
|
1/2″ |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
2ft/lb (3 nm) |
| Product Details | |
|---|---|
|
Body Material |
Polypropylene |
|
Max Pressure (Psi) |
Max 230 psi at 33° F Max. 230 psi at 68° F Max. 150 psi at 150° F |
|
Push-In Size |
1/4″ OD |
|
Color / Finish |
Natural White |
|
Sub-Type |
Female Adapter |
|
Type |
Adapter |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
| Product Details | |
|---|---|
|
Body Material |
Polypropylene |
|
Max Pressure (Psi) |
Max 230 psi at 33° F Max. 230 psi at 68° F Max. 150 psi at 150° F |
|
Push-In Size |
1/4″ OD |
|
Color / Finish |
Natural White |
|
Sub-Type |
Female Adapter |
|
Type |
Adapter |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
| Product Details | |
|---|---|
|
Body Material |
Polypropylene |
|
Max Pressure (Psi) |
Max 230 psi at 33° F Max. 230 psi at 68° F Max. 150 psi at 150° F |
|
Push-In Size |
1/4″ OD |
|
Color / Finish |
Natural White |
|
Sub-Type |
Female Adapter |
|
Type |
Adapter |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
