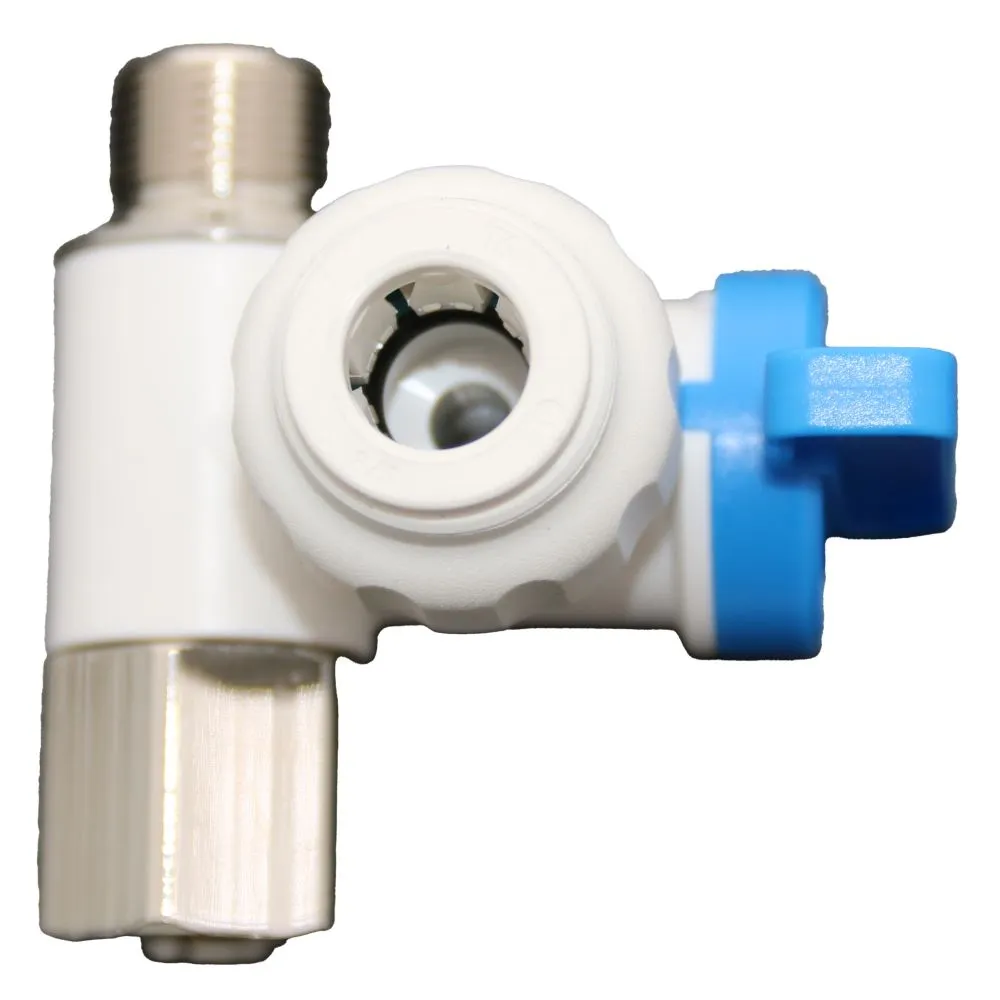

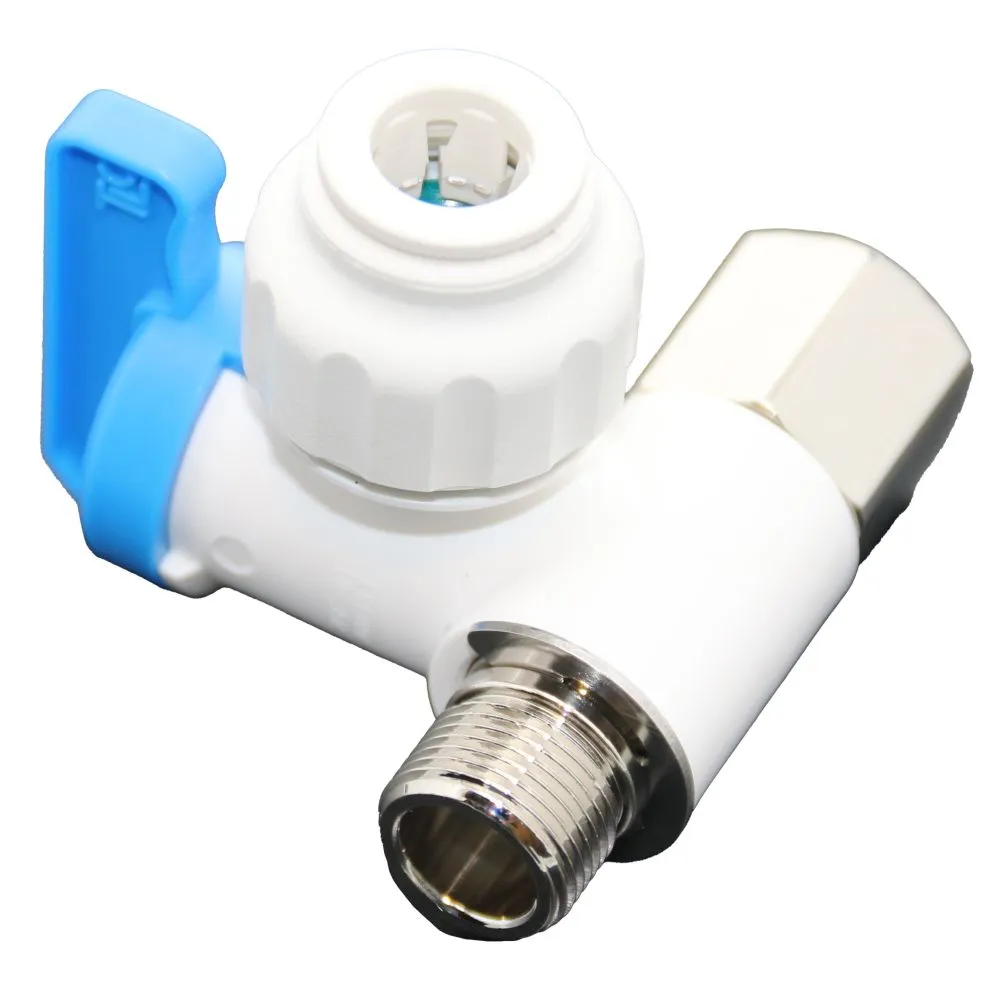

NeoFit – Polypropylene Natural White Stop Valve Adapter 3/8″ OD x 3/8″ Brass Comp Thread

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: PSABV6-BCP3

CATEGORY: Valves

Description

Features:

3/8″ Male Compression Connection
3/8″ Female Compression Connection
3/8″ OD JG Connection
Polypropylene Body
Polysulfone Shaft
EPDM O-Rings
Stainless Steel Gripper
145 Max. Working Pressure @ 68° F
58 Max. Working Pressure @ 140° F
Made with same quality materials required by NSF-61

Fittings Comparison: Polypropylene White

Size	NEO: Working PSI @ Temp	JG: Working PSI @ Temp	DM Fit: Working PSI@ Temp	Mur-Lok: Working PSI@ Temp
1/4″	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
3/8″	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
1/2″	150psi @ 68F/ 60psi @ 150F	150psi @ 70F/ 60psi at 140F	150psi @ 70F/ 60psi @ 150F	150psi @ 70F/ 60psi @ 140F
Certifications	NEO: NSF 51 & 61 Certified	JG: NSF 51 & 61 Certified	DM Fit: NSF 51 & 61 Certified	Mur-Lok: NSF 58 & 372 Certified

Size	NEO: Max Torque	JG: Max Torque	DM Fit: Max Torque	Mur-Lok: Max Torque
1/4″	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)	1ft/lb (1.5nm)
3/8″	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)
1/2″	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)	2ft/lb (3 nm)

Specifications

Product Details
Inlet Connection	3/8″
Material Of Construction	Polypropylene
Outlet Connection	3/8″
Working Pressure (Psi)	150
Color / Finish	Natural White
Product Weight & Dimensions
Product Weight (lbs)	0.1

Product Details
Inlet Connection	3/8″
Material Of Construction	Polypropylene
Outlet Connection	3/8″
Working Pressure (Psi)	150
Color / Finish	Natural White
Product Weight & Dimensions
Product Weight (lbs)	0.1

Product Details
Inlet Connection	3/8″
Material Of Construction	Polypropylene
Outlet Connection	3/8″
Working Pressure (Psi)	150
Color / Finish	Natural White
Product Weight & Dimensions
Product Weight (lbs)	5
