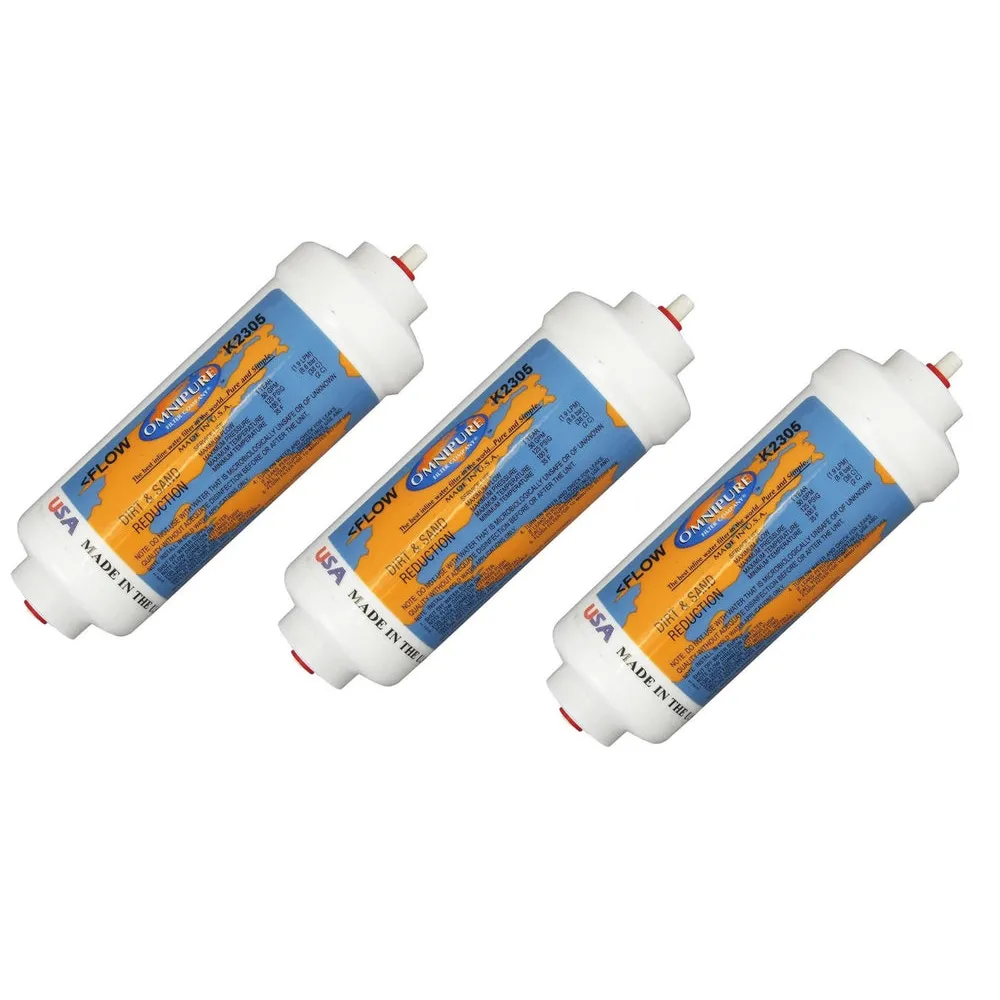

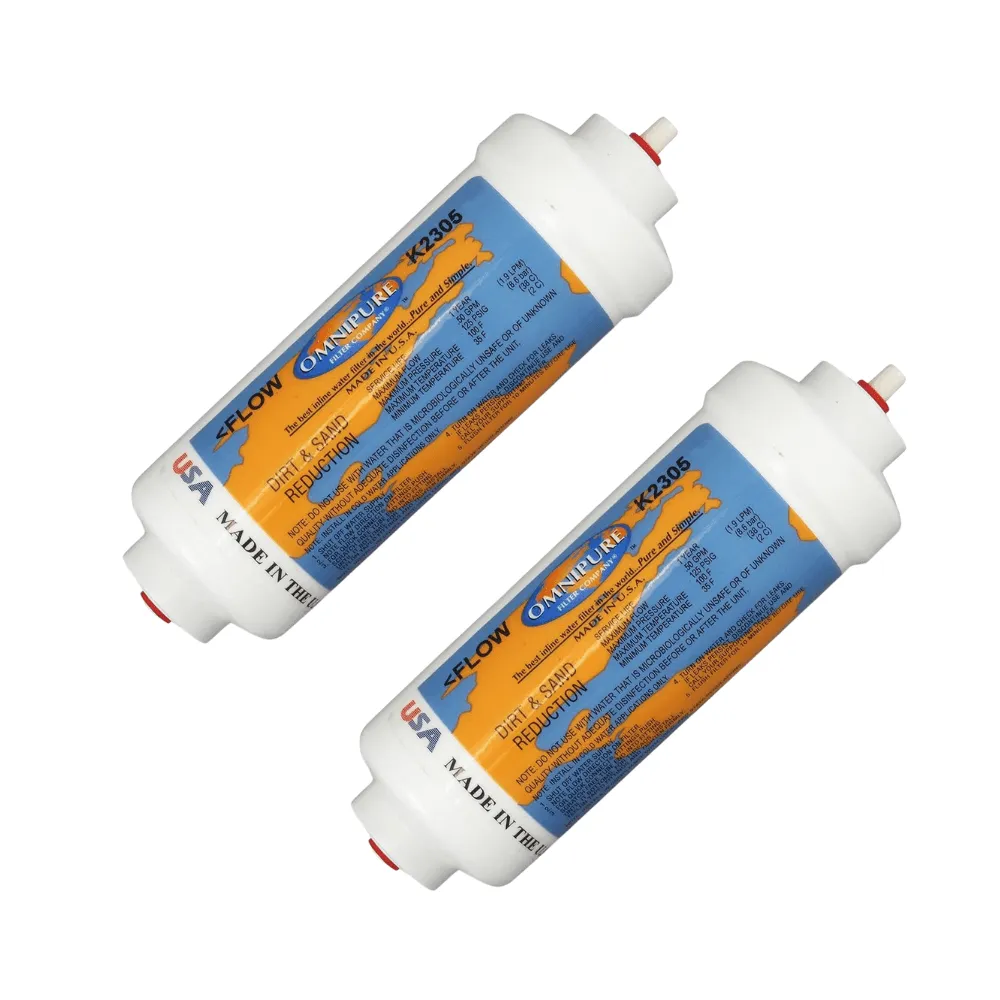

The Omnipure K-Series (K2305) Filter is a 5 micron sediment filter built to remove dirt, sand, and sediment. The fittings come in 1/4″ and 3/8″ John Guest Quick Connect options that make this filter really easy to install.
- Dimensions: 2″ W X 6″ L
- Flow Rate: .5 GPM
- Maximum Pressure: 125 PSI
- Maximum Temperature: 100 F
- Rating: 5 Micron Rating
- Features: Polypropylene depth filtration
- Fitting Size: 1/4″ OD Quick Connect, and 3/8″ OD Quick Connect
| National Pipe Thread (NPT) Size Measured Against a Ruler* |
Actual Diameter
(Inches) |
National Pipe Thread (NPT)
(Fractional) |
| 0.405″ |
1/8″ |
| 0.540″ |
1/4″ |
| 0.675″ |
3/8″ |
| 0.840″ |
1/2″ |
*NOTE: A very common misconception is that a 1/4″ NPT measures as 1/4 inch on a ruler or tape measurer. However, that is not the case. NPT will measure larger in diameter. Above is a sizing reference to help clarify.
