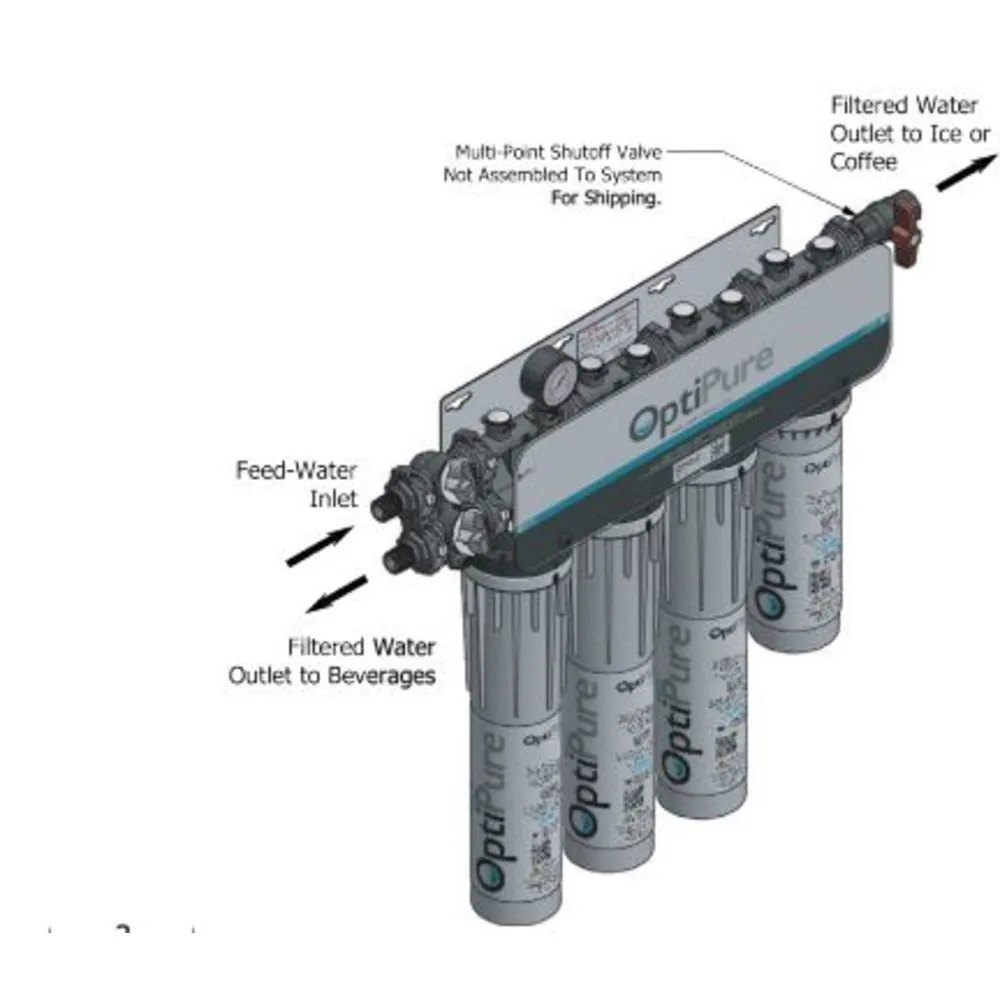

The OptiPure QT3MP Multi-Point Filtration System provides a combination of filters to meet the requirements of different equipment applications including fountain beverages, ice, and coffee. The first three Qwik-Twist cartridges reduce sediment down to 0.5-microns and chlorine, taste & odor at a combined flow rate of up to 6.75 gpm for 67,500-gallons. The fourth cartridge is a secondary filter that provides added scale protection with IsoNet® for ice machines and coffee brewers.
NSF certified under standard 42
| Product Details | |
|---|---|
|
Capacity |
67,500 gals.(255,488 L) |
|
Inlet Connection |
¾″ MNPT |
|
Max Pressure (Psi) |
125 |
|
Min Pressure (Psi) |
10 |
|
Outlet Connection |
¾″ MNPT |
|
Temperature Range |
35˚ – 100˚F(2˚ – 38˚C) |
|
Flow Rate |
6.75 gpm |
|
Micron Rating |
0.5 microns (nominal) |
| Shipping Dimensions | |
|
Shipping Length |
4.75 in. |
|
Shipping Width |
26.125 in. |
|
Shipping Height |
23.25 in. |
| Product Weight & Dimensions | |
|

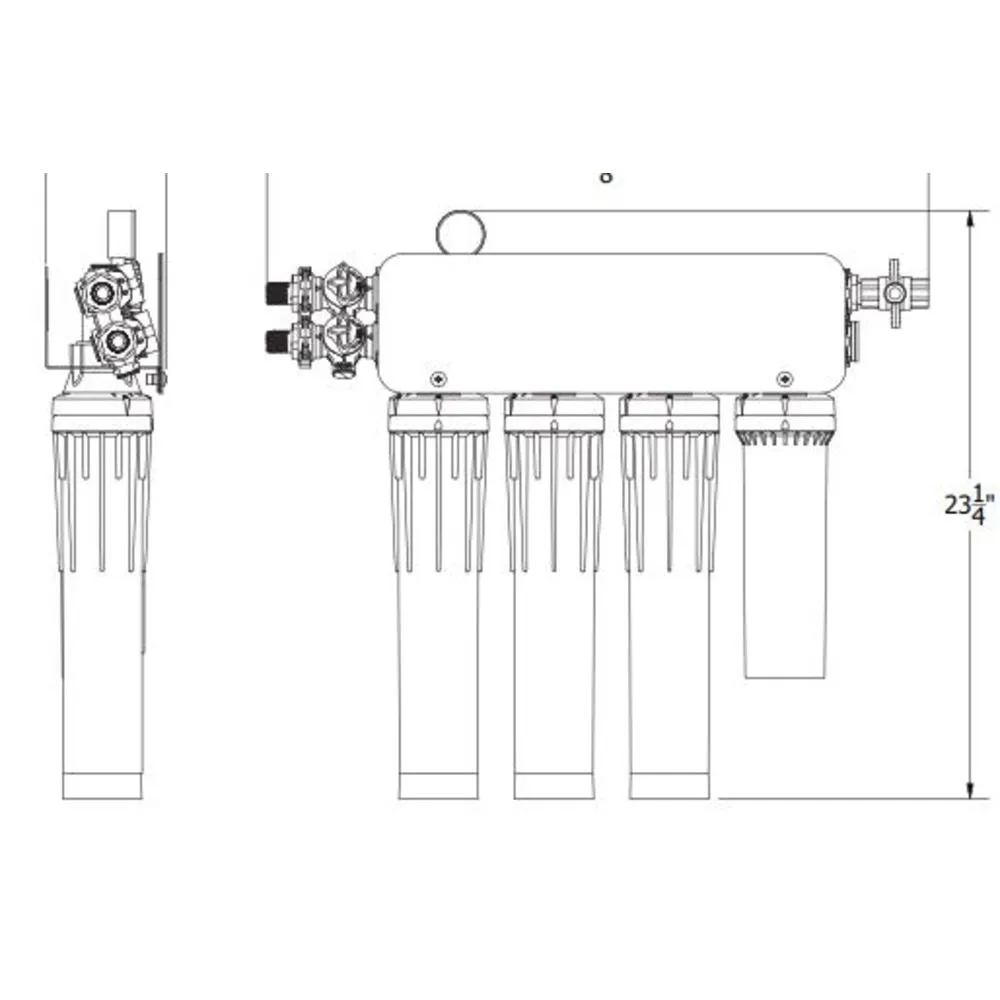

Product Height |
23-1/4″ |
|
Product Length |
4-3/4″ |
|
Product Width |
26-1/8″ |
|
Product Weight (lbs) |
16 |
