| 1/2″ x1/2″ Bulkhead Unions | ||
| John Guest | DM fit | Parker LIQUIfit |
| PI1216S | ABU0707 | 6316-62-00WP2 |

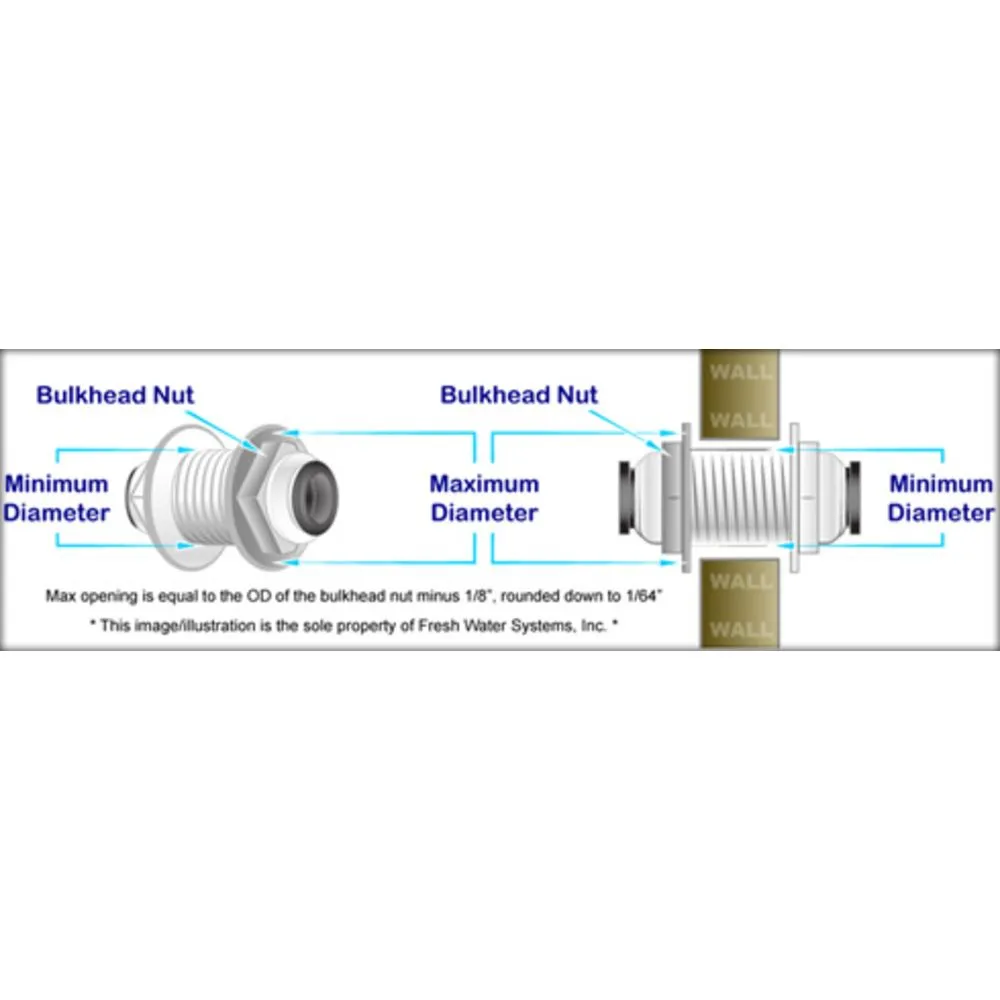

| Min – Max Hole Size |
Min – Max Hole Size |
Min – Max Hole Size |
| 1-1/64″ to 1-13/64″ | 1-3/64″ to 1-23/64″ | 1″ to 1-7/32″ |
| Product Details | |
|---|---|
|
Application |
Water Food Beverage Air Carbonation |
|
Body Material |
Nylon |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
200 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
35 |
|
Mounting Options |
Panel Mount |
|
Push-In Size |
1/2″ OD |
|
Seal Material |
EPDM |
|
Series |
LIQUIFit |
|
Shape |
Straight |
|
Color / Finish |
White |
|
Origin |
Mexico |
|
Sub-Type |
Union Bulkhead |
|
Type |
Bulkhead |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
| Product Details | |
|---|---|
|
Application |
Water Food Beverage Air Carbonation |
|
Body Material |
Nylon |
|
Max Pressure (Psi) |
230 |
|
Max Temp (°F) |
200 |
|
Min Pressure (Psi) |
Vacuum |
|
Min Temp (°F) |
35 |
|
Mounting Options |
Panel Mount |
|
Push-In Size |
1/2″ OD |
|
Seal Material |
EPDM |
|
Series |
LIQUIFit |
|
Shape |
Straight |
|
Color / Finish |
White |
|
Origin |
Mexico |
|
Sub-Type |
Union Bulkhead |
|
Type |
Bulkhead |
| Warranty & Certifications | |
|
Product Certification Standard |
NSF/ANSI 61, NSF/ANSI 51 |
