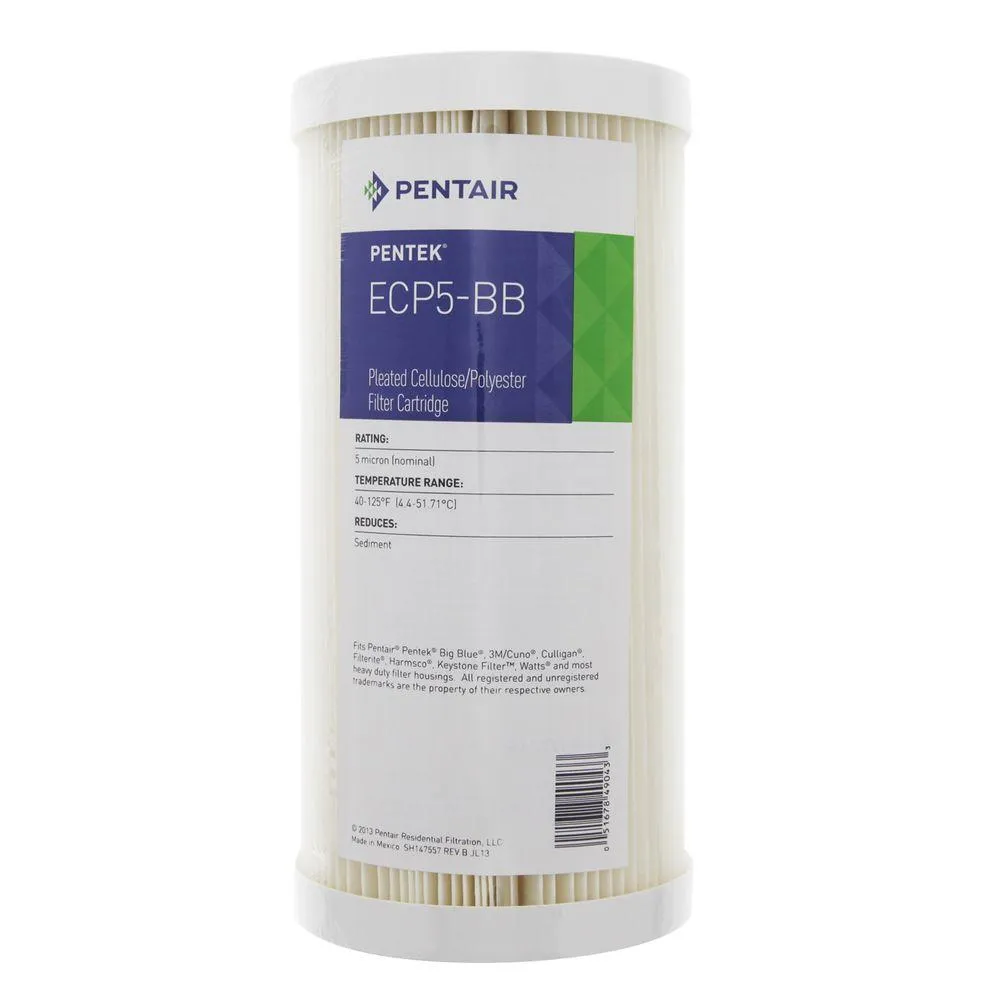

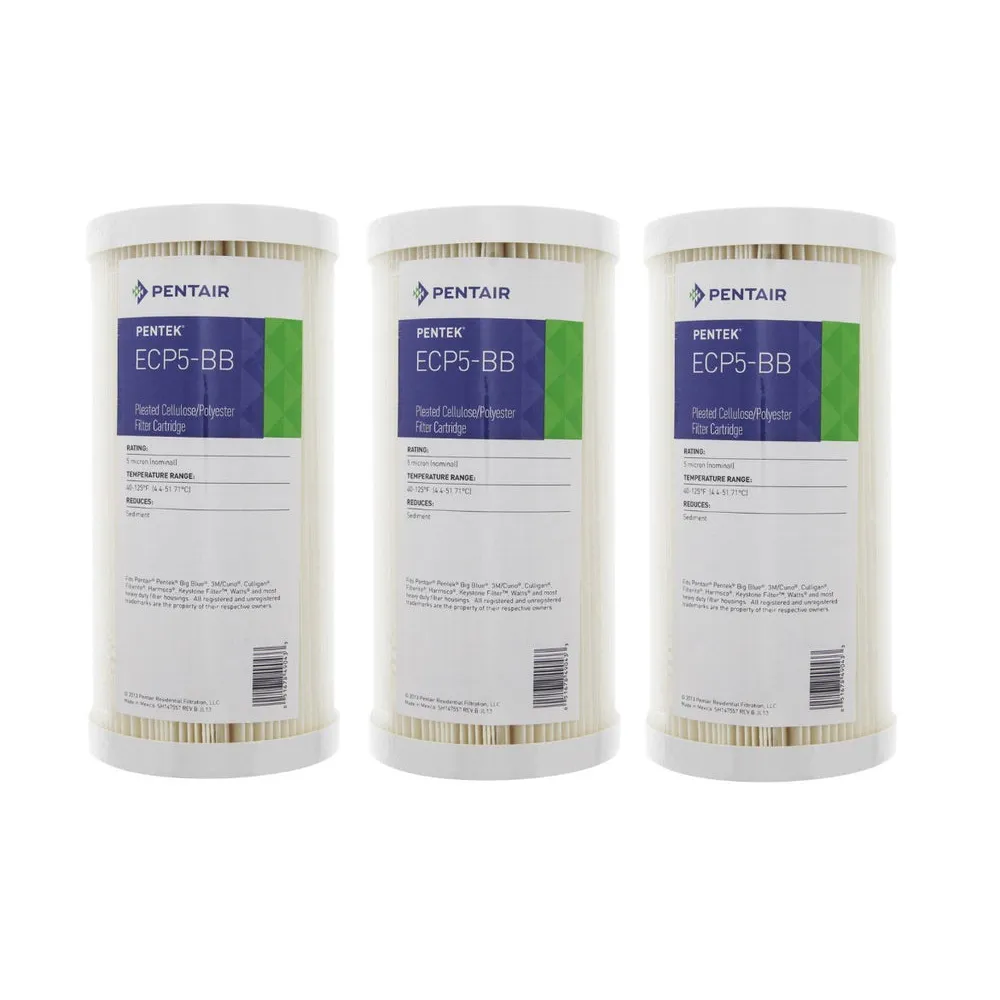

ECP Series cartridges are manufactured from a special formulation of resin-impregnated cellulose and polyester fibers.
This unique blend of materials provides a higher wet strength than regular cellulose cartridges. It also provides high flow rates and dirt holding capacity, while maintaining extremely low pressure drop.
The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat block in this fashion fuses the components together forming a unified end cap and gasket.
The new ECP cartridges contain more media surface area than most competitive cartridges. The 10 ” Big Blue ECP cartridges contains 18 sqft – eighteen square feet of media.
|
Micron Rating (nominal)
|
Dimensions
|
Model
|
Pressure Drop
|
|
5
|
4-1/2″x10″
|
ECP5-BB
|
1 psi @ 20 GPM
|
Materials of Construction:
