Procon Pump NSF Brass 100 GPH 3/8″ NPT – 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 112B100F11BA250

CATEGORY: Clamps & Mounts

Description

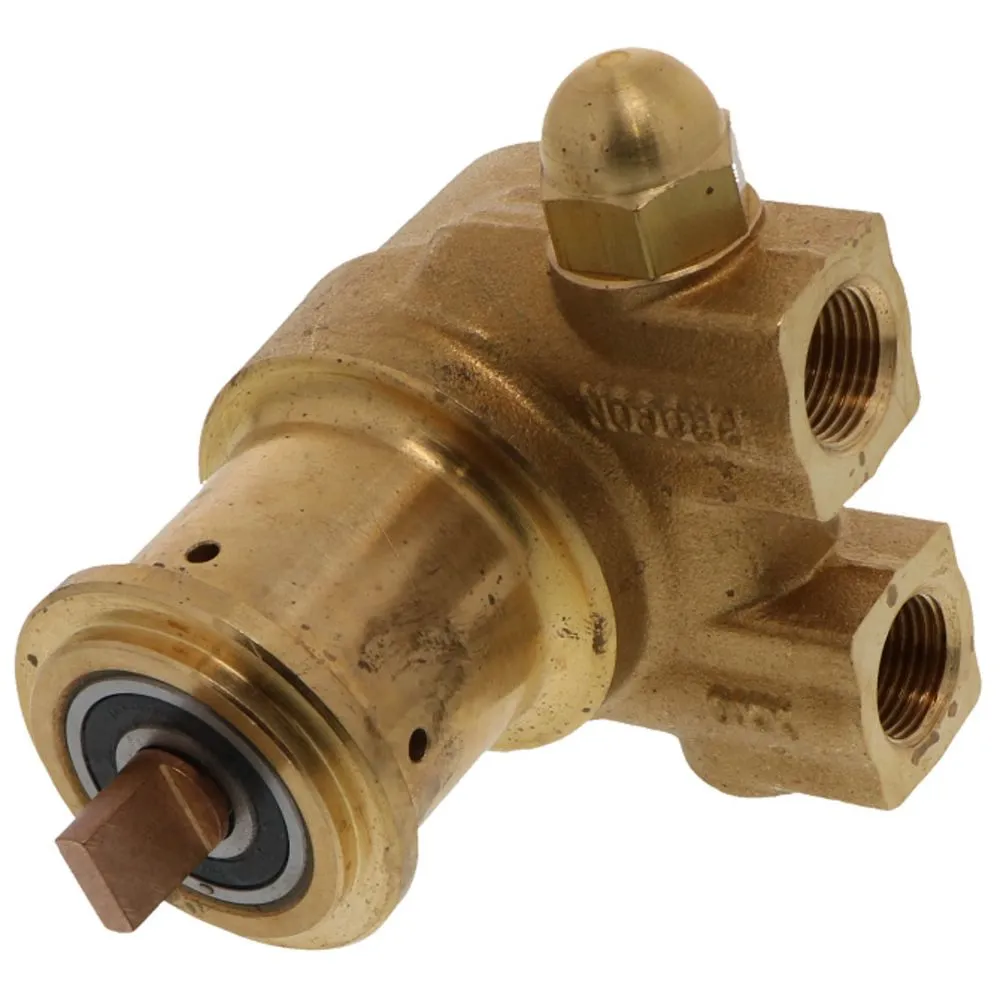

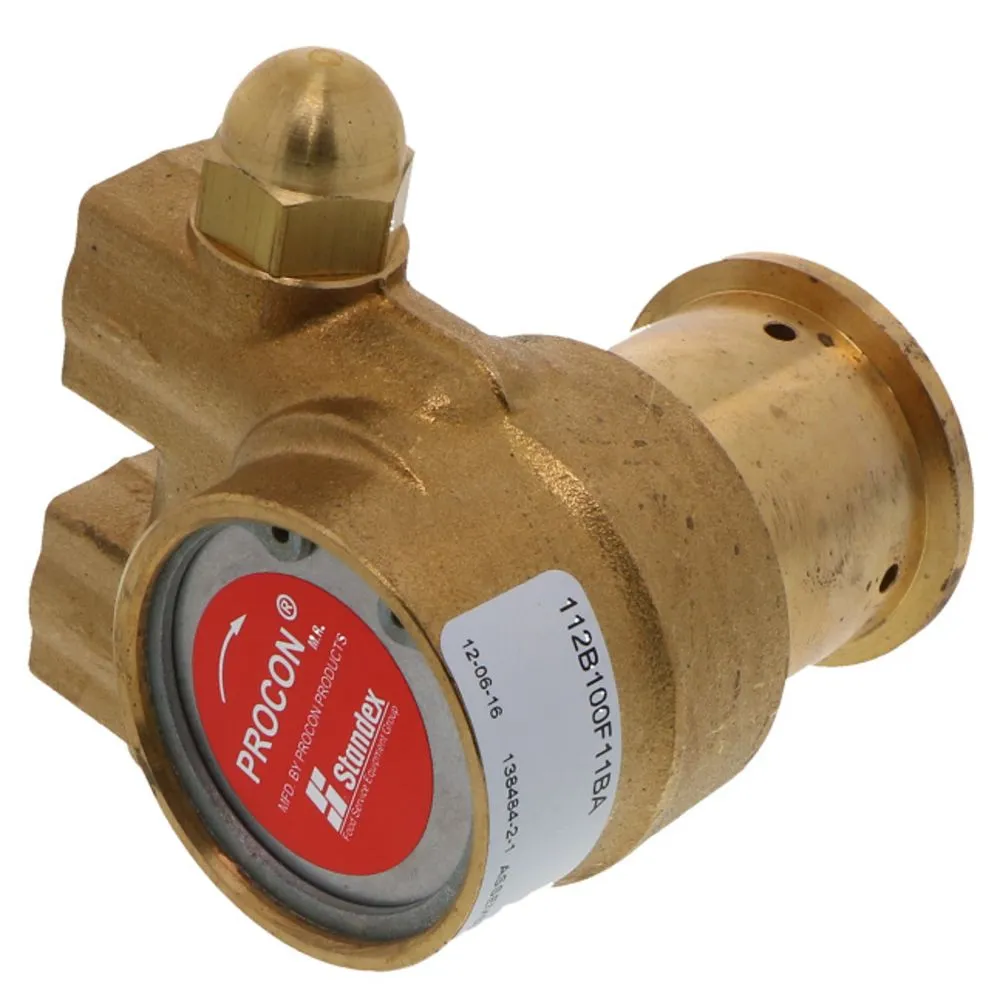

The Procon Pump NSF Brass 100 GPH 3/8″ NPT – 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on) is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112B100F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 250 PSI. The 112B100F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Leak-free. The seal configuration uses Nitrile Type 21, which will prevent leakage.
NSF Certified.
NSF/Ansi Standard 169 for special purpose food equipment and devices.
Typical Applications. Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Low Maintenance. The Series 2 pumps are self-priming, so there is virtually no maintenance.

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Surface Area	3.25 Square”
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	3.5 in.
Shipping Width	3.5 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	3.5

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Surface Area	3.25 Square”
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	2.5

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Surface Area	3.25 Square”
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	26.4

Product Information

SKU112B100F11BA250
CategoryClamps & Mounts

Procon Pump NSF Brass 100 GPH 3/8″ NPT – 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

Specifications

Product Information
