Description

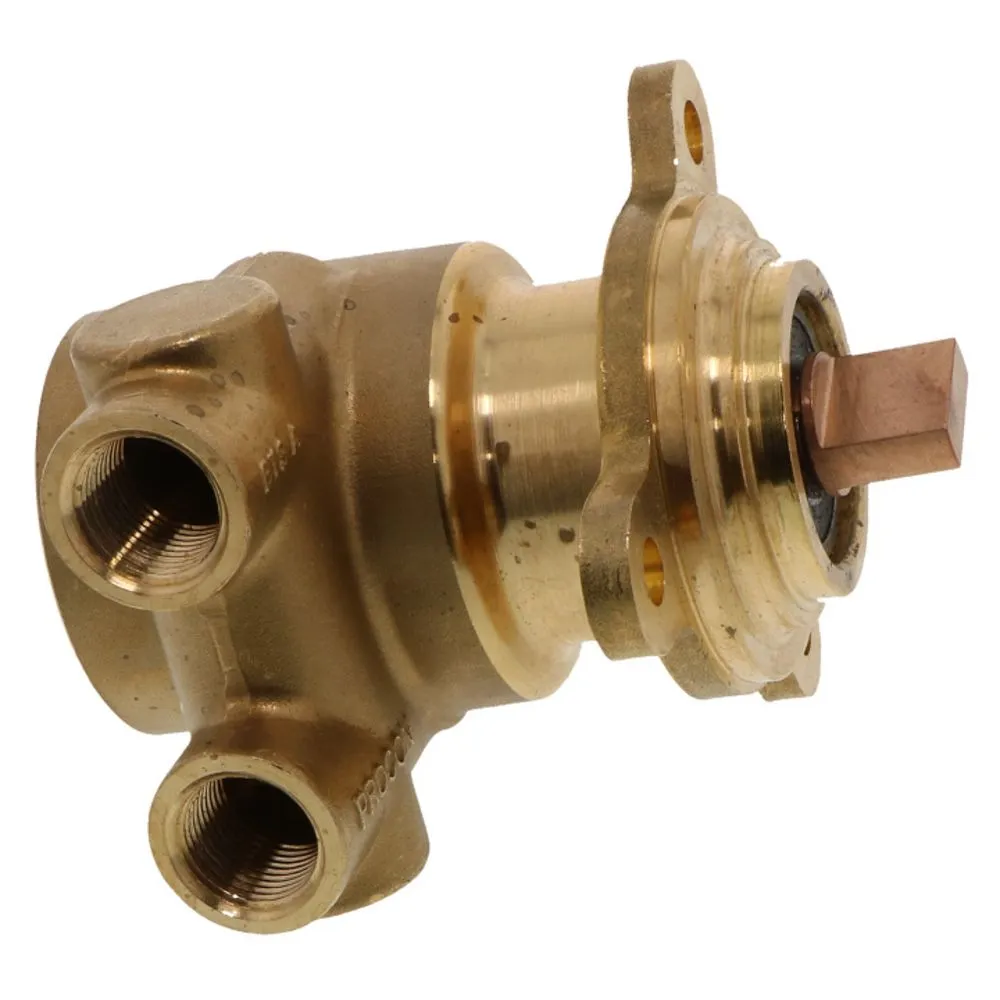

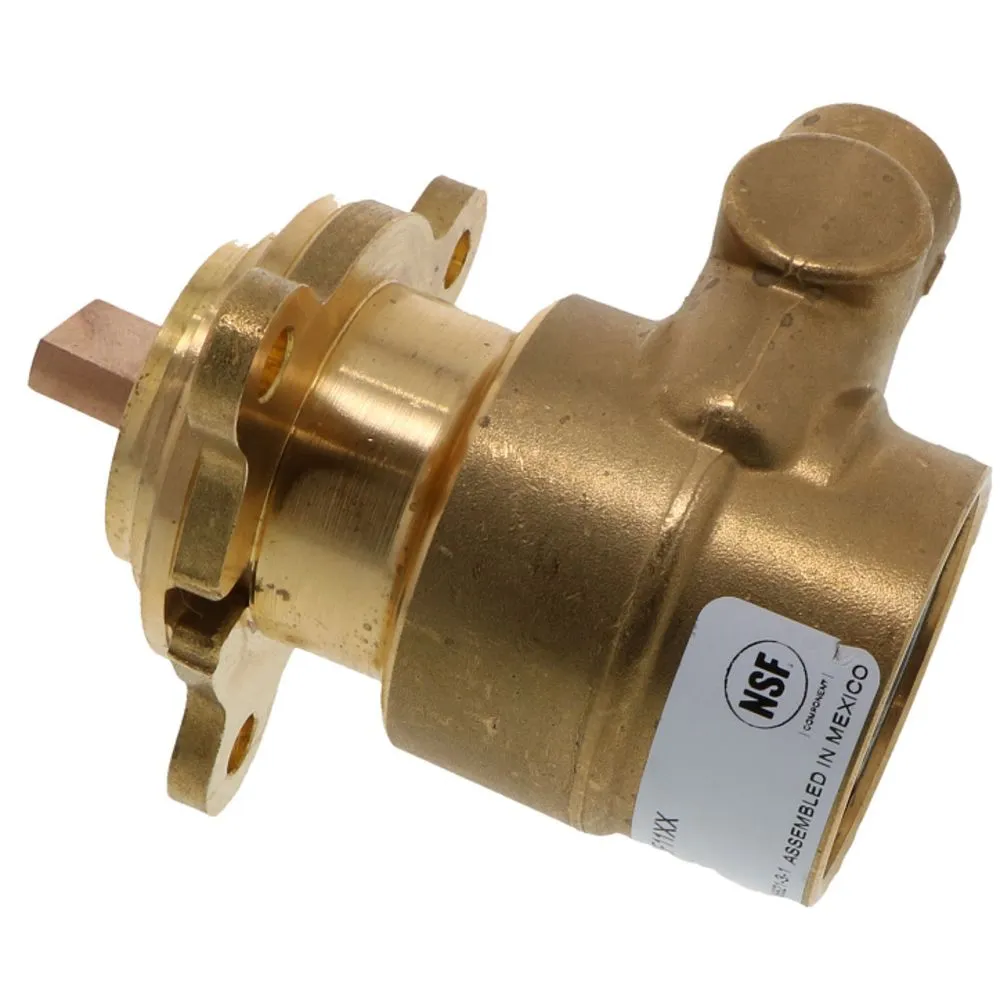

The Procon Pump NSF Brass 100 GPH 3/8″ NPT w/ Oversize Coupling (Bolt-on) is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 112L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 112L100F11XX pump is designed to be bolted directly to the motor.

Features:

The seal configuration uses Nitrile Type 21, which will prevent leakage.
NSF/Ansi Standard 169 for special purpose food equipment and devices.
The Series 2 pumps are self-priming, so there is virtually no maintenance.

Applications:

Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Note: The NSF Procon 112L100F11XX is the replacement pump for Haskris Chillers.

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Mounting Options	Bolt-On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	3
Product Length	3.25
Product Width	3
Product Weight (lbs)	3

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Mounting Options	Bolt-On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	11 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5.25
Product Length	13
Product Width	5.25
Product Weight (lbs)	28.621

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Mounting Options	Bolt-On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	100
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Information

SKU112L100F11XX
CategoryFittings & Connectors

Procon Pump NSF Brass 100 GPH 3/8″ NPT w/ Oversize Coupling (Bolt-on)
