Procon Pump NSF Brass 110 GPH 3/8″ NPT – 225 psi PRV w/ .188″ Double Flat Drive (Clamp-on)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 112A100F11BA225

CATEGORY: Clamps & Mounts

Description

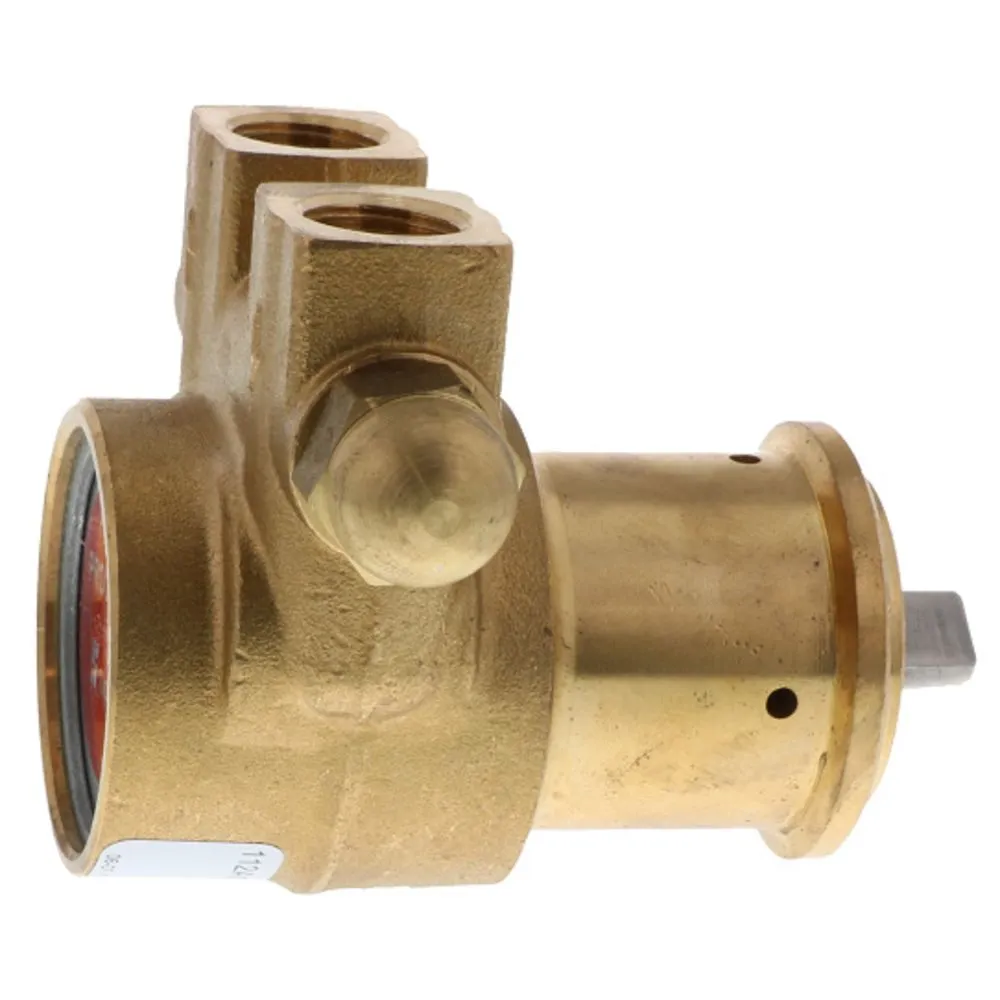

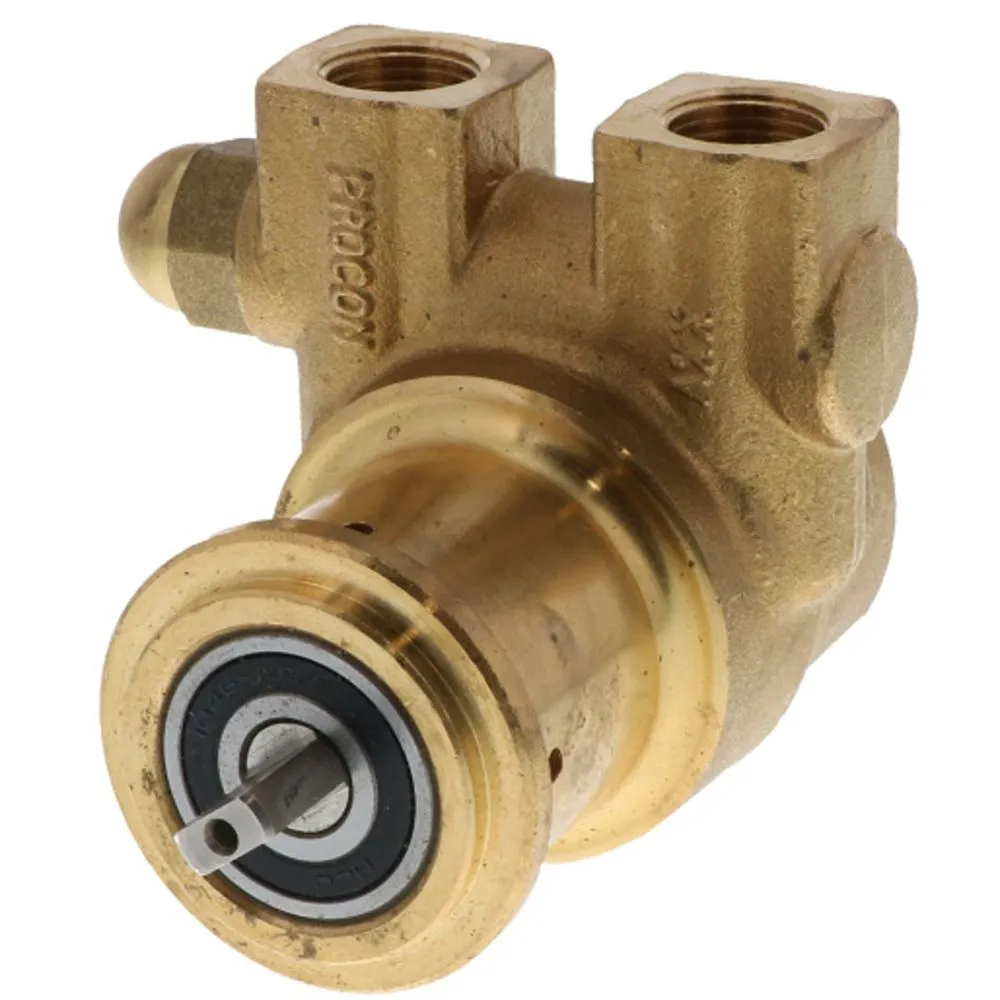

The Procon Pump NSF Brass 110 GPH 3/8″ NPT – 225 psi PRV w/ .188″ Double Flat Drive (Clamp-on) is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 3/8″ NPT, with an intergral strainer, and the pump has a flow-rate of 110 gallons per hour. The seal configuration for the 112A100F11BA225 uses Nitrile Type 21 seals which prevents leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The pressure relief valve for this pump is set for 225 PSI. The 112A100F11BA225 pump is designed to be directly connected to the motor with a stainless steel clamp.

Features:

Leak-free.The seal configuration uses Nitrile Type 21, which will prevent leakage.
NSF CertifiedNSF/Ansi Standard 169 for special purpose food equipment and devices.
Low Maintenance. The Series 2 pumps are self-priming, so there is virtually no maintenance.

Applications:

Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	150
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	110
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	3 in.
Shipping Width	4 in.
Shipping Height	3 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	3

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	150
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	110
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	9.15

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	150
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	110
Pump Max Pressure (Psi)	250
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	26.4

Product Information

SKU112A100F11BA225
CategoryClamps & Mounts

Procon Pump NSF Brass 110 GPH 3/8″ NPT – 225 psi PRV w/ .188″ Double Flat Drive (Clamp-on)

Specifications

Product Information
