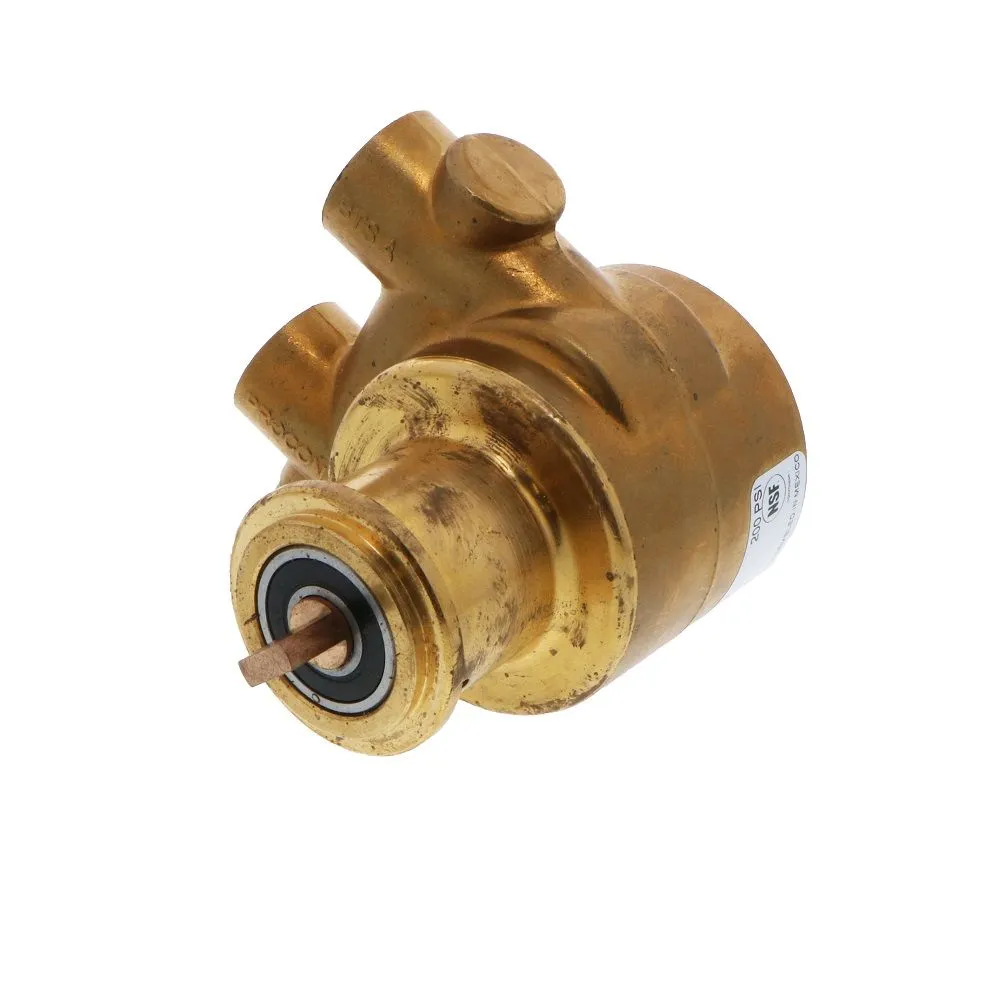

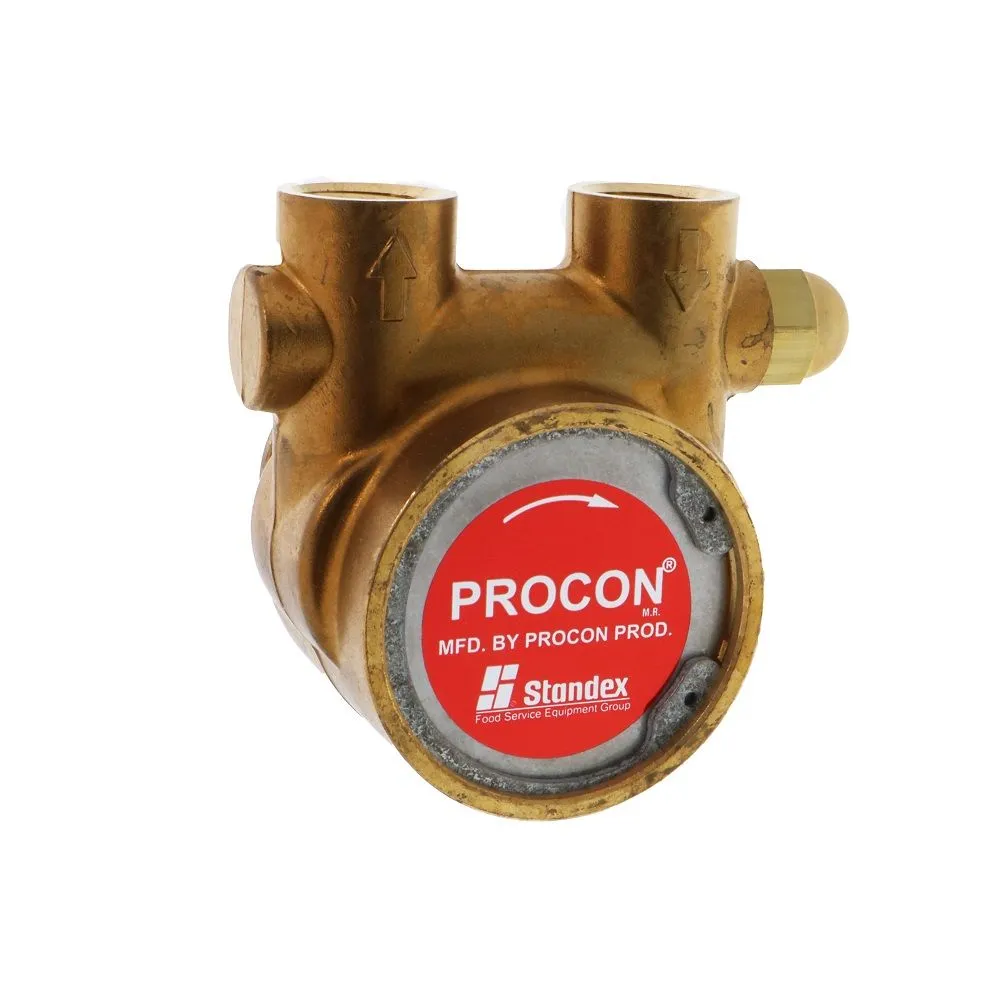

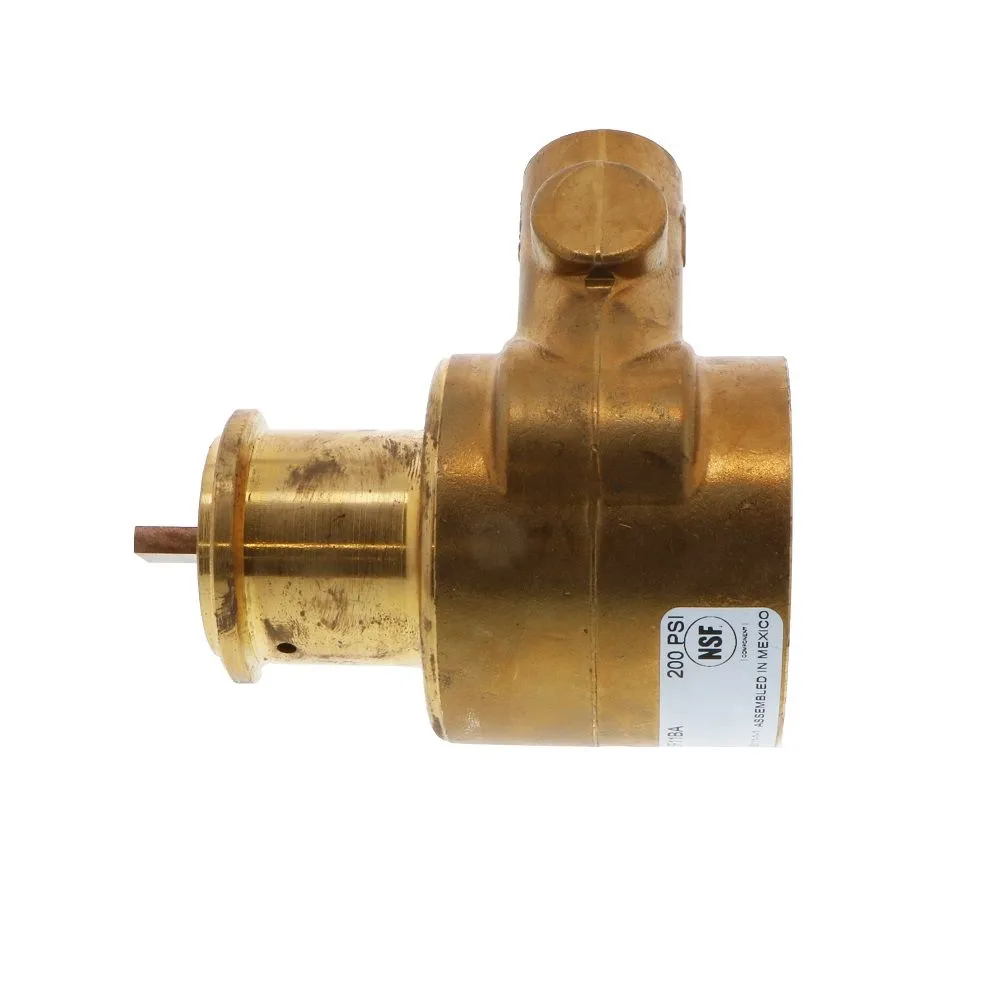

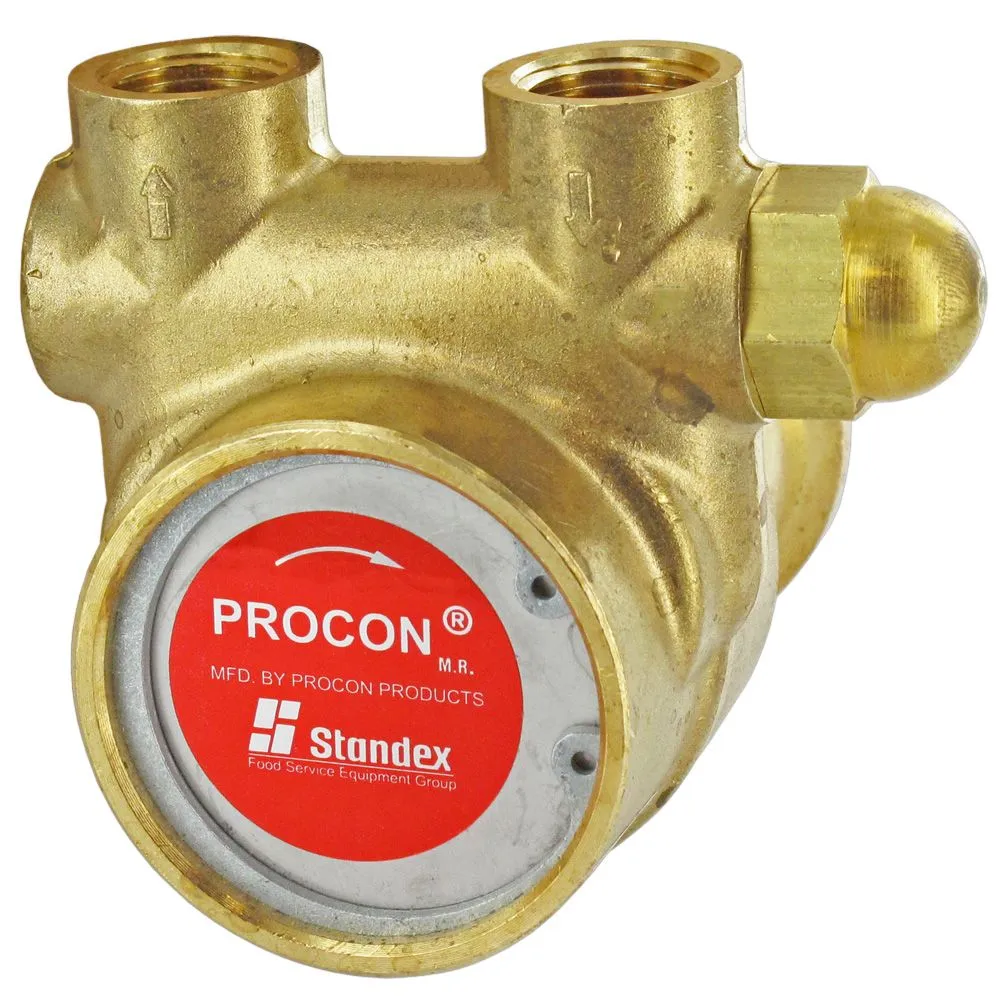

Procon Pump NSF Brass 265 GPH 1/2″ NPT – 170 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 114B265F11BA

CATEGORY: Clamps & Mounts

Description

The Procon Pump NSF Brass 265 GPH 1/2″ NPT – 170 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 1/2″ NPT, with an intergral strainer, and the pump has a flow-rate of 265 gallons per hour. The seal configuration for the 114B265F11BA uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The default pressure relief valve setting for this pump is 170 PSI. The 114B265F11BA pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

Capacity: 265 GPH
Nominal Speed: 1725 RPM
Relief Valve: 170 PSI
Rotation: Clockwise
Weight: 2.5 lbs
Port Size: 1/2″ NPT Inlet and Outlet with intergral strainer
Double Flat Drive: .188″

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ FPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2″ FPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	4.417
Pump Max Pressure (Psi)	250
Series	4
Size	1/2″
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3.75
Product Length	4.75
Product Width	4
Product Weight (lbs)	4.5

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ FPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2″ FPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	4.417
Pump Max Pressure (Psi)	250
Series	4
Size	1/2″
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	18

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ FPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	1/2″ FPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	4.417
Pump Max Pressure (Psi)	250
Series	4
Size	1/2″
Connection Type	Female (FPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	40.5

Product Information

SKU114B265F11BA
CategoryClamps & Mounts

Procon Pump NSF Brass 265 GPH 1/2″ NPT – 170 psi PRV w/ 1143 Bronze Coupling (Clamp-on)
