Procon Pump NSF Brass 60 GPH 3/8″ NPT – 130 psi PRV w/ .188″ Double Flat Drive (Clamp-on)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 112A060F11CB130

CATEGORY: Clamps & Mounts

Description

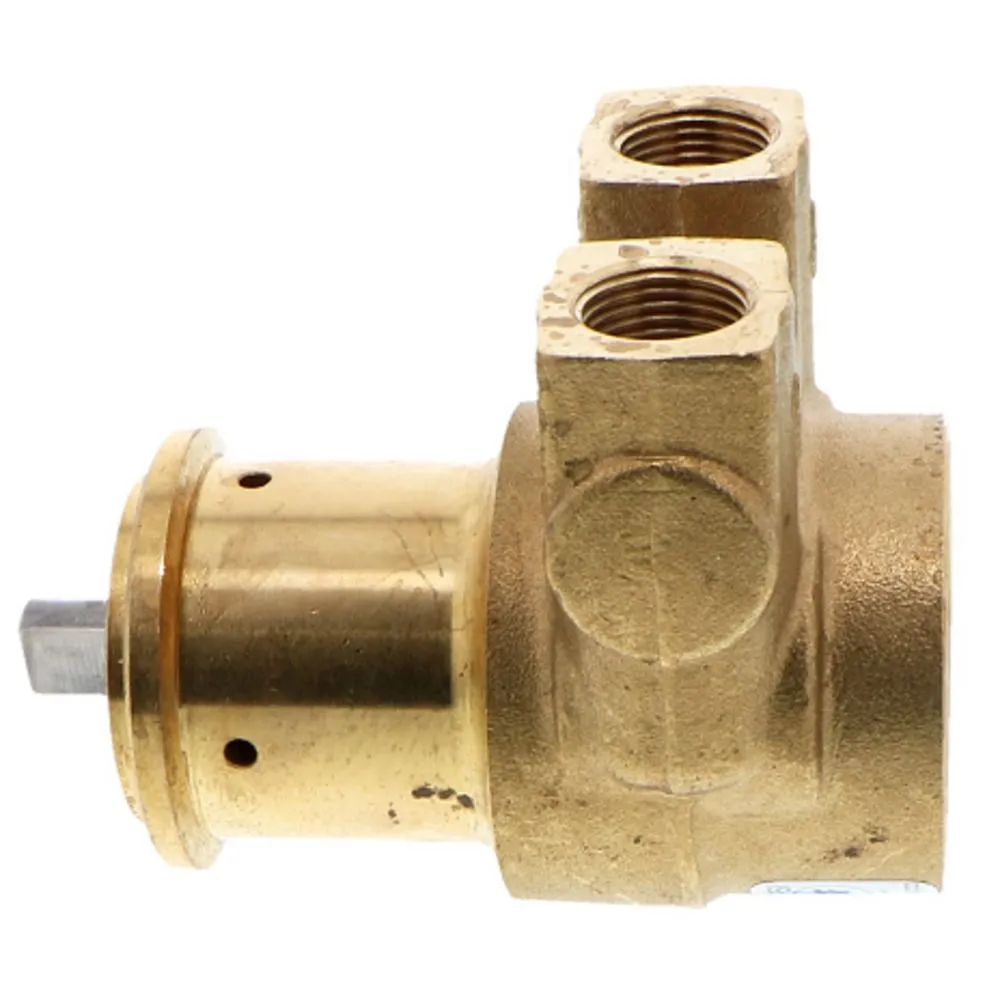

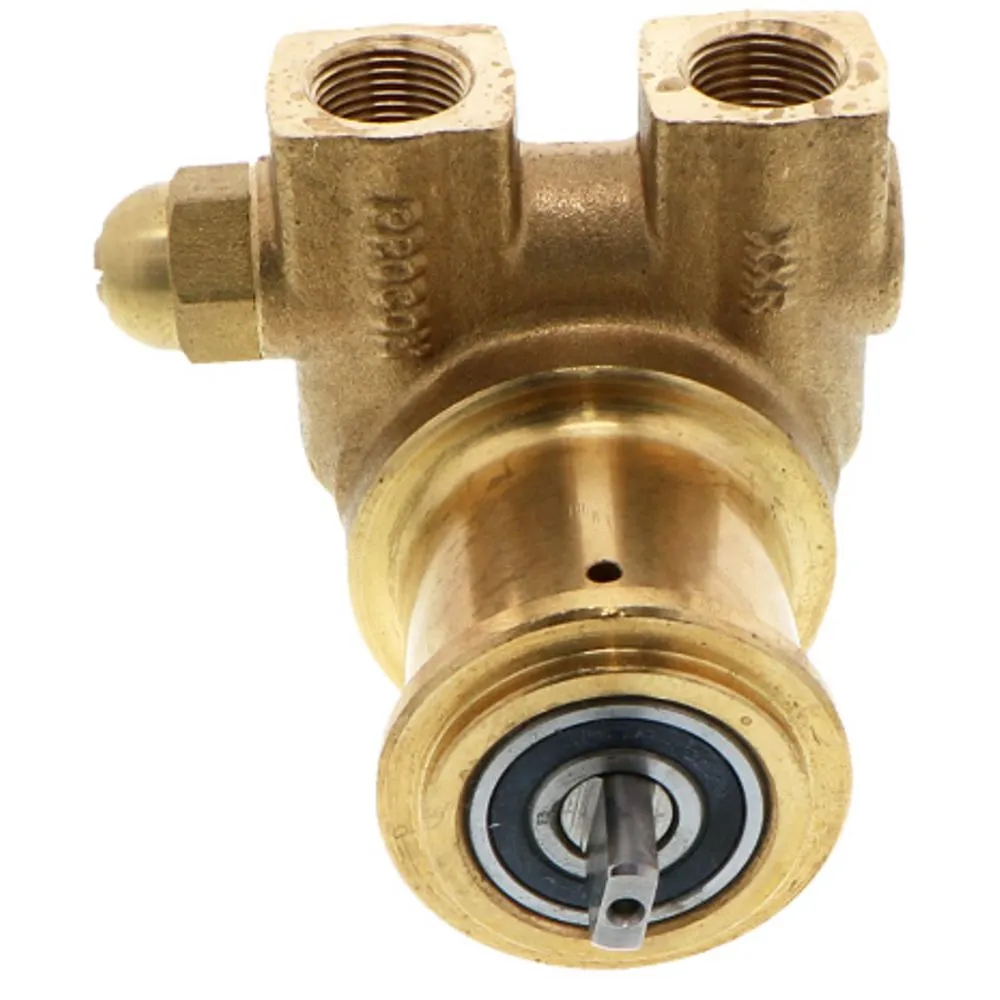

The Procon Pump NSF Brass 60 GPH 3/8″ NPT – 130 psi PRV w/ .188″ Double Flat Drive (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188″ double flat drive. The inlet and outlet ports are 3/8″ NPT and the pump has a flow-rate of 60 gallons per hour. The seal configuration for the 112A060F11CB130 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 130 PSI. The 112A060F11CB130 pump is designed to be directly connected to the motor with a stainless steel clamp.
Additional Specifications:

Capacity: 60 GPH
Nominal Speed: 1725 RPM
NSF Standard 169 listed
Relief Valve: 130 PSI
Rotation: Clockwise
Weight: 2.5 lbs
Port Size: 3/8″ NPT Inlet and Outlet
Double Flat Drive: .188″

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	100
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	60
Pump Max Pressure (Psi)	150
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	3.25
Product Length	4
Product Width	3.5
Product Weight (lbs)	3

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	100
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	60
Pump Max Pressure (Psi)	150
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	9.4

Product Details
Body Material	Brass
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	3/8″ MPT
Min Pressure (Psi)	100
Mounting Options	Clamp On
Outlet Connection	3/8″ MPT
Pump Max Flow Rate (Gpm)	60
Pump Max Pressure (Psi)	150
Series	2
Size	3/8″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	36

Product Information

SKU112A060F11CB130
CategoryClamps & Mounts

Procon Pump NSF Brass 60 GPH 3/8″ NPT – 130 psi PRV w/ .188″ Double Flat Drive (Clamp-on)

Specifications

Product Information
