Procon Pump NSF Stainless Steel 240 GPH 1/2″ NPT w/ 1143 Bronze Coupling (Clamp-on)

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: 115B240F31XX

CATEGORY: Clamps & Mounts

Description

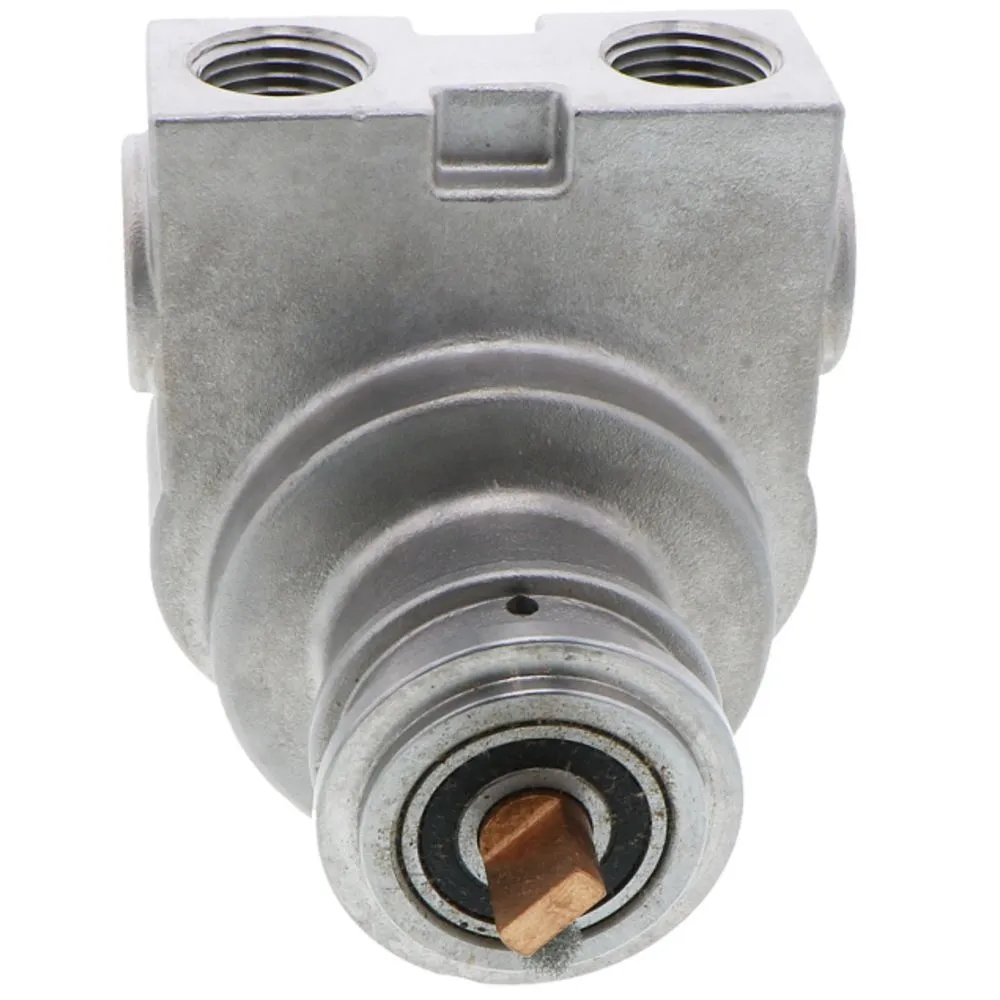

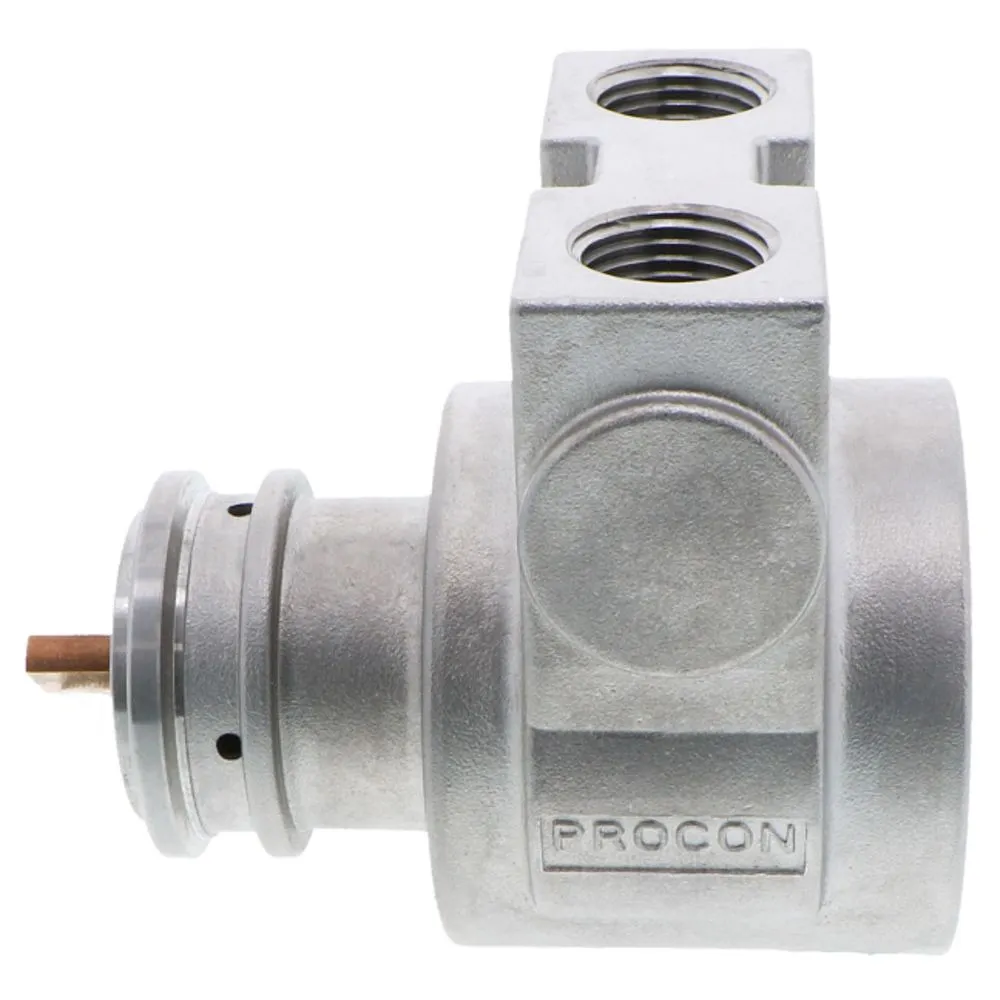

The Procon Pump NSF Stainless Steel 240 GPH 1/2″ NPT w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2″ NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 115B240F31XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 115B240F31XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:

Capacity: 240 GPH
Nominal Speed: 1725 RPM
Maximum Discharge Pressure: 250 PSI
Rotation: clockwise/slinger
Weight: 2.5 lbs
Port Size: 1/2″ NPT Inlet and Outlet
Stainless Steel

Specifications

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ MPT
Mounting Options	Clamp On
Outlet Connection	1/2″ MPT
Pump Max Flow Rate (Gpm)	240
Series	5
Size	1/2″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	4.5
Product Length	4.5
Product Width	3.5
Product Weight (lbs)	4.5

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ MPT
Mounting Options	Clamp On
Outlet Connection	1/2″ MPT
Pump Max Flow Rate (Gpm)	240
Series	5
Size	1/2″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	18

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2″ MPT
Mounting Options	Clamp On
Outlet Connection	1/2″ MPT
Pump Max Flow Rate (Gpm)	240
Series	5
Size	1/2″
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	12.5 in.
Shipping Width	13 in.
Shipping Height	5.5 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	13
Product Length	12.5
Product Width	5.5
Product Weight (lbs)	36.3

Product Information

SKU115B240F31XX
CategoryClamps & Mounts

Procon Pump NSF Stainless Steel 240 GPH 1/2″ NPT w/ 1143 Bronze Coupling (Clamp-on)

Specifications

Product Information
