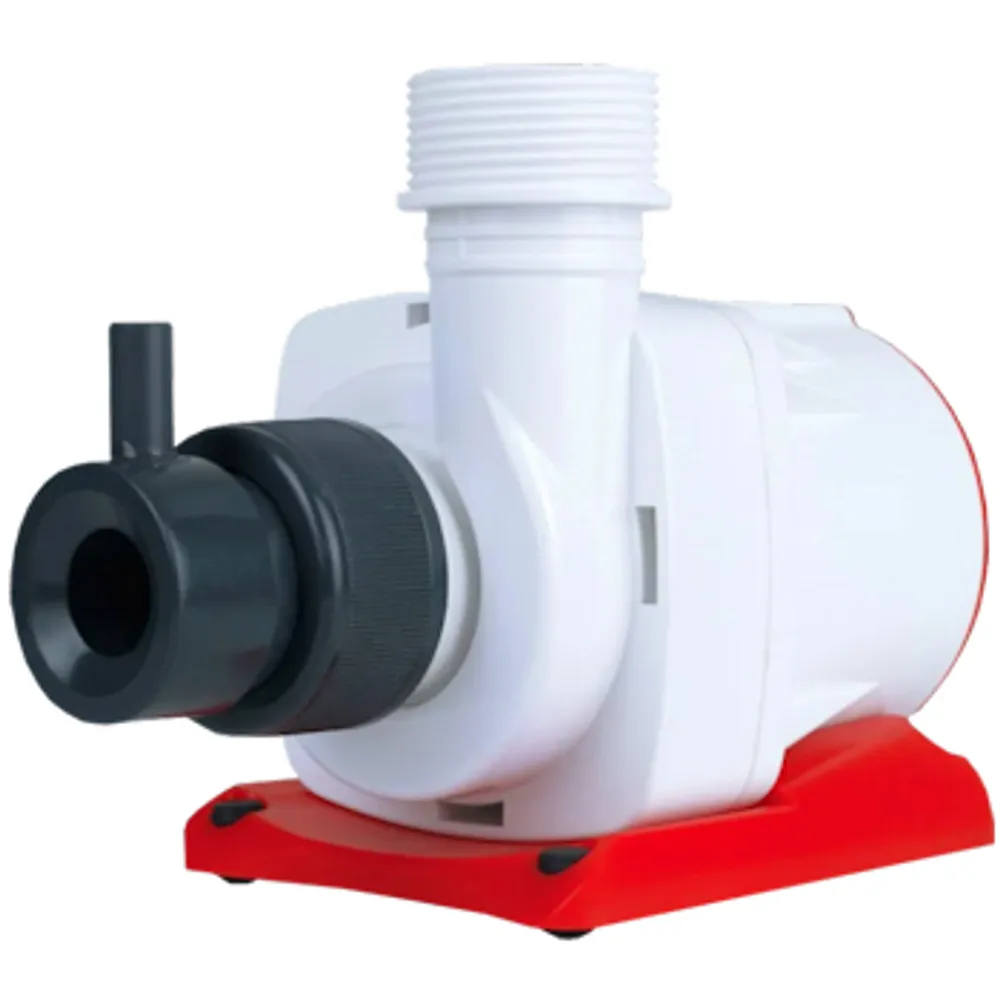

Reef Octopus Varios 4-S DC Skimmer Pump

Reef Octopus Varios 4-S DC Skimmer Pump

• APEX Ready
• Efficiency: 24V / 40watts
• Dimensions: 4.75in(W) x 5.7in(L) x 4in(H)
• Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller
• Replacement pump for Reef Octopus Skimmer: Classic 200int, XS200, Diablo DCS 170int, SRO-2000ext, XP2000ext, SRO-3000int/ext, XP3000ext, DCS 200int, RDCS 200ext*
• MAX FLOW: 422GPH
• MAX AIR: 1500 L/H (52 SCFH)*

Safe and Efficient 24V Operation

• 5 Controllable Energy Saving Power Settings
• Detachable Controller with Waterproof Union
• Safety Float Switch
• 0-10v Input for 3rd Party Controller
• Integrated Memory
• Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.
• Super Quiet Operation
• True Slow Startup
• Submersible or External Applications

Reef Octopus Varios 4-S DC Skimmer Pump

• APEX Ready
• Efficiency: 24V / 40watts
• Dimensions: 4.75in(W) x 5.7in(L) x 4in(H)
• Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller
• Replacement pump for Reef Octopus Skimmer: Classic 200int, XS200, Diablo DCS 170int, SRO-2000ext, XP2000ext, SRO-3000int/ext, XP3000ext, DCS 200int, RDCS 200ext*
• MAX FLOW: 422GPH
• MAX AIR: 1500 L/H (52 SCFH)*

Safe and Efficient 24V Operation

• 5 Controllable Energy Saving Power Settings
• Detachable Controller with Waterproof Union
• Safety Float Switch
• 0-10v Input for 3rd Party Controller
• Integrated Memory
• Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals.
• Super Quiet Operation
• True Slow Startup
• Submersible or External Applications

ADVANCED CONTROL SKIMMER PUMP

The Reef Octopus controllable Direct Current “DC” pinwheel skimmer pumps are the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyist are alternating current “AC” pumps (the type of power that comes out of your wall outlet). Direct current pumps have several key advantages over traditional AC pumps. Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer. Now the user can have the skimmer process more or less water just by the push of a button!!!

REFINED CONTROL

In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:

1. A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
2. Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.
3. And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.

The pump and controller are connected via a waterproof 3-conductor union. The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump‘s output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.

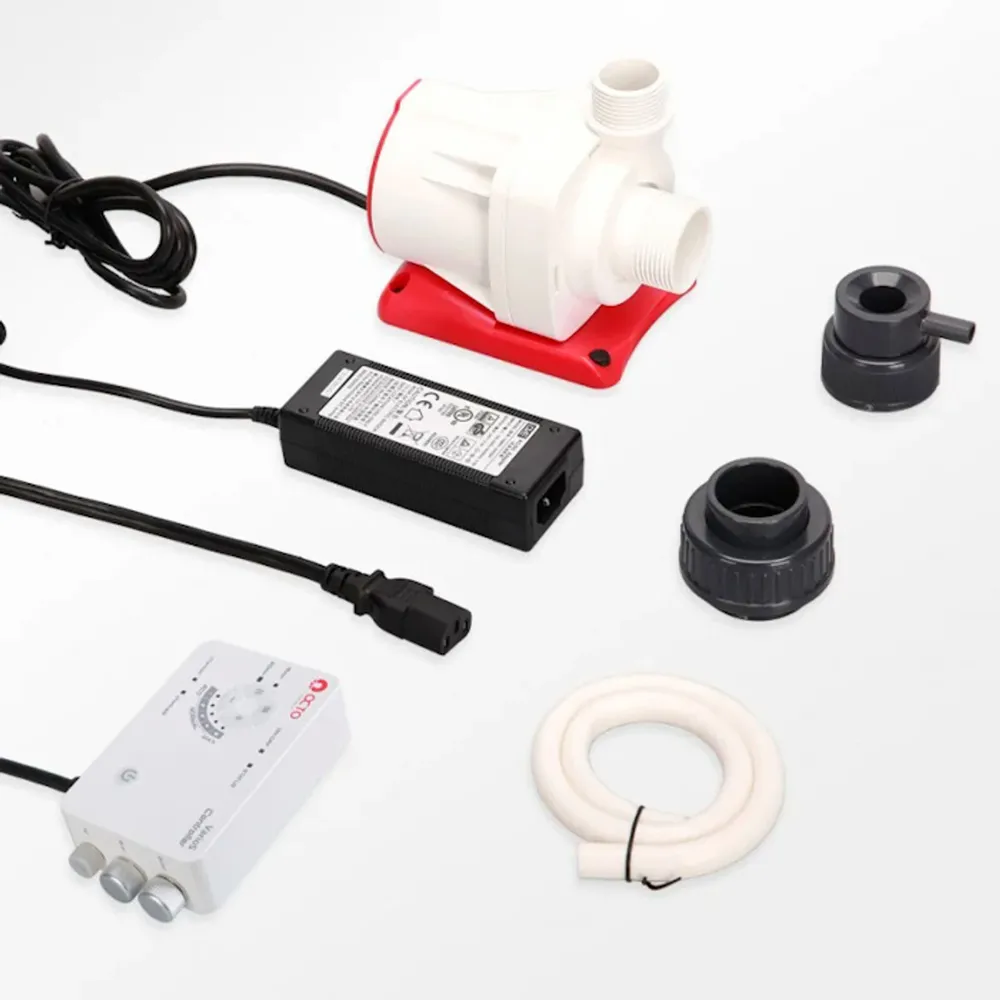

Includes a VarioS 4S pump, VarioS controller, power supply, venturi, airline and 1in output union.

REPLACEMENT PUMP FOR

Classic 200int, XS200, Diablo DCS 170int, SRO-2000ext, XP2000ext, SRO-3000int/ext, XP3000ext, DCS 200int, RDCS 200ext(special PVC volute is required)

*There is an addition part needed to convert the pump to the skimmer body for some models that must be requested at the time of purchase due to the added cost of the part.

VarioS-4S Skimmer Pump Specs

Output size: 1in male
Inlet size: 1.25in male
Dimensions: 4.75in(W) x 5.7in(L) x 4in(H)

Output union size: 32mm
Voltage: DC 24V
Power Consumption: 40w watts at max power
Max Air Draw: 1500 L/H (52 SCFH)*

*Air and water results will vary depending on aquarium setup

Warranty

– 2 year coverage on pump/1 year on rotor

Reef Octopus can not be responsible for consequential damages arising from installation or use of this product. Reef Octopus warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase. CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.

NOTE:This warranty is void if the product is damaged through abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair. This warranty is valid only in North America and is non-transferable. Consumable spare parts are not applicable to the warranty.
