Sediment Filters

Rusco Sediment Trapper Filter PE Screen Combo Style 1.5″

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: CF1-1/2-24ST-F

CATEGORY: Sediment Filters

Description

RUSCO’s Spin-Down Sediment Model Filters with polyester screens make solid particle removal simple and economical. The benefit of the Spin-Down filter is its ability to be cleaned and reused. The Spin-Down Sediment Filter has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
The unique design of the sediment trapper element allows debris to settle in the bottom of the clear cover, trapping sediment away from the screen. The new 1.5″ and 2″ models elements make it easy to convert a standard spin-down filter to a sediment trapper by simply replacing the element screens.
Features:

Combo style head allows you to choose from a vertical or horizontal outlet (cannot use both)
Includes 1.5″ slip to 1.25″ FPT bushing and 1.25″ MPT plug for the unused outlet
Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge Spin-Down type sediment separation
No down time!!

Rusco Sediment Trapper Filter PE Screen Combo Style 1.5″ Benefits:

No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required
Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010″), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Compatible with:

Vu-Flow

CF1.5SO-24P, CF1.5SO-30P, CF1.5SO-40P, CF1.5SO-60P, CF1.5SO-100P, CF1.5SO-140P, CF1.5SO-250P, CF1.5SO-500P, CF1.5SO-1000P

Specifications

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.1

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1-1/2″
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2″ Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
O-Rings	EPDM
Outlet Connection	1-1/2″ Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	10-50 GPM
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2″
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4″
Product Length	16-5/8″
Product Width	5-1/4″
Product Weight (lbs)	2.98

Product Information

SKUCF1-1/2-24ST-F
CategorySediment Filters

Rusco Sediment Trapper Filter PE Screen Combo Style 1.5″

Specifications

Product Information

Related products

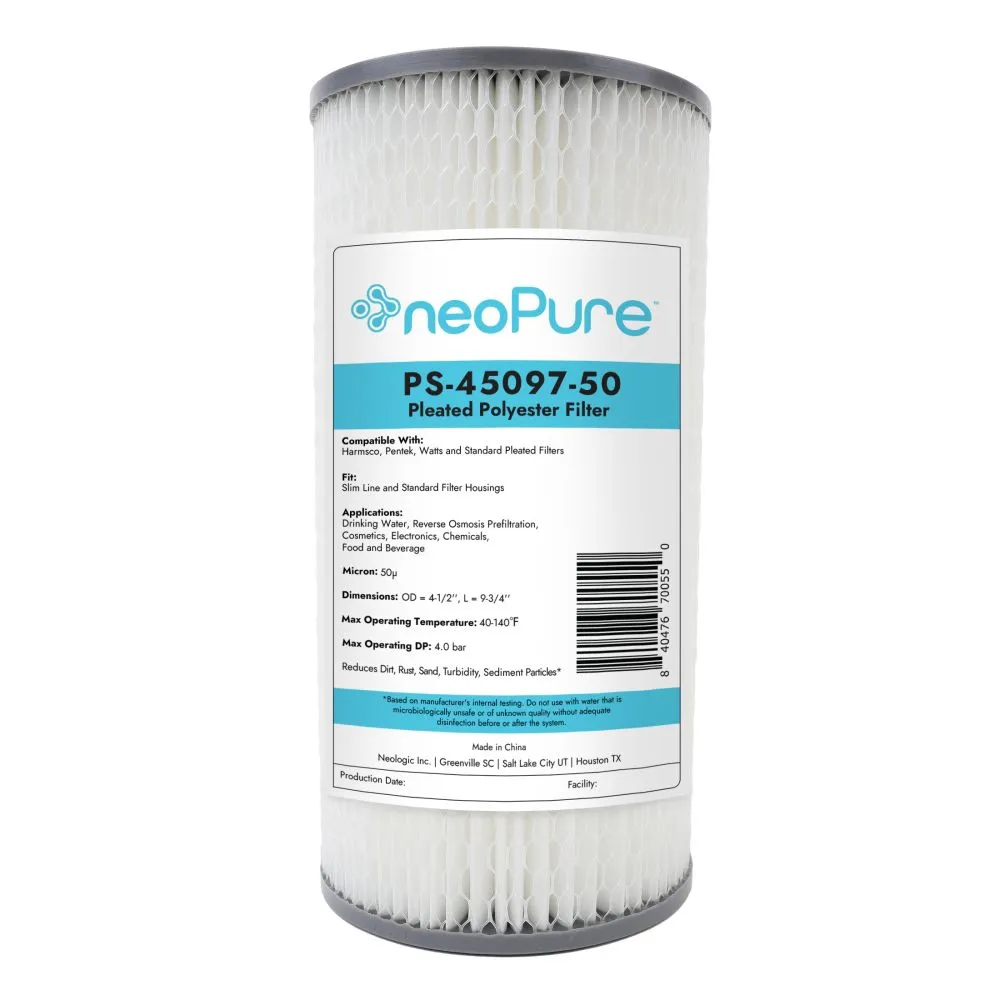

Neo-Pure PS-45097-50 9-3/4″ BB High Efficiency Pleated Filter 50 micron

IPW Industries Inc. Compatible to 9-7/8″ Purtrex Sediment Depth Filter – 5 Mic (PX05-9 7/8) 93023 – Pack of 4

Shelco 20″ x 4-1/2″, 5 Micron Wound Cartridge for High Temperature (Case Only)

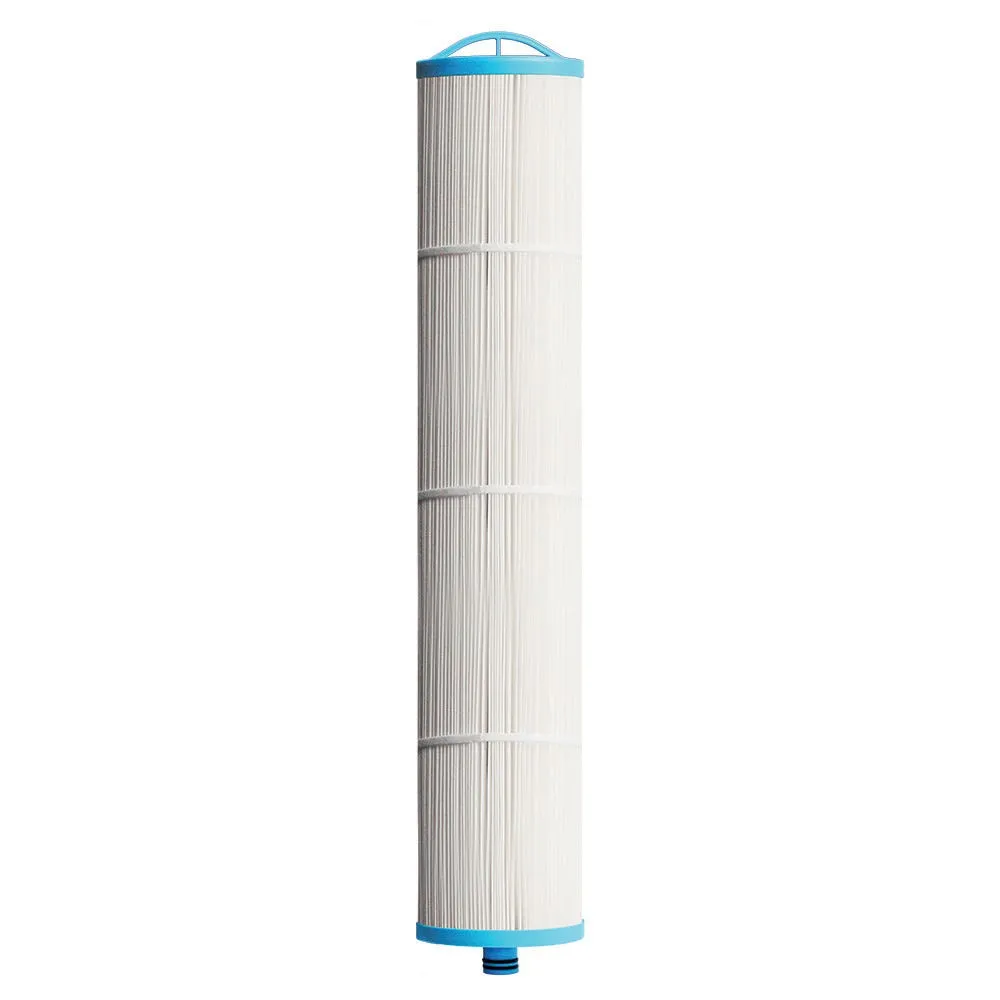

Neo-Pure PSJ-90-10 Pleated Synthetic Jumbo Cartridge 10 micron
