Standard Filter Housings

Shelco CSF-80 Single Cartridge Filter Housing with Ring Nut Closure

🚚 Free Shipping over $39

✓ Premium Quality

🔒 Secure Payments

↻ Money Back Guarantee

SKU: CSF-806-222

CATEGORY: Standard Filter Housings

Description

Shelco CSF-80 Series Stainless Steel Single Cartridge Filter Housings with Ring Nut Closure accept a single 19-1/2″-20″ SOE cartridge and can have flow rates up to 14 gpm. The ring nut closure allows quick change-outs and secure sealing.
Features:

Designed for high purity commercial or industrial filter applications
Heavy-duty 316L stainless steel construction from maximum durability
Electro-polished sump suitable for a wide range of process requirements
Ring nut closure for quick, easy change-outs and secure sealing
Accepts 19-1/2″ to 20″ SOE cartridges with 222 or 226 style connectors
Flow rates up to 14 gallons per minute
Inlet/Outlet: 3/4″ – 1″ FPT
Includes mounting bracket kit and rod for opening and closing

Applications:

Coolants
Chemicals
Electronics
Food and Beverage
Oil and Gas
Paints, Inks, and Coatings
Paper and Pulp
Water

NOTE: Standard option CSF series housings are stocked and available for immediate shipment. Customized housings require a 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.

Specifications

Product Details
Closure Type	Ring Nut
Drain Size	1/4″ MPT
Gaskets	Buna-N (FDA grade)
Housing Material	316 Stainless Steel
Inlet Connection	3/4″ FPT 1″ FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
O-Rings	Buna-N
Outlet Connection	3/4″ FPT,1″ FPT
Size	3/4″ 1″
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Product Weight & Dimensions
Product Height	27-7/16″
Product Weight (lbs)	9

Product Details
Closure Type	Ring Nut
Drain Size	1/4″ MPT
Gaskets	Buna-N (FDA grade)
Housing Material	316 Stainless Steel
Inlet Connection	3/4″ FPT 1″ FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
O-Rings	Buna-N
Outlet Connection	3/4″ FPT,1″ FPT
Size	3/4″ 1″
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Product Weight & Dimensions
Product Height	27-7/16″
Product Weight (lbs)	9

Product Details
Closure Type	Ring Nut
Drain Size	1/4″ MPT
Gaskets	Buna-N (FDA grade)
Housing Material	316 Stainless Steel
Inlet Connection	3/4″ FPT 1″ FPT
Material Of Construction	316 Stainless Steel
Max Flow Rate	14 GPM
Max Pressure (Psi)	300
O-Rings	Buna-N
Outlet Connection	3/4″ FPT,1″ FPT
Size	3/4″ 1″
Cap Material	316 Stainless Steel
Color / Finish	Stainless Steel
Connection Type	Female (FPT)
Origin	U.S.A.
Product Weight & Dimensions
Product Height	27-7/16″
Product Weight (lbs)	9

Product Information

SKUCSF-806-222
CategoryStandard Filter Housings

Shelco CSF-80 Single Cartridge Filter Housing with Ring Nut Closure

Specifications

Product Information

Related products

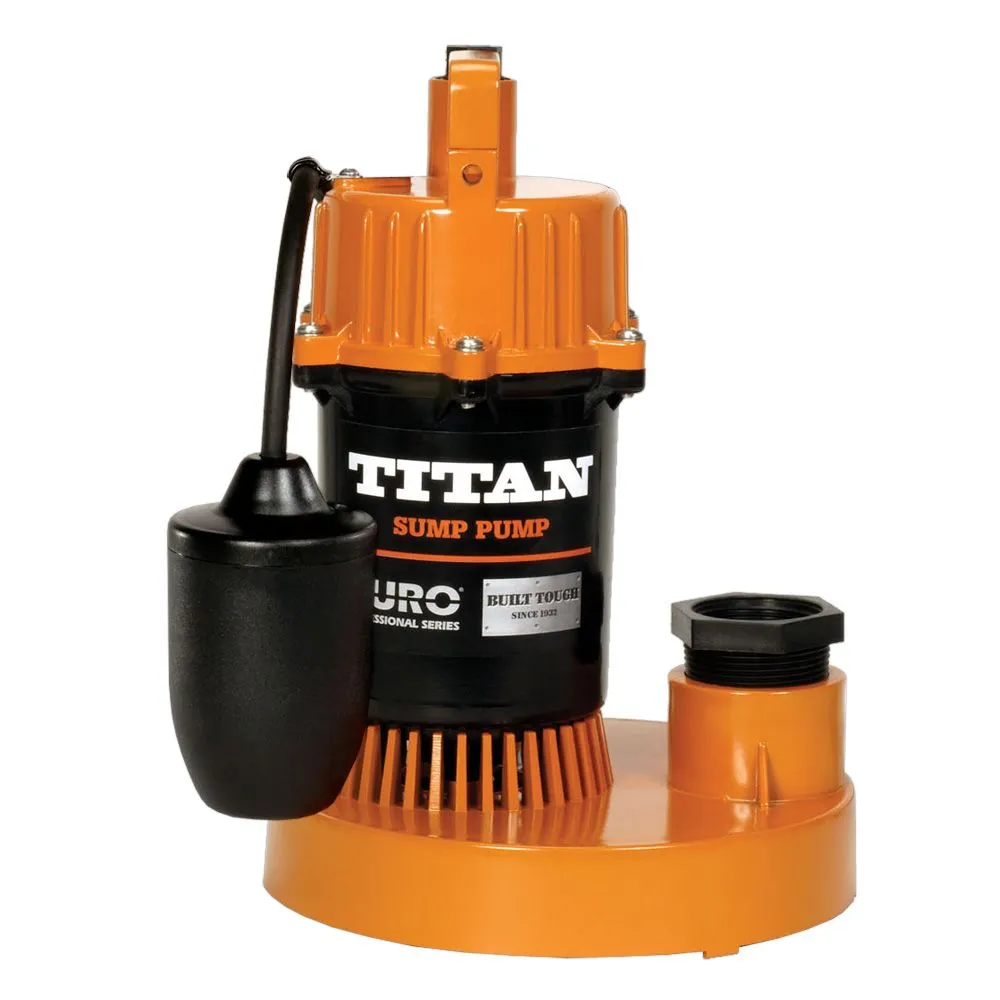

Titan Basement Submersible Sump Pump 1/2 HP – Tethered Float

Neo-Pure SBJ40 Jumbo Filter Housing with Swing Bolts

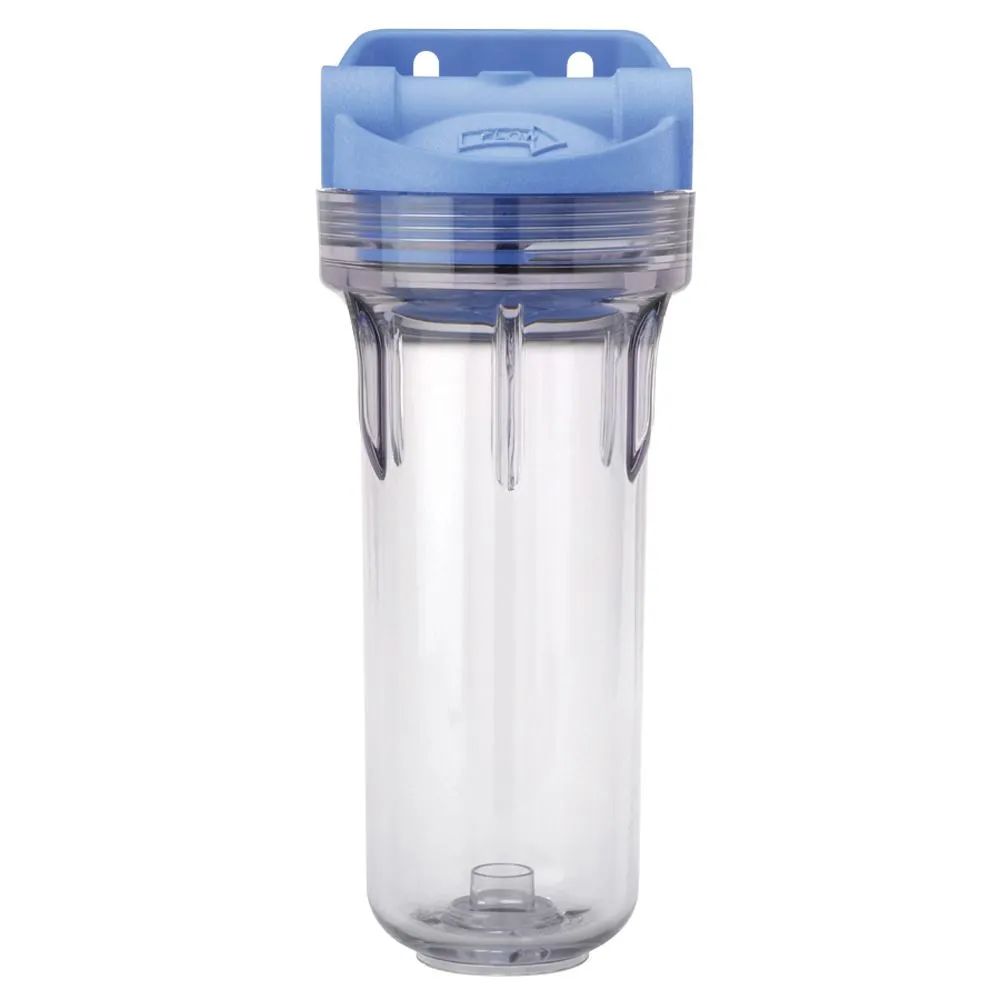

Pentek 150570 10″ 3G Standard Filter Housing Blue/Clear IB No PR
